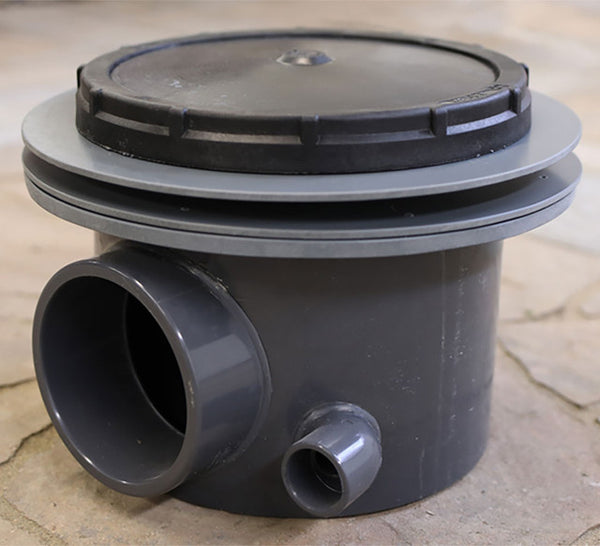

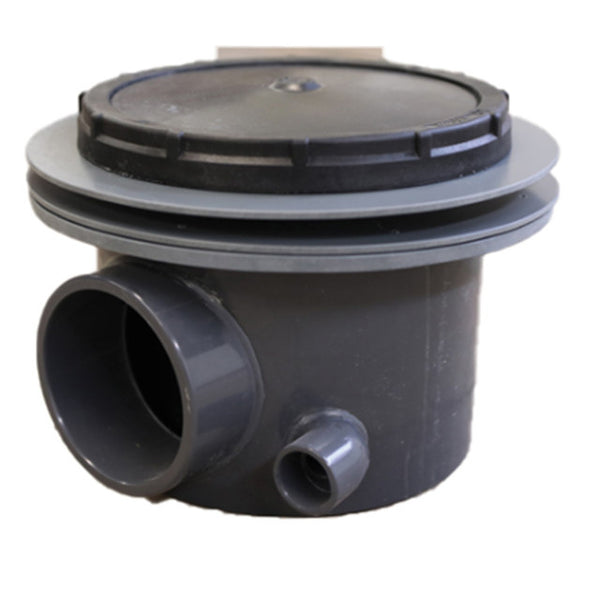

Evolution Aqua 4-Inch Aerating Bottom Drain Evolution Aqua 4-Inch Aerating Bottom Drain Upgrade your pond’s water circulation with Evolution Aqua's 4-Inch Aerating Bottom Drain. Crafted from robust, thick-walled Schedule 80 PVC, this drain is designed for both functionality and aesthetic appeal. Its innovative design features a 4-inch horizontal pipe inlet paired with a 1-inch side-mounted aeration pipe, making installation straightforward and customizable. Simply measure, cut your tubing to size, and install—the result is a bottom drain that not only performs flawlessly but also adds a unique visual element to your water garden. Product Features Durable Construction: Molded from heavy-duty Schedule 80 PVC for long-lasting performance. Easy Installation: Designed with a 4-inch horizontal pipe inlet and a 1-inch aeration inlet for simple setup. Adjustable Standpipe: Features a central standpipe that threads to the underside of the aeration plate and can be adjusted and glued to the bottom drain base. Aesthetic Appeal: Once installed, this bottom drain enhances both the functionality and the look of your pond. Technical Specifications Parameter Specification Overall Dimensions 14" Diameter x 10.5" High Excavation Requirements Approximately 15" Diameter x 8" Deep Required Air Flow* 1.5 - 3.5 CFM *Aerator not included. Box Contents Sch 80 PVC Base Liner Ring Heavy Duty Aeration Disc Center Stand Pipe Stainless Steel Hardware Features: 4-Inch Horizontal Pipe Inlet and 1-Inch Aeration Inlet Experience efficient water circulation and an enhanced pond aesthetic with the Evolution Aqua 4-Inch Aerating Bottom Drain—a perfect addition to any water garden.

Evolution Aqua Surge Filter – Ultimate UV & Air Clean Technology Evolution Aqua Surge Filter Introducing the Evolution Aqua Surge Filter – an innovative, external UV pond filter that combines patented Air Clean Technology with advanced K+Media to deliver crystal clear water to your koi pond. Engineered for pump-fed systems in ponds up to 1,320 gallons, the Surge Filter not only clears green water and algae but also efficiently dislodges and flushes waste, leaving you with a pristine water feature and more time to enjoy your surroundings. Key Features Patented Air Clean Technology: Uses a unique air and water mixing process to agitate open-cell K+Media and dislodge trapped debris without the mess of traditional sponge filters. Built-In UV Clarification: Integrated 18-Watt UVC bulb helps eliminate green water and algae, ensuring a vibrant, healthy pond environment. Compact & Space-Saving: Its streamlined design makes it ideal for installations where space is at a premium. Complete Installation Kit: Comes with mounting brackets, stepped hosetail fittings (0.75", 1", and 1.25"), ball valves, and a clear drain hose so you can easily monitor wastewater flow during cleaning cycles. Virtually Maintenance Free: With a self-cleaning process that leaves your hands dry, the Surge Filter minimizes routine upkeep. How It Works Water is drawn from your pond by a submersible pump and delivered to the Surge Filter. Inside the filter, a built-in UV clarifier works to neutralize green water and algae. Simultaneously, air is drawn into the unit where it mixes with the water, causing the advanced open-cell K+Media to move chaotically. This agitation dislodges accumulated waste from the media, which then exits through the waste line at the bottom, returning clean water to your pond. No more messy cleaning with sponges or foams – simply operate the ball valves to initiate a cleaning cycle, and watch as the filter self-cleans while your pond continues to run clear. Technical Specifications Parameter Specification Application Out of Pond – Pump Fed Approximate Dimensions 9.5"W x 11"L x 35"H Maximum Pond Size 1,320 Gallons (5,000 Litres) Optimum Flow Rate 660 GPH Maximum Flow Rate 925 GPH Included Media K+Media 1.19 Gallons (4.5 Litres) Included UVC Bulb 18-Watt UVC* Inlet/Outlet Sizes 0.75", 1", 1.25" Waste Outlet 1" Water Volume in Filter 5 Gallons (19 Litres) Recommended Flexible Hose 0.75", 1", 1.25" PVC or Kink-Free Tubing Recommended Pump (Not Included) SolidFlo 1,250 GPH Pump Optimal Tubing Size (Not Included) 1.25" Flexible Tubing Warranty 2-Year *Please note: The quartz sleeve and UV bulb are not covered under the manufacturer’s warranty. We recommend replacing the UV bulb annually for optimum performance. What's in the Box? Surge Filter pre-filled with 4.5 litres of K+Media 18-Watt UVC Bulb, quartz sleeve, ballast, and cable (1) 1" Black Threaded Hosetail with O-ring (inlet) (1) 1" Clear Threaded Hosetail with O-ring (outlet) Waste valve assembly (2) Mounting brackets 19.7" long 1" Clear PVC hose for waste (1) Threaded elbow and flat washer for waste Tools & Installation Requirements Flexible Tubing and Hose Clamps (sizes: 3/4", 1", or 1.25") Submersible Pond Pump rated at 925 GPH or less Appropriate tools and fixings to securely mount the brackets to a wall or post Filter Installation The Surge Filter is designed for pump-fed setups. Install your submersible pump in the pond, slightly raised off the bottom, so that water is drawn from the pond and fed into the Surge Filter. Filtered water is then returned to the pond by gravity via a hose – either directly back to the pond or through a waterfall arrangement. For optimal performance, ensure the flow rate through the filter is around 660 GPH and do not exceed 925 GPH. Make sure you have sufficient flexible hose length to connect both the pump to the filter and the filter back to the pond. Once installed, simply turn on the pump to fill the filter with water. During normal operation, the inlet and outlet valves remain open and the waste valve is closed, while the UVC operates continuously to combat algae. When a cleaning cycle is initiated, the pump will shut off, the inlet and outlet valves will close, and the waste valve will open. Air will then agitate the K+Media to dislodge debris, which is expelled through the waste line. It is recommended to switch off the UVC if the filter remains empty for an extended period. The Evolution Aqua Surge Filter combines innovative air clean technology with effective UV treatment, advanced mechanical filtration, and user-friendly design to deliver crystal clear water in your pond. Enjoy effortless maintenance and reliable performance with this state-of-the-art filtration solution.

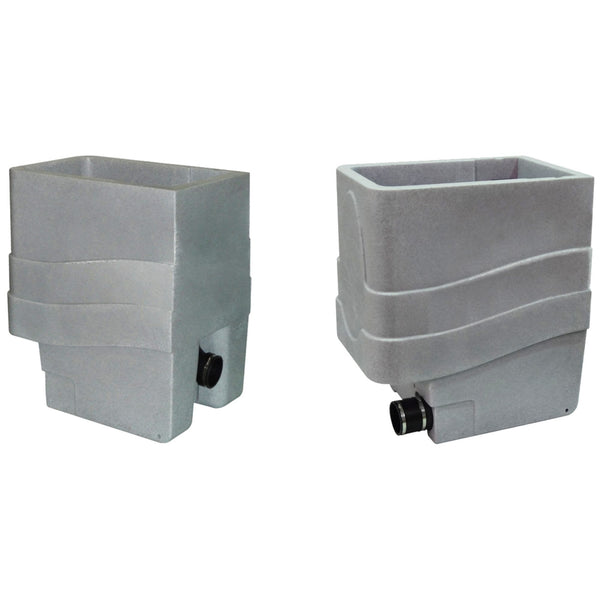

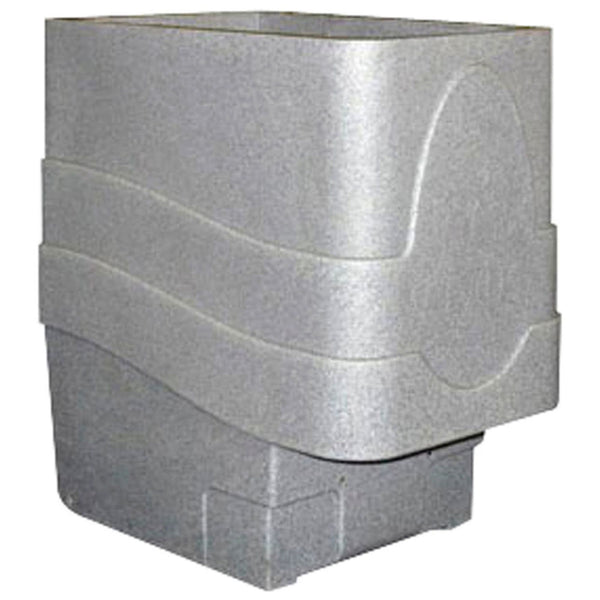

  Evolution Aqua Cetus Sieve Pre-Filter Enhance your pond’s filtration efficiency with the Evolution Aqua Cetus Sieve—a robust, rotationally molded, one-piece composite pre-filter designed with no weld joints for unmatched durability. Engineered to mechanically remove large amounts of pond waste and debris, the Cetus Sieve is perfect for both gravity-fed and pump-fed systems. While it is recommended for use with Evolution Aqua Nexus, Eazy Pod, and K+ Pressure Filters, its compatibility extends to all biological and pressurized filter systems. Additionally, the Cetus Sieve can be installed as a stand-alone unit or in conjunction with pond skimmers to effectively eliminate floating debris. Backed by a 2-year manufacturer warranty, this pre-filter is an essential component for maintaining a clean, healthy pond environment. Technical Specifications Parameter Specification Dimensions 33.9"L x 22.6"W x 37.2"H Maximum Flow 4,755 GPH Inlet for Gravity Fed 4-Inch Inlet for Pump Fed 1.5-Inch Outlet for Gravity Fed 1.5-Inch Outlet for Pump Fed 4-Inch Waste Outlet 3-Inch Bow Screen Size 300 Micron Warranty 2-Year How It Works The Evolution Aqua Cetus Sieve is a mechanical pre-filter that functions as a self-adjusting sieve to capture and remove heavy debris before water reaches your main filter system. Designed with a weir that automatically adapts to the flow in gravity-fed setups, it also features Evolution Aqua’s patented pond flow regulation technology, which adjusts the inlet height to ensure your pump always receives adequate water even if pond levels fluctuate. Water enters the unit through a bellows—a key component of Evolution Aqua’s pondflow technology—and passes through a 300-micron screen. Over time, waste accumulates on this screen; simply hose it off or open the waste port valve to clear the buildup. For a more thorough cleaning, the screen can be removed, ensuring that your pond maintains optimal biological activity and reduced maintenance demands. Upgrade your pond’s pre-filtration with the Evolution Aqua Cetus Sieve and enjoy enhanced water quality and lower overall maintenance, keeping your pond pristine and your aquatic life healthy.

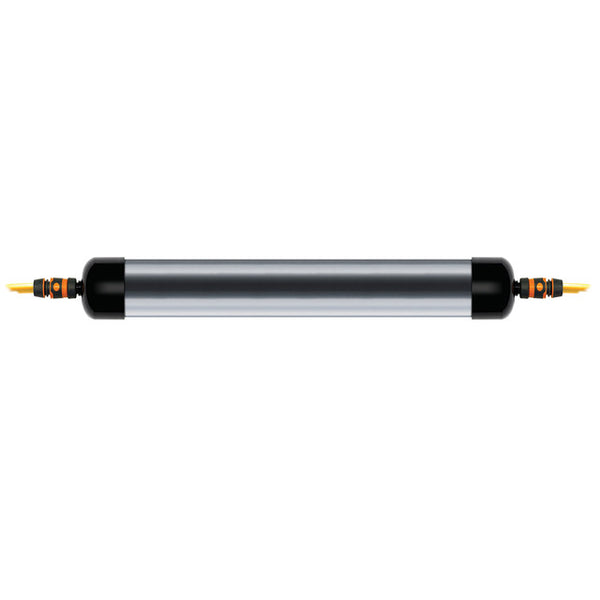

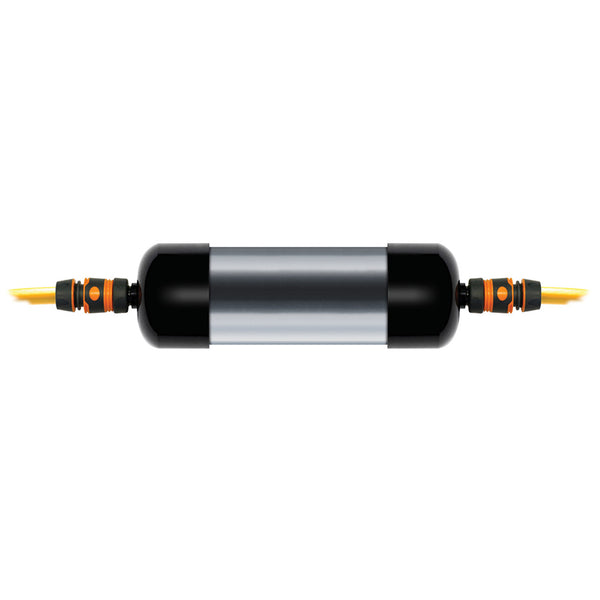

  Evolution Aqua Detox Dechlorinator Protect your prized koi and beloved pets from harmful chlorine and other toxins commonly found in tap water with the Evolution Aqua Detox Dechlorinator. Forget waiting for chlorine to “gas off” or using liquid additives—this dependable unit offers a more convenient and reliable solution when filling ponds or aquariums, or during partial water changes. Key Features Effective Toxin Removal: Utilizes high-grade activated carbon to remove chlorine, chloramine, bromine, malachite green, dyes, colors, humic acids, organic matter, proteins, antibiotics, hormones, and ozone. Versatile Installation: Easily connect to a garden hose or integrate into a rigid pipe system using standard fittings. Multiple Sizes: Available in two sizes—12-inch and 30-inch—to accommodate different water treatment needs. Simple Operation: Designed for outdoor use as part of a permanent top-up system for water garden ponds. Ease of Maintenance: Fully water-tight yet engineered for simple cleaning, access, and service. Technical Specifications Model Application Treatment Size Max Flow Rate Warranty Included Fittings 12-Inch Dechlorinator Water Conditioner, Dechlorinator Up to 59,500 Gallons 60 GPH 1-Year Standard Garden Hose Fittings 30-Inch Dechlorinator Water Conditioner, Dechlorinator Up to 146,500 Gallons 60 GPH 1-Year Standard Garden Hose Fittings *The activated carbon used in these units effectively removes chlorine, chloramine, bromine, malachite green, dyes, colors, humic acids, organic matter, proteins, antibiotics, hormones, and ozone. Installation & Operation Installation For optimal performance, install the Detox Dechlorinator vertically to ensure even water distribution. However, it can also be mounted horizontally if necessary. Both ends are designed to serve as either inlet or outlet points. Connection Options: Garden Hose: The unit comes supplied with connectors for a standard garden hose hookup. Rigid Pipe: For hard piping, attach a single 3/4" union (female threaded to plain female, not included) to each end and connect 3/4” pipe. Use PTFE tape for a water-tight seal. Before Operating Flush the unit thoroughly before initial use to remove any dust or loose carbon particles. Continue to flush until the water runs clear. Winter Storage Do not use the Detox Dechlorinator in freezing conditions. Drain the unit completely and store it vertically in a cool, dark, frost-free environment to prevent algae growth. Ensure that your pond or aquarium is filled with dechlorinated water to keep your aquatic life safe. With the Evolution Aqua Detox Dechlorinator, you can trust that every water change provides a clean, toxin-free environment for your fish and pets.

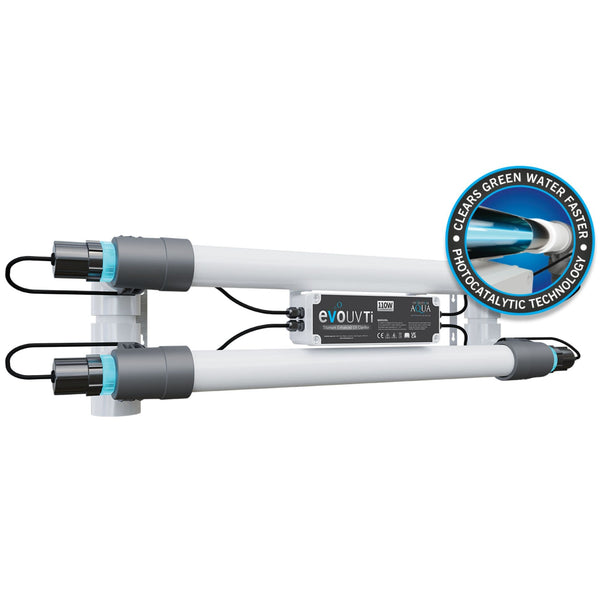

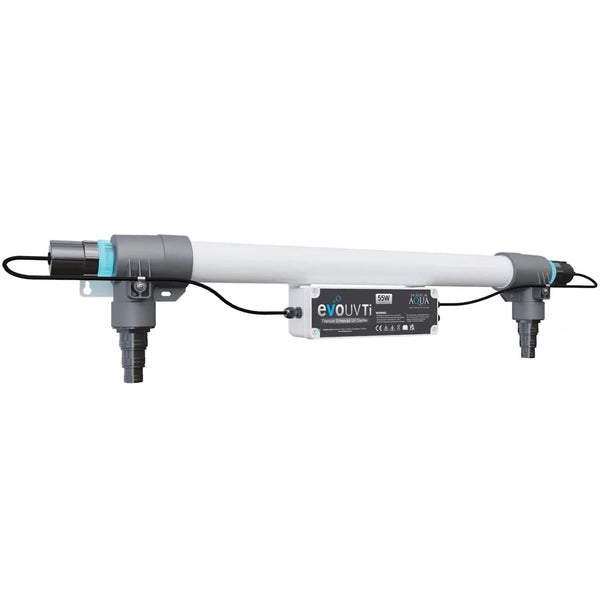

  Evolution Aqua evoUV Clarifier Green water in your pond can be a persistent issue, but with the Evolution Aqua evoUV Clarifier, achieving crystal-clear water is effortless. Designed to be economical, efficient, and easy to install, this UV clarifier is perfect for both new and existing water features. Its fully water-tight construction ensures durability, yet the unit is engineered for straightforward maintenance and serviceability—ideal for both residential and commercial applications. Available in five sizes, the evoUV Clarifier is tailored to suit ponds of various capacities, ensuring you get the right fit for your water garden. Each unit is backed by a 2-year warranty, so you can enjoy peace of mind along with pristine water. How It Works The evoUV Clarifier houses an ultraviolet light bulb inside a sealed quartz sleeve. As pond water flows through the unit, the UV light targets and destroys the DNA of single-celled algae. Once the algae are neutralized, they clump together, making them easier for your pond’s filtration system to remove. This process dramatically improves water clarity and reduces the green tint in your pond. Maintenance Guidelines To maintain peak performance, it’s essential to periodically clean the quartz sleeve. Over time, dirt and mineral deposits can accumulate on the surface, diminishing the UV light’s effectiveness. We recommend using a mild acid, such as white vinegar, or a specialized cleaner (for example, Airmax Fountain Aeration Cleaner) along with a soft-bristled brush or sponge. Rinse thoroughly before reassembling the unit. The included UV bulb is rated for approximately 9,000 hours. For continuous operation during spring and summer, replacing the bulb annually is advised. Technical Specifications Model Application Dimensions Max Pond Size Max Flow Rate Inlet/Outlet Included Fittings* Replacement UV Bulb Power Cord Length Warranty EVO15 UV In-Line, Out of Water 21.25"L x 4.5"W x 6"H Up to 4,000 Gallons 1,800 GPH 1.5" FPT 3/4 to 1-1/2" Barb 15 Watt 7' 2-Year EVO25 UV In-Line, Out of Water 21.25"L x 4.5"W x 6"H Up to 5,300 Gallons 2,500 GPH 1.5" FPT 3/4 to 1-1/2" Barb 25 Watt 7' 2-Year EVO30 UV In-Line, Out of Water 38.9"L x 3.35"W x 6"H Up to 7,900 Gallons 3,500 GPH 1.5" FPT 3/4 to 1-1/2" Barb 30 Watt 7' 2-Year EVO55 UV In-Line, Out of Water 38.9"L x 3.35"W x 6"H Up to 14,500 Gallons 5,000 GPH 1.5" FPT 3/4 to 1-1/2" Barb 55 Watt 7' 2-Year EVO110 UV In-Line, Out of Water 38.9"L x 7.7"W x 11"H Up to 19,500 Gallons 6,000 GPH 2" Not Supplied† 2 x 55 Watt 7' 2-Year *For the 15, 25, 30, and 55 Watt models: Step-down barbed fittings with a 1.5" male thread are included. Use a PVC Male Threaded Adapter or glue a 2" fitting over the top of the inlet/outlet to connect to 2" pipe as needed. For the 110 Watt model, a 2" pressure pipe can be glued directly into the inlet/outlet. Let the Evolution Aqua evoUV Clarifier transform your pond into a crystal clear oasis. With its advanced UV technology and user-friendly design, achieving pristine water quality has never been easier.

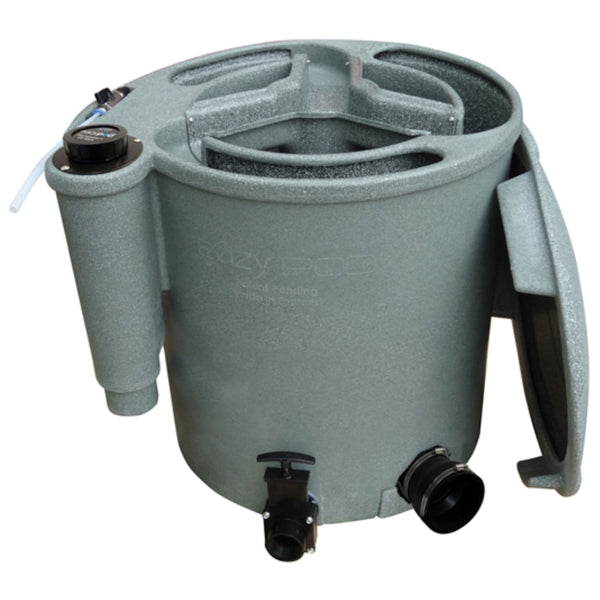

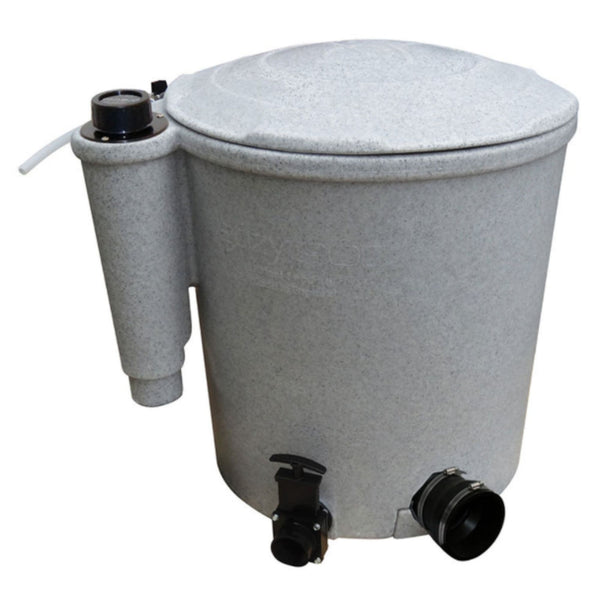

  Evolution Aqua EazyPod Gravity Pond Filter System Simplify your pond care with the Evolution Aqua EazyPod—a straightforward, gravity-fed filter system that combines mechanical and biological filtration to keep ponds up to 2,640 gallons sparkling clean. Derived from the renowned Nexus family of filters, the EazyPod utilizes advanced K1 Micro media to boost biological filtration. Even when used solely as a mechanical waste filter, it delivers enhanced performance and clarity. Choose from three models to suit your setup: the standard EazyPod, the EazyPodAir (which includes a pump kit), and the all-inclusive EazyPod Complete that features mechanical, biological, and 18-Watt ultraviolet (UV) filtration. All models come in a sleek granite grey finish and are backed by a 2-year warranty. Technical Specifications Model Application Filter Type Maximum Pond Size Dimensions Max Feed Rate (g/day) Volume Held Recommended Flow Includes Air Pump Includes UV Color Warranty EazyPod Out of Pond Gravity Fed 2,640 Gallons 28"L x 22.8"W x 25.8"H 100 - 125 21 Gallons 1,320 GPH No No Granite Grey 2-Year EazyPodAir Out of Pond Gravity Fed 2,640 Gallons 28"L x 22.8"W x 25.8"H 100 - 125 21 Gallons 1,320 GPH Yes No Granite Grey 2-Year EazyPod Complete Out of Pond Gravity Fed 2,640 Gallons 28"L x 22.8"W x 25.8"H 100 - 125 21 Gallons 1,320 GPH Yes Yes (18 Watt) Granite Grey 2-Year Please note: The EazyPod, EazyPodAir, and EazyPod Complete share the same core filter system. The EazyPodAir and EazyPod Complete models include a pump kit, while only the EazyPod is offered without one. The EazyPod Complete is the only version that includes a UV filter. How It Works Pond water enters the filter through an inlet. If your system includes the 18-Watt UV-C (EazyPod Complete), the water passes by the UV bulb first to help eliminate algae before moving on. Next, a stainless steel grill mechanically removes larger solids as the water flows into the outer chamber. Finer particles are then captured by 18 liters of K1 Micro beads in the center chamber, where beneficial bacteria and biofilms work to biologically polish the water. Clean, clear water exits through the return line and flows back into your pond. During the cleaning cycle, the integrated air pump (included with EazyPodAir and EazyPod Complete) agitates the media, dislodging debris buildup for an efficient, automated backwash. For those seeking even more convenience, the optional EazyPod Automatic upgrade provides a self-cleaning function. Installation Guide Pump-Fed Setup In a pump-fed installation, a submerged pump directs water into the filter, and after processing, the water returns to the pond by gravity via tubing, a waterfall, or a spillway box. All three models are suitable for this configuration. Gravity-Fed Setup For gravity-fed installations, the filter is placed at the same level as your pond. Note that only the EazyPod and EazyPodAir models can be installed in a gravity-fed configuration. Maintenance The EazyPod is designed for simplicity. In addition to routine backwashing based on your pond's nutrient load, you should periodically inspect the UV quartz sleeve (if applicable) for buildup and replace the UV bulb annually to maintain optimal performance. Experience the ease of maintenance and exceptional water clarity with the Evolution Aqua EazyPod Gravity Pond Filter System – the smart, efficient solution for your koi pond.

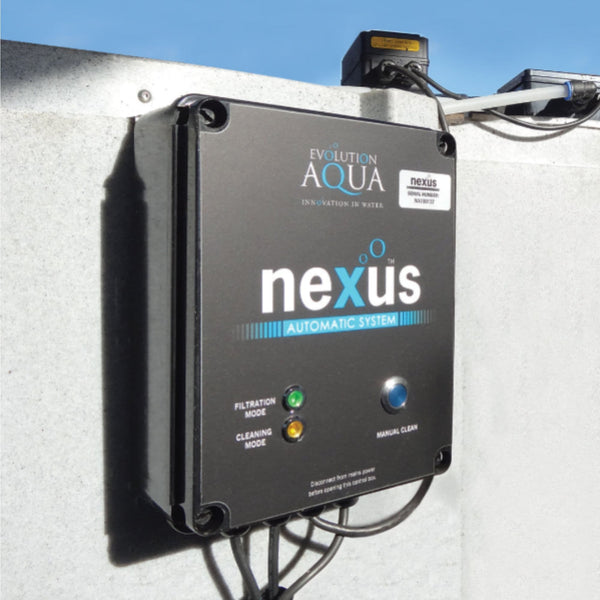

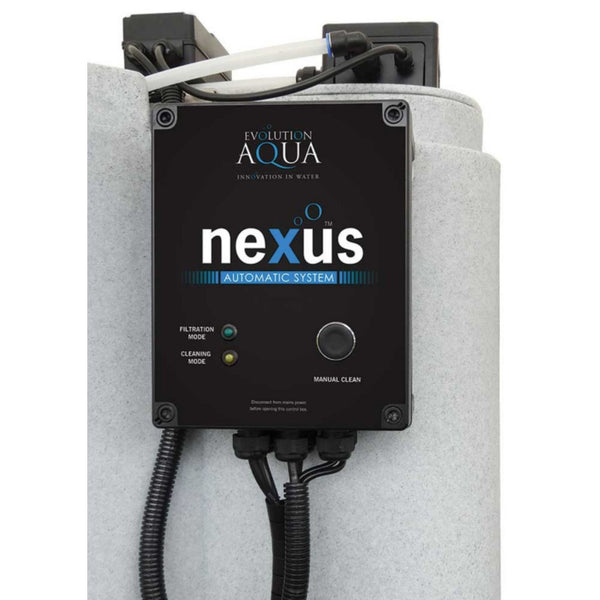

  Nexus Automatic – Fully Automated Cleaning for Your Nexus Filters Simplify your pond maintenance with the Nexus Automatic upgrade. Designed to fully automate the cleaning cycle of your Nexus or Nexus+ Filter, this system allows you to set a programmable timer to control cleaning intervals based on your pond's conditions and fish load. Factory preset to activate every 3 days for a 10-minute cleaning cycle, it is available in both gravity-fed and pump-fed versions for models manufactured after 2006. Optimized for Effortless Maintenance Regular backflushing of Nexus filters can be a time-consuming chore, requiring you to be at the pond to operate ball valves and pumps manually. The Nexus Automatic upgrade takes care of these functions automatically, ensuring that your filter remains clean without constant supervision. For ponds with fish, it is recommended to exchange about 10% of the pond water weekly to maintain optimal water quality. Each unit comes with a 1-year manufacturer warranty. When to Use This upgrade kit is ideal for owners of Nexus 300, 310, or 320 and Nexus 200, 210, or 220 filters (manufactured after 2006) who want the convenience of programmable cleaning cycles. With the Nexus Automatic, the entire cleaning process—from shutting off the pump to activating the waste valve and backflushing—is handled mechanically. How It Works – Pump-Fed Setup In a pump-fed configuration, the programmable timer triggers the cleaning cycle by switching off the circulating pump and allowing the water level within the filter to equalize. Air, normally diverted to the outer bio-chamber, is rerouted to the center chamber (or Eazy filter) to agitate and clean the filter media. Once the media is thoroughly cleaned, the automated waste valve opens to drain the debris. After the valve closes, the air flow is restored to the outer chamber and the pump restarts, returning the filter to normal operation. Note that since water is lost during cleaning, replenishment of pond water is necessary. How It Works – Gravity-Fed Setup For gravity-fed installations, the process begins similarly with the timer shutting off the pump to equalize the water level. The inlet valve then closes and directs air to the center of the filter to clean the Eazy filter media. The waste valve opens to remove accumulated debris, and once the Eazy chamber is drained, the inlet valve reopens for a final flush. With the waste valve closing and air redirected back to the bio-chamber, the pump resumes, and normal filtration continues. As with pump-fed systems, water lost during the cleaning cycle must be replenished. Kit Includes Non-Return Valve Automated Waste Valve Control Box Air Valve Control Box and Fittings Fixing Kit Section of Air Line Extension Cable Conduit (For Gravity-Fed setups: Inlet Valve Assembly and Seal) Upgrade your Nexus filtration system with the Nexus Automatic for a truly hassle-free pond maintenance experience. Enjoy cleaner water and more time to relax, knowing that your filter is self-maintaining on your schedule.

  Evolution Aqua EazyPod Automatic Gravity Pond Filter Tired of getting your hands dirty cleaning filter pads or being tied to your pond for maintenance? The Evolution Aqua EazyPod Automatic Gravity Pond Filter offers a cutting-edge, self-cleaning solution designed for ponds up to 2,640 gallons. This innovative filter combines both mechanical and biological filtration to deliver crystal-clear water while automating the cleaning process – even when you’re not around. Smart, Automated Filtration Equipped with a programmable control box featuring a built-in timer, the EazyPod automatically initiates cleaning cycles to keep your pond water pristine. The electronic connector within the control box manages the waste valve, air pump, and submersible pump (pump not included), ensuring seamless operation. Automated cleaning cycles via a programmable timer Integrated control of waste valve, air pump, and submersible pump Optional UV unit available to combat planktonic algae and green water Advanced Filtration Media Utilizing 18 liters of award-winning K1 Micro media, the EazyPod excels at both mechanical and biological filtration. The specially designed media traps debris and nurtures beneficial bacteria, ensuring fast filter maturation and superior water clarity. Available Models Model Application Filter Type Maximum Pond Size Dimensions Optimum Flow Volume Held Includes Color Voltage Warranty EazyPodAuto Out of Pond Gravity Fed 2,640 Gallons 29"L x 24.4"W x 25.8"H 1,320 GPH 21 Gallons Integrated Air Pump Granite Grey 115V 1-Year EazyPodAutoUV Out of Pond Gravity Fed 2,640 Gallons 29"L x 24.4"W x 25.8"H 1,320 GPH 21 Gallons Integrated Air Pump, 18-Watt UV Granite Grey 115V 1-Year How It Works Water enters the filter through the inlet and passes by the ultraviolet bulb (on the UV model), which helps reduce green water by eliminating single-celled algae. The water then flows into the outer chamber before moving into the inner chamber through a stainless steel screen. This screen, featuring specialized perforations, creates a dynamic flow that promotes both upward and downward movement, encouraging debris to settle in the outer chamber while the inner chamber and K1 Micro media capture smaller particles and biologically polish the water. Clean water then exits through the return outlet. Installation Guide The EazyPod Automatic is designed for pump-fed installations only. In this configuration, a submerged pump directs water to the filter, and after filtration, the clean water returns to the pond by gravity via tubing, a waterfall, or a spillway box. Its automated cleaning cycle – factory set for every 3 days and adjustable as needed – ensures hassle-free operation. Maintenance In addition to the automated cleaning cycles, regular maintenance involves checking the UV quartz sleeve for buildup and replacing the UV bulb annually. This simple upkeep routine keeps your system operating at peak performance, ensuring your pond remains clean and vibrant. Embrace a cleaner, more convenient pond care experience with the Evolution Aqua EazyPod Automatic Gravity Pond Filter – the smart choice for maintaining clear, healthy water without the hassle.

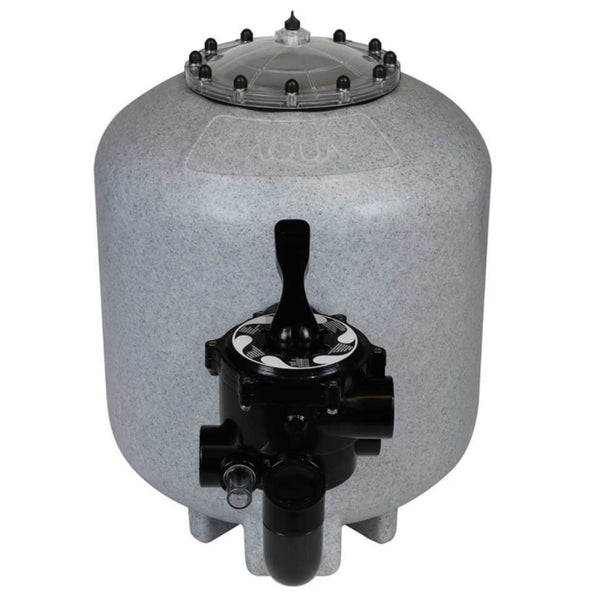

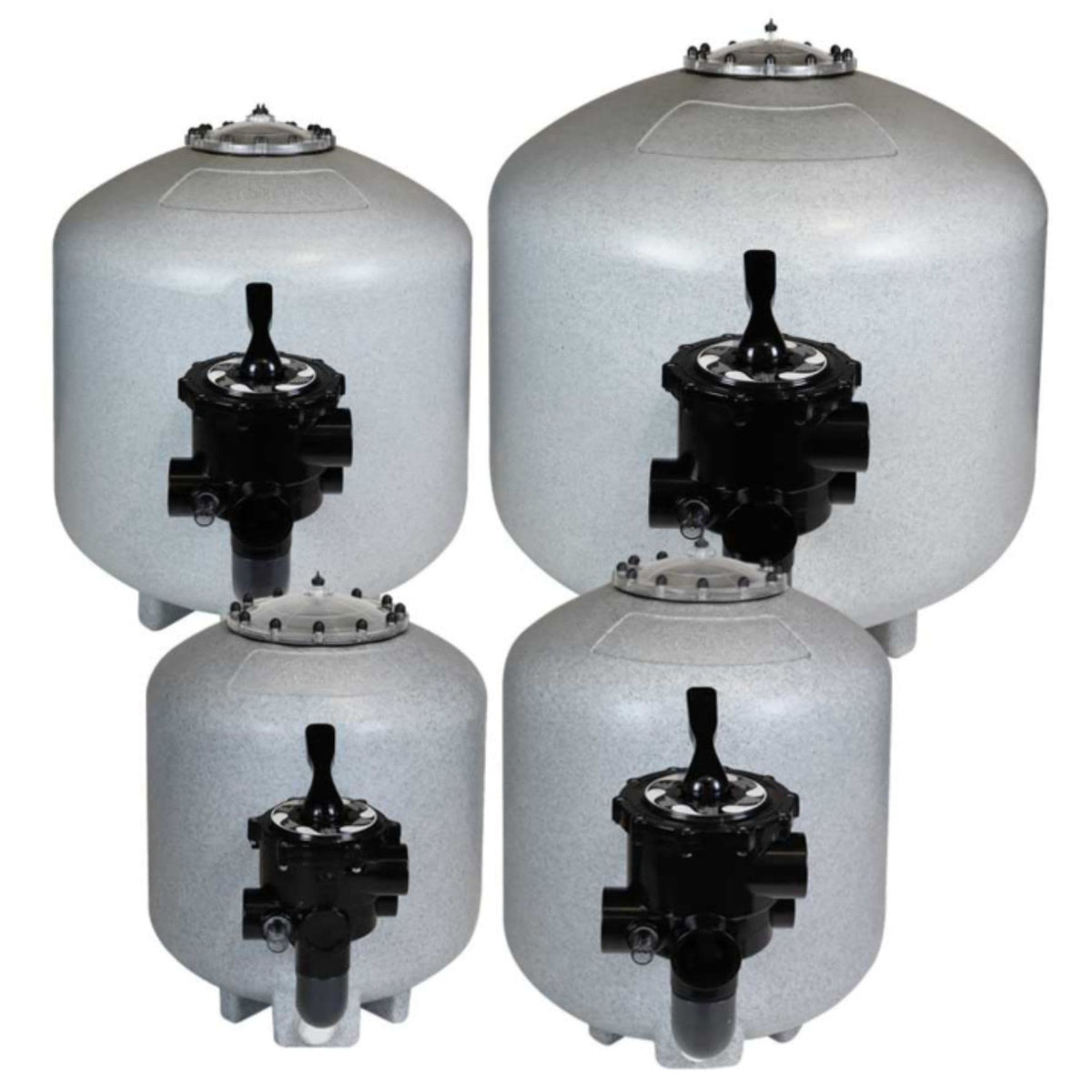

  Evolution Aqua K+ Advanced Pressure Filters Revolutionize your pond filtration with the Evolution Aqua K+ Advanced Pressure Filters – a next-generation solution engineered for efficiency, rapid biological maturation, and superior water clarity. Designed to outperform traditional bead filters, these systems arrive pre-filled with innovative K+ Media that boasts a unique shape for a class-leading surface area. Enhanced with a special coating of minerals and enzymes, these filters quickly establish the beneficial microorganisms necessary for optimal biological filtration. Perfect for large koi ponds requiring heavy-duty filtration. K+ Media – Advanced Filtration Technology Class-Leading Surface Area: Provides ample space for beneficial bacteria to colonize, ensuring rapid filter maturation. Accelerated Biological Filtration: Pre-treated with minerals and enzymes, the media matures faster, filtering down to one micron without compromising water flow. Enhanced Solids Retention: Designed to capture even the finest particles, keeping your pond water pristine. Clear Viewing Lid & Smart Design Durable Construction: Manufactured using a rotational moulding process that eliminates weak points and ensures a consistent wall thickness for lasting durability. Pre-Filled & Ready to Install: Arrives with K+ Media already loaded, reducing installation time and allowing for immediate performance. Energy Efficient: Optimizes water flow to maximize your pump's efficiency, potentially allowing for a lower flow pump and reduced energy costs. Integrated Air Blower System: The included air blower, valve, and preassembled pipework simplify backwashing and ensure the media is thoroughly cleaned during the rinse cycle. Technical Specifications Smaller Models Model Application Dimensions Maximum Pond Size Optimum Flow Rate Volume K1 Micro Included K+Media Included Max K+Media Capacity Multiport Valve/Tubing Size Color Warranty Aqua K+ Advanced Filter 16 Out of Pond 16" 3,000 Gallons 1,200-1,500 GPH 135 Gallons Pre-Filled 1.06 cu ft / 30 Liters 150 Liters 1.5"/1.5" Granite Grey 2-Year Aqua K+ Advanced Filter 20 Out of Pond 20" 4,800 Gallons 1,600-2,000 GPH 222 Gallons Pre-Filled 1.77 cu ft / 50 Liters 150 Liters 1.5"/1.5" Granite Grey 2-Year Aqua K+ Advanced Filter 24 Out of Pond 24" 9,600 Gallons 3,200-4,000 GPH Not Specified Pre-Filled 3.53 cu ft / 100 Liters 150 Liters 2"/2" Granite Grey 2-Year Larger Models Model Application Dimensions Maximum Pond Size Optimum Flow Rate Volume K+Media Included Max K+Media Capacity Multiport Valve/Tubing Size Color Warranty Aqua K+ Advanced Filter 30 Out of Pond 30" 14,500 Gallons 4,800-6,000 GPH Not Specified Pre-Filled 5.28 cu ft / 150 Liters 2"/2" Granite Grey 2-Year Aqua K+ Advanced Filter 36 Out of Pond 36" 24,000 Gallons 6,000-7,000 GPH Not Specified Pre-Filled 8.83 cu ft / 250 Liters 2"/2" Granite Grey 2-Year *Units include white floating K+ Media. Box Contents Filter System Threaded Collars and O-Rings Multiport Valve Air Blower and Collar Pipework Fittings: 1.5” fittings for MPV and Air Blower Ball Valve (models 16, 20, and 24) 2” fittings for MPV and Air Blower Ball Valve (models 30 and 36) How It Works Water from your pond enters the filter through the multiport valve and is directed to the base of the unit. As it passes through the pre-filled K+ Media, the filter captures debris and organic waste while simultaneously establishing a robust biofilm. Beneficial bacteria colonize the extensive surface area of the media, converting harmful ammonia and nitrites into safer nitrates. Dual laterals in the filter ensure optimal water flow and maintain a consistent circulation rate between cleaning cycles, with the purified water exiting at the top of the unit. Installation Guide The Evolution Aqua K+ Advanced Pressure Filters can be installed in both pump-fed and gravity-fed configurations. For pump-fed setups, it is recommended to install a Cetus Sieve pre-filter upstream and a suitably sized Evolution Aqua evoUV unit on the return line. The Model 4800 should be plumbed using 1.5” PVC, while the larger models require 2” PVC. Alternatively, these filters can be installed downstream of a skimmer filter. Always dry-fit the components before applying PVC glue to ensure a secure and leak-free installation. Upgrade your pond’s filtration system with the Evolution Aqua K+ Advanced Pressure Filters – where innovative design meets exceptional performance for crystal-clear, healthy water.

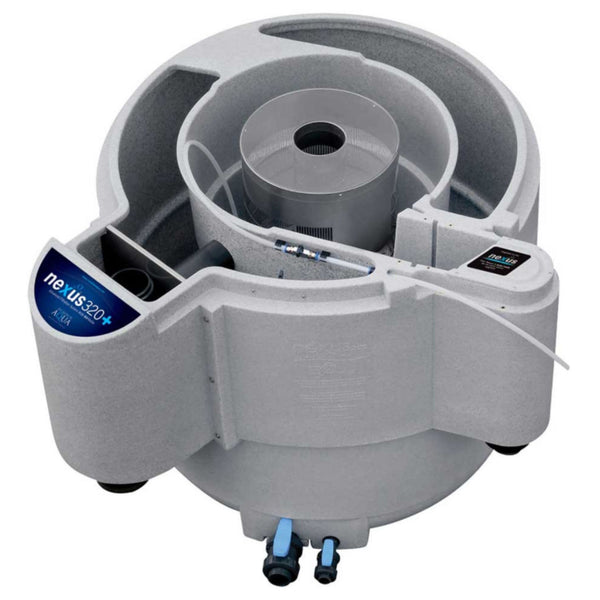

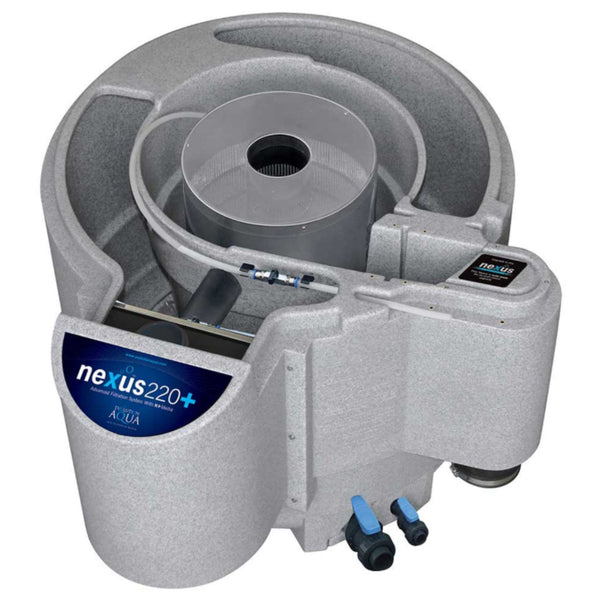

Evolution Aqua Nexus+ Gravity Koi Pond Filters Discover the award-winning Nexus+ series – the ultimate filtration solution for koi pond owners. Designed to deliver superior mechanical and biological filtration in one integrated system, these filters are available in multiple sizes with optional lids. Whether you have a pond of up to 4,800 gallons or a larger one up to 9,000 gallons, there’s a Nexus+ model built to keep your water crystal clear even with a heavy fish load. Advanced Filtration Technology The Nexus+ system uniquely combines a two-stage filtration process that enhances both mechanical and biological cleaning: Award-Winning Filter Media: Incorporates specialized media to deliver outstanding filtration performance. Dual Filtration Stages: A central chamber filled with K1 Micro Media mechanically traps small debris, while the outer chamber houses innovative K+Media for rapid biological maturation. Enhanced Flow and Solids Handling: The design of the K1 Micro beads promotes superior water flow with minimal backpressure, ensuring that your pump works efficiently. EAZY Filter – Mechanical Filtration Redefined At the heart of the Nexus+ filter is the stainless steel EAZY filter, engineered to provide robust mechanical filtration: Durable Construction: Crafted from high-quality stainless steel, it houses the K1 Micro Media in a central chamber. Clog-Free Design: Its unique pattern of slots optimizes water flow and prevents clogs, ensuring consistent performance. Clear Lid: Monitor the filtration process easily with a transparent lid that keeps debris out while showcasing the media at work. Easy Installation & Automatic Upgrades The Nexus+ filter is engineered with the homeowner in mind. It can be configured in either a pump-fed or gravity-fed setup depending on your pond’s design. Maintenance is simple – a quick backflush using an air pump (not included) clears debris, and internal components are easily removable for deeper cleaning. For those seeking convenience, an upgrade to an automatic cleaning system is available. Flexible Setup: Install the filter in a pump-fed or gravity-fed configuration with ease. Backflush Made Simple: Switch valves and insert a slide plate to agitate the media using an air pump. Optional Automation: Upgrade your system to fully automate the cleaning process for hassle-free maintenance. Optional Filter Lid Protect your investment with the tailored Nexus+ Filter Lid: Debris Protection: Prevents unwanted particles and weather-related issues from compromising the filter. Secure Fit: Designed to fit seamlessly over both the 220+ and 320+ models. Robust Materials: Made to endure even the harshest conditions, ensuring longevity and performance. Technical Specifications Model Application Dimensions Maximum Pond Size Maximum Flow Rate Volume K1 Micro Included K+Media Included Max K+Media Capacity Backflush Feature Includes UV Filtration Includes Air Pump Recommended Air Pump* Optional Accessory Warranty Nexus 220 Out of Pond 49.6"L x 43.7"W x 33.5"H Up to 4,800 Gallons 2,640 GPH 135 Gallons 18 Liters 50 Liters 150 Liters Yes No No Evolution Aqua Air Pump 75 or Larger With or Without Lid 2-Year Nexus220+ (EAZY 220) Out of Pond 56.3"L x 52"W x 40.4"H Up to 9,000 Gallons 3,431 GPH 222 Gallons 20 Liters 100 Liters 300 Liters Yes No No Evolution Aqua Air Pump 95 or Larger With or Without Lid 2-Year *Ensure your air pump is powerful enough to move the additional K+Media if you choose to increase biological filtration – refer to the product manual for further details. Nexus+ Advantages Superior biological filtration for pristine water clarity. Accelerated filter maturation thanks to advanced K+Media. Easy-to-install auto cleaning kits available for hassle-free maintenance. Award-winning koi filtration systems trusted by pond enthusiasts. How It Works The Nexus+ filter operates as an integrated mechanical and biological system. Water enters through the inlet into an inner chamber where a vortex effect allows larger solids to settle. It then passes through the EAZY filter – a static bed of K1 Micro Media that traps finer particles. The pre-filtered water subsequently flows into the outer chamber where the dynamic K+Media moving bed fosters rapid bacterial growth. Here, beneficial bacteria break down ammonia and nitrites into less harmful nitrates before the water exits through the outlet back into your pond. Installation Guide Pump-Fed Setup In a pump-fed configuration, a submerged pump directs water into the filter. Once processed, the water returns to the pond via a waterfall or a large-diameter pipe. It is recommended to install a UV unit downstream to match your pump’s flow rate and pond size. Gravity-Fed Setup For gravity-fed installations, ensure the water level in the filter is aligned with the pond's surface. Water flows from a 4" bottom drain upward through the filter. The pump, located after the filtration unit, then recirculates the cleaned water back to the pond. As with pump-fed systems, a properly sized UV unit is advised. Upgrade your pond filtration with the Evolution Aqua Nexus+ series – where innovative design meets effortless maintenance to deliver clear, healthy water for your koi pond.
