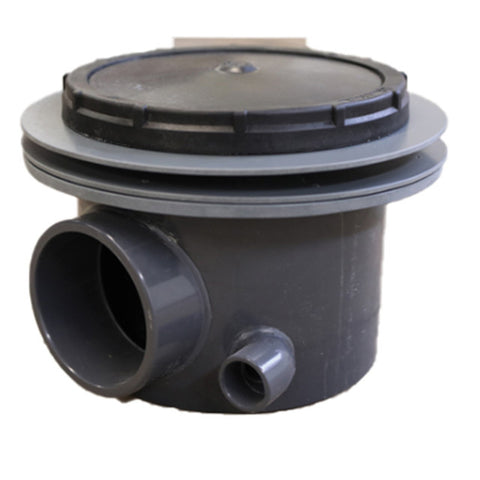

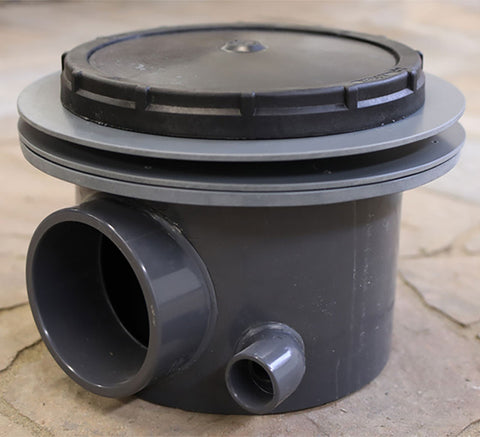

Evolution Aqua 4-Inch Aerating Bottom Drain
Upgrade your pond’s water circulation with Evolution Aqua's 4-Inch Aerating Bottom Drain. Crafted from robust, thick-walled Schedule 80 PVC, this drain is designed for both functionality and aesthetic appeal. Its innovative design features a 4-inch horizontal pipe inlet paired with a 1-inch side-mounted aeration pipe, making installation straightforward and customizable. Simply measure, cut your tubing to size, and install—the result is a bottom drain that not only performs flawlessly but also adds a unique visual element to your water garden.
Product Features
- Durable Construction: Molded from heavy-duty Schedule 80 PVC for long-lasting performance.
- Easy Installation: Designed with a 4-inch horizontal pipe inlet and a 1-inch aeration inlet for simple setup.
- Adjustable Standpipe: Features a central standpipe that threads to the underside of the aeration plate and can be adjusted and glued to the bottom drain base.
- Aesthetic Appeal: Once installed, this bottom drain enhances both the functionality and the look of your pond.
Technical Specifications
| Parameter | Specification |
|---|---|
| Overall Dimensions | 14" Diameter x 10.5" High |
| Excavation Requirements | Approximately 15" Diameter x 8" Deep |
| Required Air Flow* | 1.5 - 3.5 CFM |
*Aerator not included.
Box Contents
- Sch 80 PVC Base
- Liner Ring
- Heavy Duty Aeration Disc
- Center Stand Pipe
- Stainless Steel Hardware
- Features: 4-Inch Horizontal Pipe Inlet and 1-Inch Aeration Inlet
Experience efficient water circulation and an enhanced pond aesthetic with the Evolution Aqua 4-Inch Aerating Bottom Drain—a perfect addition to any water garden.
