Evolution Aqua evoUV Clarifier
Green water in your pond can be a persistent issue, but with the Evolution Aqua evoUV Clarifier, achieving crystal-clear water is effortless. Designed to be economical, efficient, and easy to install, this UV clarifier is perfect for both new and existing water features. Its fully water-tight construction ensures durability, yet the unit is engineered for straightforward maintenance and serviceability—ideal for both residential and commercial applications.
Available in five sizes, the evoUV Clarifier is tailored to suit ponds of various capacities, ensuring you get the right fit for your water garden. Each unit is backed by a 2-year warranty, so you can enjoy peace of mind along with pristine water.
How It Works

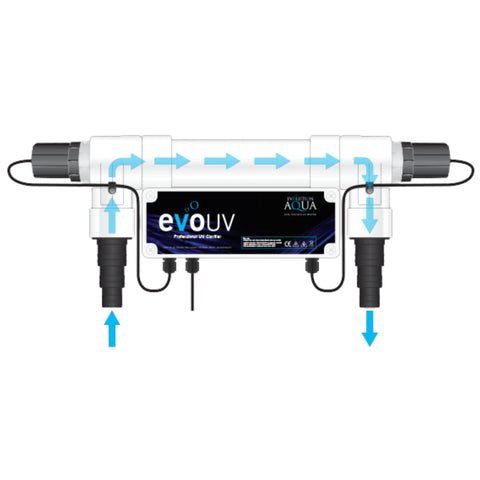

The evoUV Clarifier houses an ultraviolet light bulb inside a sealed quartz sleeve. As pond water flows through the unit, the UV light targets and destroys the DNA of single-celled algae. Once the algae are neutralized, they clump together, making them easier for your pond’s filtration system to remove. This process dramatically improves water clarity and reduces the green tint in your pond.
Maintenance Guidelines
To maintain peak performance, it’s essential to periodically clean the quartz sleeve. Over time, dirt and mineral deposits can accumulate on the surface, diminishing the UV light’s effectiveness. We recommend using a mild acid, such as white vinegar, or a specialized cleaner (for example, Airmax Fountain Aeration Cleaner) along with a soft-bristled brush or sponge. Rinse thoroughly before reassembling the unit.
The included UV bulb is rated for approximately 9,000 hours. For continuous operation during spring and summer, replacing the bulb annually is advised.
Technical Specifications
| Model | Application | Dimensions | Max Pond Size | Max Flow Rate | Inlet/Outlet | Included Fittings* | Replacement UV Bulb | Power Cord Length | Warranty |
|---|---|---|---|---|---|---|---|---|---|
| EVO15 UV | In-Line, Out of Water | 21.25"L x 4.5"W x 6"H | Up to 4,000 Gallons | 1,800 GPH | 1.5" FPT | 3/4 to 1-1/2" Barb | 15 Watt | 7' | 2-Year |
| EVO25 UV | In-Line, Out of Water | 21.25"L x 4.5"W x 6"H | Up to 5,300 Gallons | 2,500 GPH | 1.5" FPT | 3/4 to 1-1/2" Barb | 25 Watt | 7' | 2-Year |
| EVO30 UV | In-Line, Out of Water | 38.9"L x 3.35"W x 6"H | Up to 7,900 Gallons | 3,500 GPH | 1.5" FPT | 3/4 to 1-1/2" Barb | 30 Watt | 7' | 2-Year |
| EVO55 UV | In-Line, Out of Water | 38.9"L x 3.35"W x 6"H | Up to 14,500 Gallons | 5,000 GPH | 1.5" FPT | 3/4 to 1-1/2" Barb | 55 Watt | 7' | 2-Year |
| EVO110 UV | In-Line, Out of Water | 38.9"L x 7.7"W x 11"H | Up to 19,500 Gallons | 6,000 GPH | 2" | Not Supplied† | 2 x 55 Watt | 7' | 2-Year |
*For the 15, 25, 30, and 55 Watt models: Step-down barbed fittings with a 1.5" male thread are included. Use a PVC Male Threaded Adapter or glue a 2" fitting over the top of the inlet/outlet to connect to 2" pipe as needed. For the 110 Watt model, a 2" pressure pipe can be glued directly into the inlet/outlet.
Let the Evolution Aqua evoUV Clarifier transform your pond into a crystal clear oasis. With its advanced UV technology and user-friendly design, achieving pristine water quality has never been easier.
