30 PSI Pressure Regulator Kit

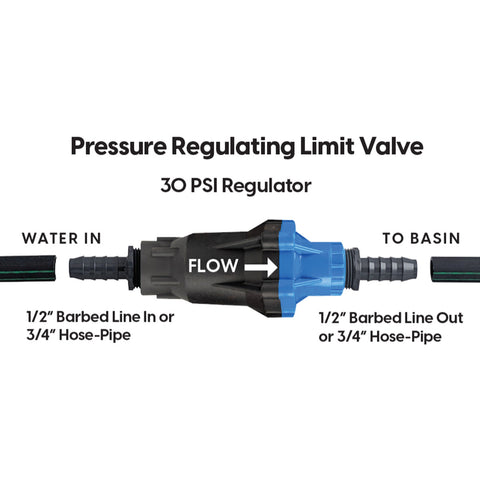

Blue Thumb auto fill valves are rated to 30 PSI. Household water usually runs higher, which can hold the valve open so it never shuts off. This regulator goes in the supply line ahead of the auto fill and steps the pressure down to 30 PSI.
• Protects the Valve: regulated 30 PSI outlet pressure.
• Handles Household Pressure: accepts up to 125 PSI inlet.
• For Both Auto Fills: the Fountain Basin Auto Fill Kit and the Hudson Auto Fill Kit for ponds.
• Ready to Plumb: barb fittings, hose clamps, a direct-to-basin adapter and thread tape included.
30 PSI Regulator Specifications
| Spec | Detail |
| Outlet pressure | 30 PSI |
| Max inlet pressure | 125 PSI |
| Connection | 1/2″ barbed line or 3/4″ hose |
| Water | Clean water only |
| Brand | Blue Thumb |
| SKU | 30PSI |

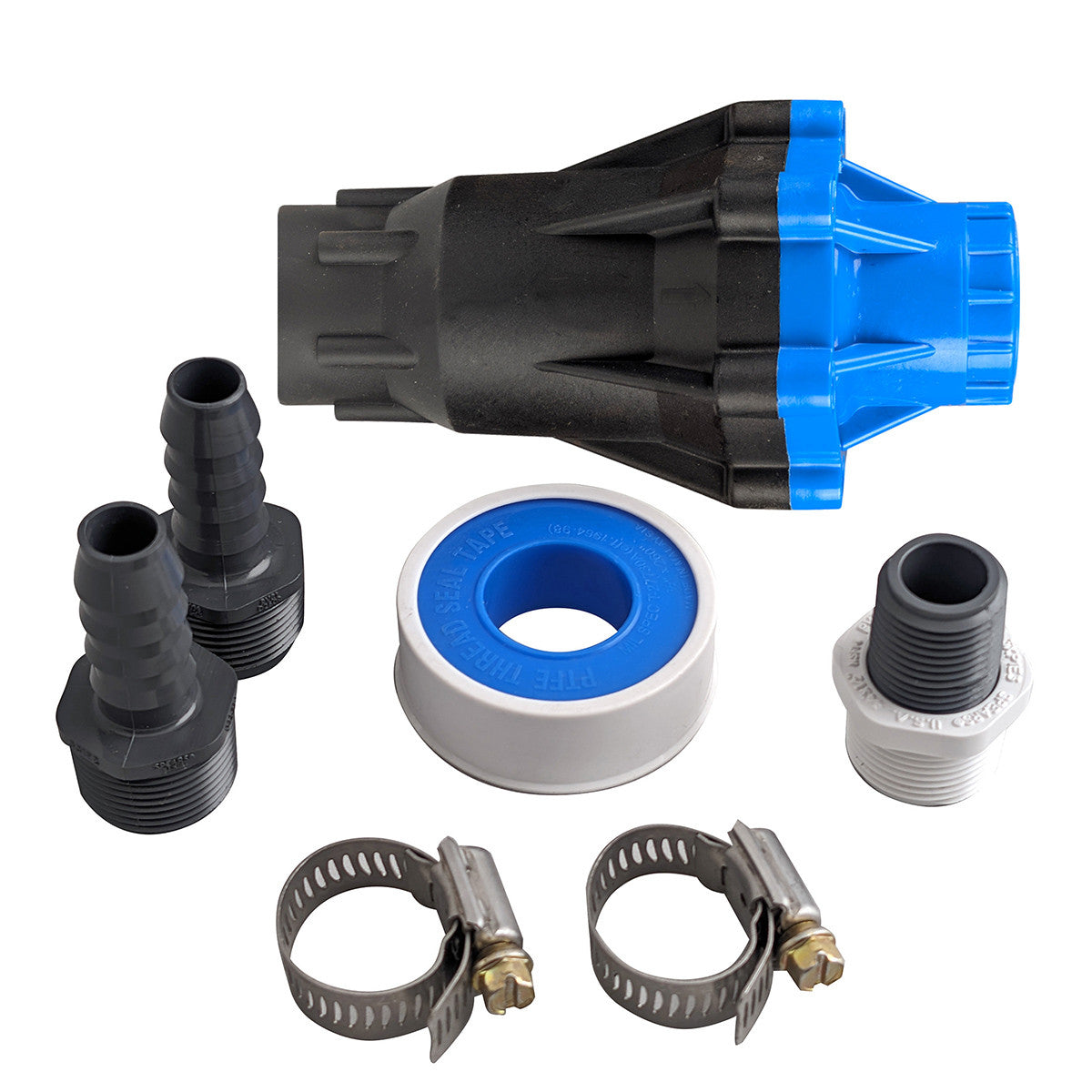

What's in the 30 PSI Regulator Kit
- 30 PSI pressure regulator
- Two 1/2″ male threaded barb fittings
- Two irrigation line hose clamps
- Direct-to-basin adapter
- PTFE thread seal tape
Before You Order the Regulator
- It does not fill anything on its own. Pair it with an auto fill kit.
- Use PTFE tape only on the threads.
- If your water needs filtering, use a 100-mesh or finer filter ahead of it.
- FREE Shipping via FEDEX, LTL Ground, & UPS. Ships in 2-3 Business Days.
- Ships Only to Lower 48 States of the United States
