Change Your Fountain's Spray With an Airmax Arch Nozzle
Swap the standard spray on your Airmax fountain for one of three premium arch patterns. Choose the pattern, then choose your fountain, and you get the nozzle made for that model and horsepower.

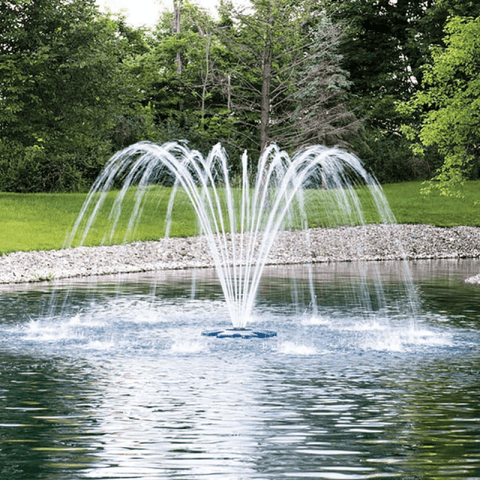

• Single Arch: One wide, even arch of water. Clean and classic, up to 9' high and 24' wide.

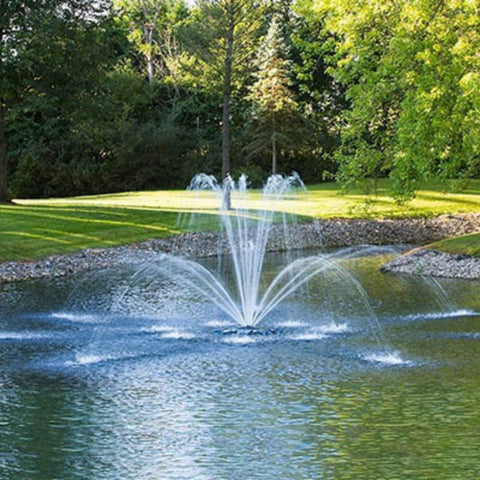

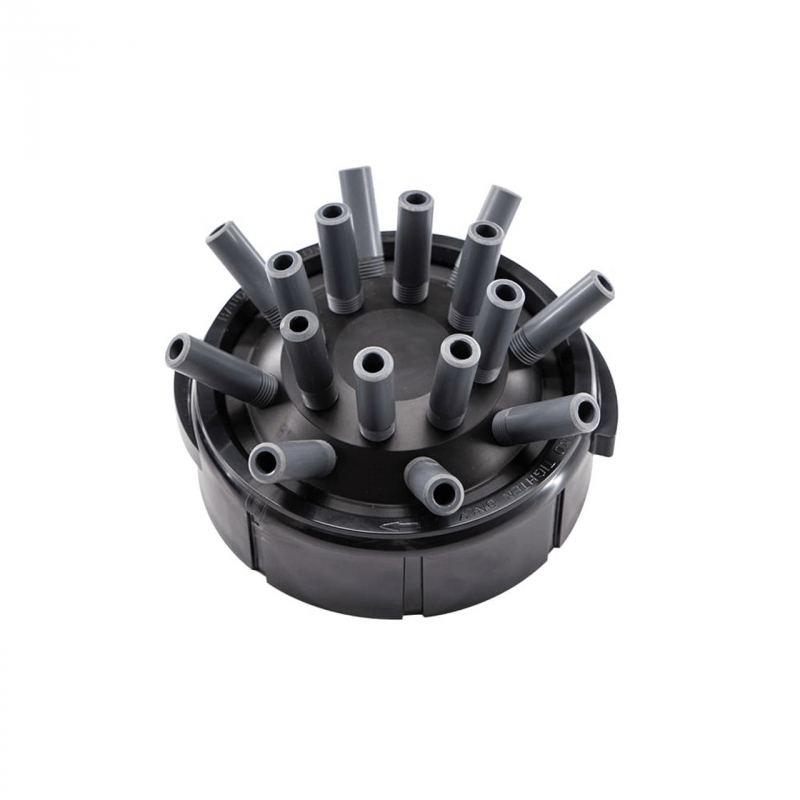

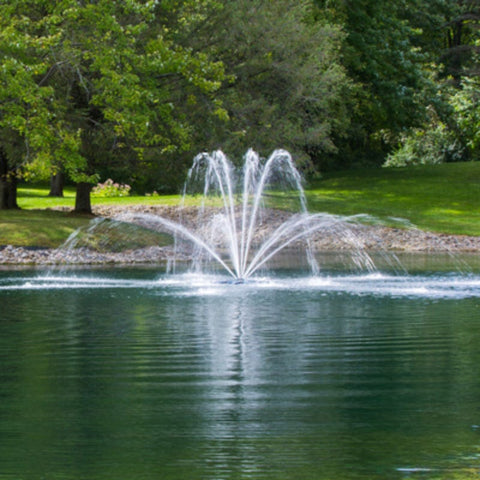

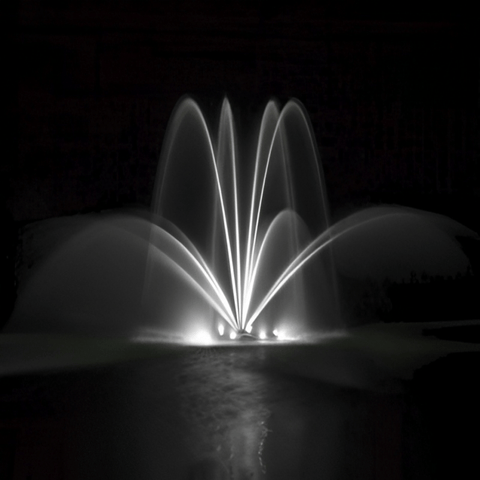

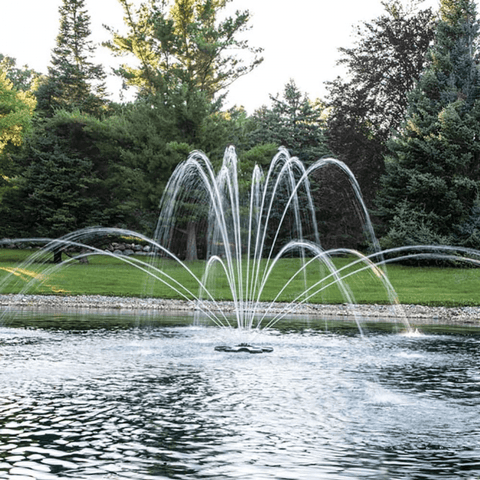

• Double Arch: Two overlapping tiers for a fuller display on larger ponds, up to 10' high and 38' wide.

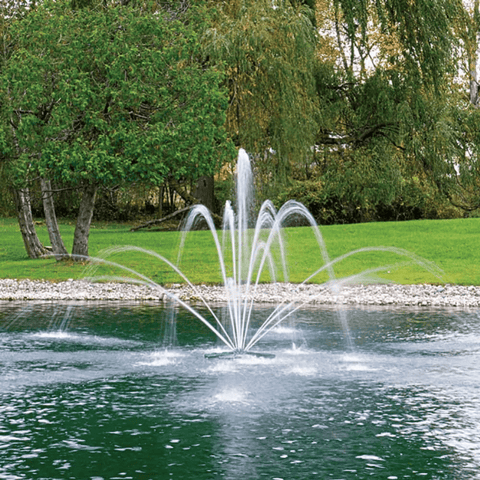

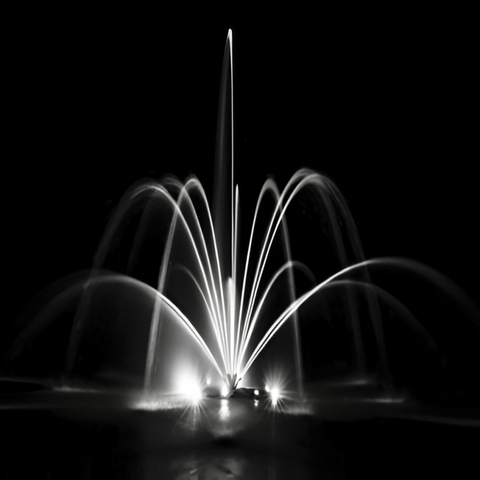

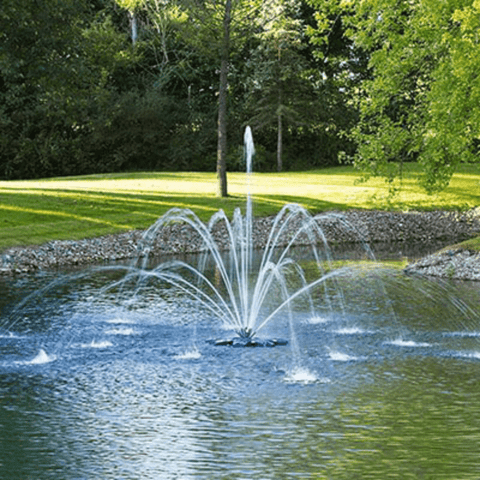

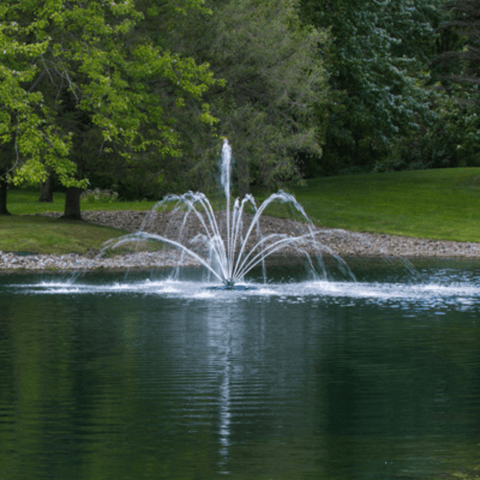

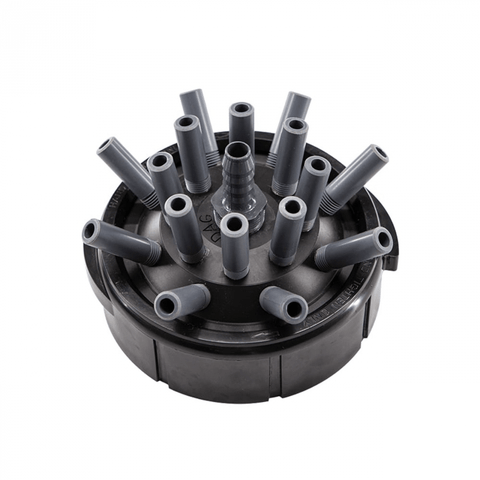

• Double Arch & Geyser: Two arch tiers around a center geyser that reaches up to 11' high. The most dramatic of the three.
• No Tools Needed: Change patterns with the nozzle nut on your existing fountain.
• Made for Airmax Fountains: Fits the EcoSeries 1/2 HP, SolarSeries, and PondSeries 1/2, 1 and 2 HP fountains.
Compare Airmax Single Arch, Double Arch and Double Arch & Geyser Nozzles
| Pattern | What It Looks Like | Best For | Price |
| Single Arch | One wide arch of water | A clean, classic look on any size pond | $289.99 to $379.99 |
| Double Arch | Two overlapping arch tiers | A fuller display on larger ponds | $389.99 to $499.99 |
| Double Arch & Geyser | Two arch tiers plus a center geyser | The tallest, most dramatic display | $389.99 to $499.99 |
Airmax Arch Nozzle Spray Height and Width by Fountain
| Fountain | Single Arch | Double Arch | Double Arch & Geyser |
| EcoSeries 1/2 HP | 8' H × 16' W | Tier 1: 10' H × 16' W Tier 2: 5' H × 38' W | Geyser: 9' H Tier 1: 7' H × 12' W Tier 2: 5' H × 34' W |
| SolarSeries | 8' H × 22' W | Tier 1: 9' H × 10' W Tier 2: 5' H × 34' W | Geyser: 10' H Tier 1: 6' H × 15' W Tier 2: 4' H × 30' W |
| PondSeries 1/2 HP | 9' H × 14' W | Tier 1: 8' H × 8' W Tier 2: 4.5' H × 28' W | Geyser: 9' H Tier 1: 6' H × 7' W Tier 2: 4' H × 28' W |
| PondSeries 1 HP | 8' H × 22' W | Tier 1: 9' H × 10' W Tier 2: 5' H × 34' W | Geyser: 10' H Tier 1: 6' H × 15' W Tier 2: 4' H × 30' W |
| PondSeries 2 HP | 9' H × 24' W | Tier 1: 10' H × 10' W Tier 2: 5.5' H × 36' W | Geyser: 11' H Tier 1: 7' H × 15' W Tier 2: 4' H × 32' W |
Which Airmax Fountain Nozzle Fits Your Fountain?
| Fountain | Single Arch Part # | Double Arch Part # | Double Arch & Geyser Part # |
| EcoSeries 1/2 HP | 651446 | 651445 | 651447 |
| SolarSeries | 651911 | 651913 | 651915 |
| PondSeries 1/2 HP | 652990 | 652991 | 652992 |
| PondSeries 1 HP | 651911 | 651913 | 651915 |
| PondSeries 2 HP | 652141 | 652142 | 652143 |
Airmax Arch Fountain Nozzle Videos
| Pattern | On an EcoSeries | On a SolarSeries | On a PondSeries |
| Single Arch | Watch video | Watch video | Watch video |
| Double Arch | Watch video | Watch video | Watch video |
| Double Arch & Geyser | Watch video | Watch video | Watch video |
Before You Order an Airmax Arch Nozzle
- Match the nozzle to your fountain model and horsepower. PondSeries 1/2, 1 and 2 HP nozzles are not interchangeable.
- The SolarSeries and the PondSeries 1 HP use the same nozzle.
- Your EcoSeries or PondSeries fountain already comes with 3 standard patterns. These arch nozzles are an upgrade.
- Installs without tools: unscrew the nozzle nut, swap the nozzle and tighten the nut.
- Spray sizes are Airmax's 2026 specifications. Actual height and width vary with conditions.
- Want a different look? See the Blossom (Crown & Arch) nozzle.
Airmax Fountain Nozzle Installation Manual
- FREE Shipping via FEDEX, LTL Ground, & UPS. Ships in 2-3 Business Days.
- Ships Only to Lower 48 States of the United States
