Airmax Blossom Fountain Nozzle (Crown & Arch)

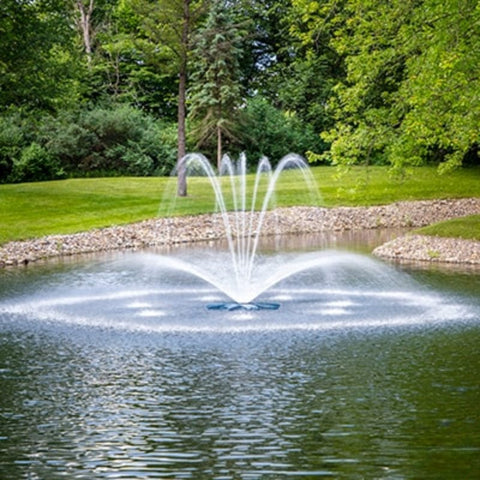

The Airmax Blossom (Crown & Arch) Fountain Nozzle pairs a full upper tier with a wide, low arch tier around it, for a layered display that reads like a flower opening on the water. Choose your fountain and you get the blossom nozzle made for that model and horsepower.
• Two Tiers: An upper tier up to 8.5′ high and 10′ wide over a lower tier up to 22′ wide on the PondSeries 2 HP.
• Premium Pattern: Airmax lists the SolarSeries, PondSeries 1 HP and 2 HP versions as Premium Blossom nozzles.
• No Tools Needed: Change patterns with the nozzle nut on your existing fountain.
• Made for Airmax Fountains: Fits the EcoSeries 1/2 HP, SolarSeries, and PondSeries 1/2, 1 and 2 HP fountains.

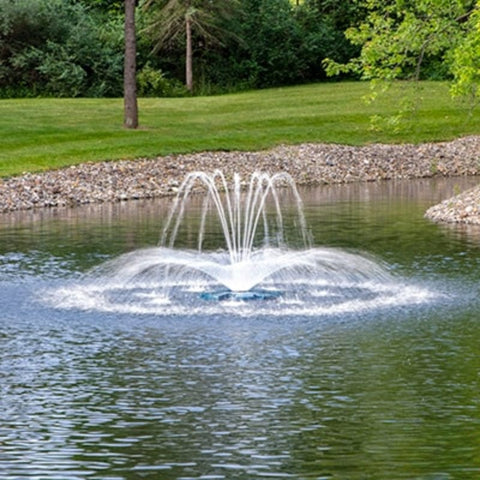

• Watch the Pattern: See it on an EcoSeries, a SolarSeries or a PondSeries fountain.
Crown & Arch Fountain Nozzle Spray Height and Width by Fountain
| Fountain | Tier 1 (Upper) | Tier 2 (Lower) |
| EcoSeries 1/2 HP | 5′ H × 7′ W | 2′ H × 13′ W |
| SolarSeries | 6.5′ H × 10′ W | 2′ H × 19′ W |
| PondSeries 1/2 HP | 5′ H × 7′ W | 2′ H × 13′ W |
| PondSeries 1 HP | 6.5′ H × 10′ W | 2′ H × 19′ W |
| PondSeries 2 HP | 8.5′ H × 10′ W | 2.5′ H × 22′ W |
Airmax EcoSeries, SolarSeries and PondSeries Blossom Nozzle Part Numbers
| Fountain | Airmax Part # |
| EcoSeries 1/2 HP | 652147 |
| SolarSeries | 652144 |
| PondSeries 1/2 HP | 652146 |
| PondSeries 1 HP | 652144 |
| PondSeries 2 HP | 652145 |
Before You Order an Airmax Blossom Nozzle
- Match the nozzle to your fountain model and horsepower. PondSeries 1/2, 1 and 2 HP nozzles are not interchangeable.
- The SolarSeries and the PondSeries 1 HP use the same blossom nozzle, part 652144.
- Every EcoSeries, SolarSeries and PondSeries fountain ships with 3 standard patterns. Order this nozzle to add a pattern or replace a lost or damaged one.
- Installs without tools: unscrew the nozzle nut, swap the nozzle and tighten the nut.
- Spray sizes are Airmax's 2026 specifications. Actual height and width vary with conditions.
- Want a different look? See the Arch nozzles (Single Arch, Double Arch, Double Arch & Geyser), the Trumpet nozzle or the Crown & Trumpet nozzle.
- Not sure which fountain you have? Contact us with your fountain model and we will confirm the right nozzle.
Airmax Fountain Nozzle Installation Manual
- FREE Shipping via FEDEX, LTL Ground, & UPS. Ships in 2-3 Business Days.
- Ships Only to Lower 48 States of the United States
