Guide & FAQ
How to choose the right external pond pump
- 3 min overview
- Types, head and plumbing
- 5 common questions
Why use an external pond pump?
A filter, waterfall, or stream only moves water when something keeps pushing it. An external pump does that job continuously, sitting outside the pond instead of in it.
Owners tend to choose external pumps for three reasons:
- Access for maintenance. The pump sits in a shed, pit, or on a pad, so service work happens on dry land rather than in the water.
- Steady flow for filtration. Biological filters, bogs, and multi-tier waterfalls need consistent movement that holds up as the pump ages.
- Equipment stays out of the pond. The motor housing never enters the water, which keeps mechanical equipment separate from fish.
Running nonstop also means electrical draw matters over the years, so it is worth comparing watts alongside price.
The main types, and when to choose each
External pumps are generally grouped by how much resistance they push against. Picking the right group matters more than any single number on the box.
High-flow, low-head models
These move large volumes of water against very little resistance. The water falls a short distance or flows through open, low-restriction plumbing.
Choose a high-flow, low-head model when your pond uses gravity-fed plumbing, a short low waterfall, or open biological filtration that mainly needs turnover.
Medium-head, pressure models
These are built to push against backpressure: a pressurized bead filter, a long plumbing run, elevation changes, or a UV clarifier in the line.
Choose a medium-head, pressure model when water has to climb or pass through restrictive media before it returns to the pond.
When a submersible pump is the better fit
Choose a submersible pump when it will live inside a skimmer box or intake bay, the pond is small, or there is no dry spot to site external equipment. If that sounds like your setup, our Submersible Pond Pumps page is the better place to start.
How to choose the right model
Flow rate on its own tells you very little. What matters is the flow you get at the resistance your pond creates.
- Total dynamic head. Add the vertical lift from the water surface to the highest discharge point, then the friction from pipe length, elbows, check valves, and filter media. That total is what the pump actually works against.
- Watt draw. A pump running 24 hours a day for years is worth comparing on power use as well as on purchase price.
- Intake and discharge size. The plumbing has to match the pump's ports. Undersized intake plumbing starves the pump and shortens impeller life.
- Noise. A pump near a patio or bedroom window is easier to live with when it is designed for quiet continuous running.
If you want help with the head calculation, send us your lift height and plumbing length and we can work through it with you.
Installation, power and placement
Placement affects which pumps will work at all, so think it through before you order.

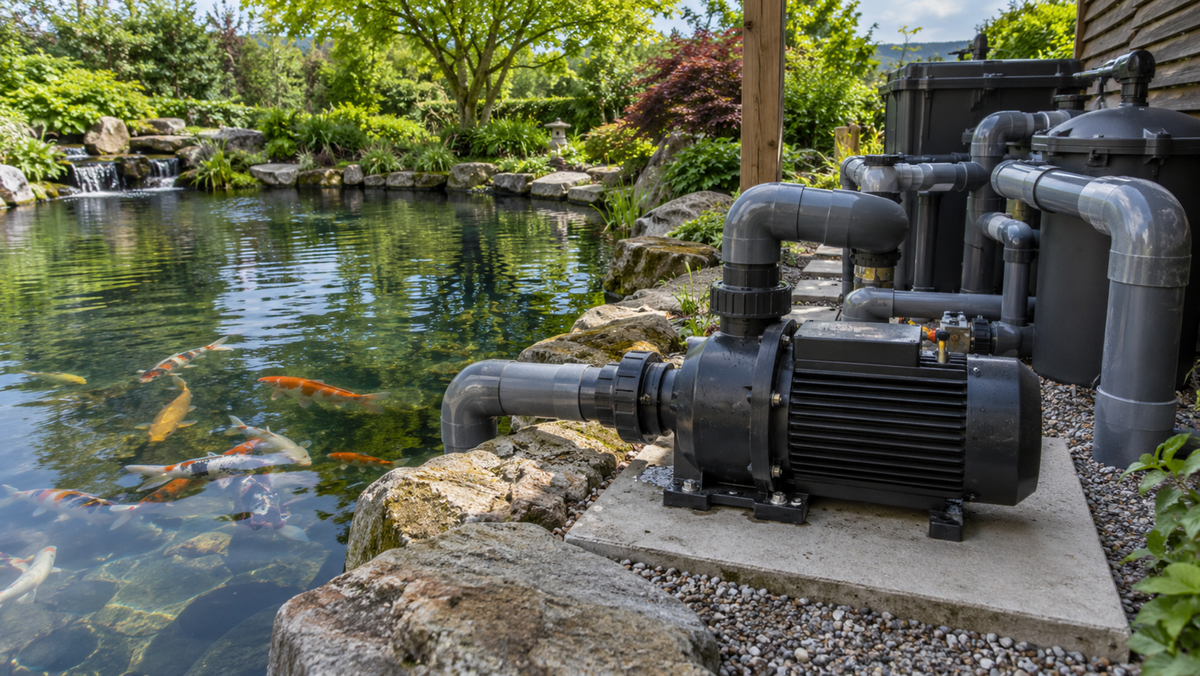

- Flooded suction is ideal. Set the pump below the pond's water level so the intake line stays full and the pump never has to lift water to start.
- Above the water line is possible. A setup above the pond surface normally needs a check valve plus an external priming pot with a strainer basket so the pump does not run dry.
- Give it shelter and clearance. Keep the pump out of standing water and heavy direct runoff, and leave room around the motor for ventilation.
- Size the intake line properly. The suction side should be at least as large as the pump intake. Restrictive intake plumbing causes cavitation.
- Power. Use a dedicated GFCI-protected circuit rated for the pump's continuous operating draw.
Strainer baskets, priming pots, and unions vary by model, so check the individual product page or ask us before you plan the plumbing around them.
Not sure which one you need?
Send PondHaven your pond volume or dimensions, the height the water has to climb, the plumbing run length, and what sits in the loop (filter, UV, waterfall). We can point you to the right pump for the job.
No page change, it expands right here
Frequently asked questions
Quick answers to the most common questions about our sequence pumps.
Can I install the pump higher than the pond water level?
Yes, but a setup above the water line needs a check valve and an external priming pot with a strainer basket so the pump holds prime and does not run dry. Installing below the water surface is simpler and usually preferred.
What size plumbing line do I need for the suction side?
Match the intake plumbing to the pump's intake port and never go smaller. Undersized suction plumbing restricts flow and can damage the impeller over time, so confirm the port size on the product page before buying pipe.
Does the pump come with a priming pot and leaf strainer?
It depends on the model. Some include a priming pot or strainer basket, others treat them as separate hardware. Check the individual product page for what is listed, or ask PondHaven before you order.
How do I work out total dynamic head?
Total dynamic head is the vertical lift from the pond surface to the highest discharge point, plus friction from pipe length, fittings, check valves, and filter media. Once you have that number, judge a pump by how it performs at that head rather than by its maximum rating.
Can this pump run a pressurized bead filter?
A medium-head or pressure model is the type designed to push water through pressurized media and return it to the pond. A high-flow, low-head model can lose a lot of flow against that kind of backpressure, so match the pump type to the filter.
