Vertex Air 3 XL2 Pond Aeration System

Vertex Air 3 XL2 Pond Aeration System

The Vertex Air 3 XL2 Aeration system is best fit for ponds 2-3 surface acres and 45 ft deep depending on the shape, slope, and oxygen demand. This system is available in 115 or 230 volts.

The Air 3 XL2 Aeration system is super-efficient and safe. The rising force of millions of bubbles transports bottom water to the surface, allowing oxygen to be absorbed and circulating the entire water column.

• Circulates up to 11,400 GPM (gallons per minute)
• High pumping rate easily penetrates stratification layers Š
• Promotes beneficial bacteria growth Š
• Prevents low oxygen fish kills Š
• Reduces nutrient levels and associated algae growth Š
• Oxidizes/reduces bottom muck Š
• Expands oxygenated habitat for improved fisheries Š
• Reduces aquatic midge and mosquito insect hatches Š
• Eliminates foul odors from undesirable dissolved gases

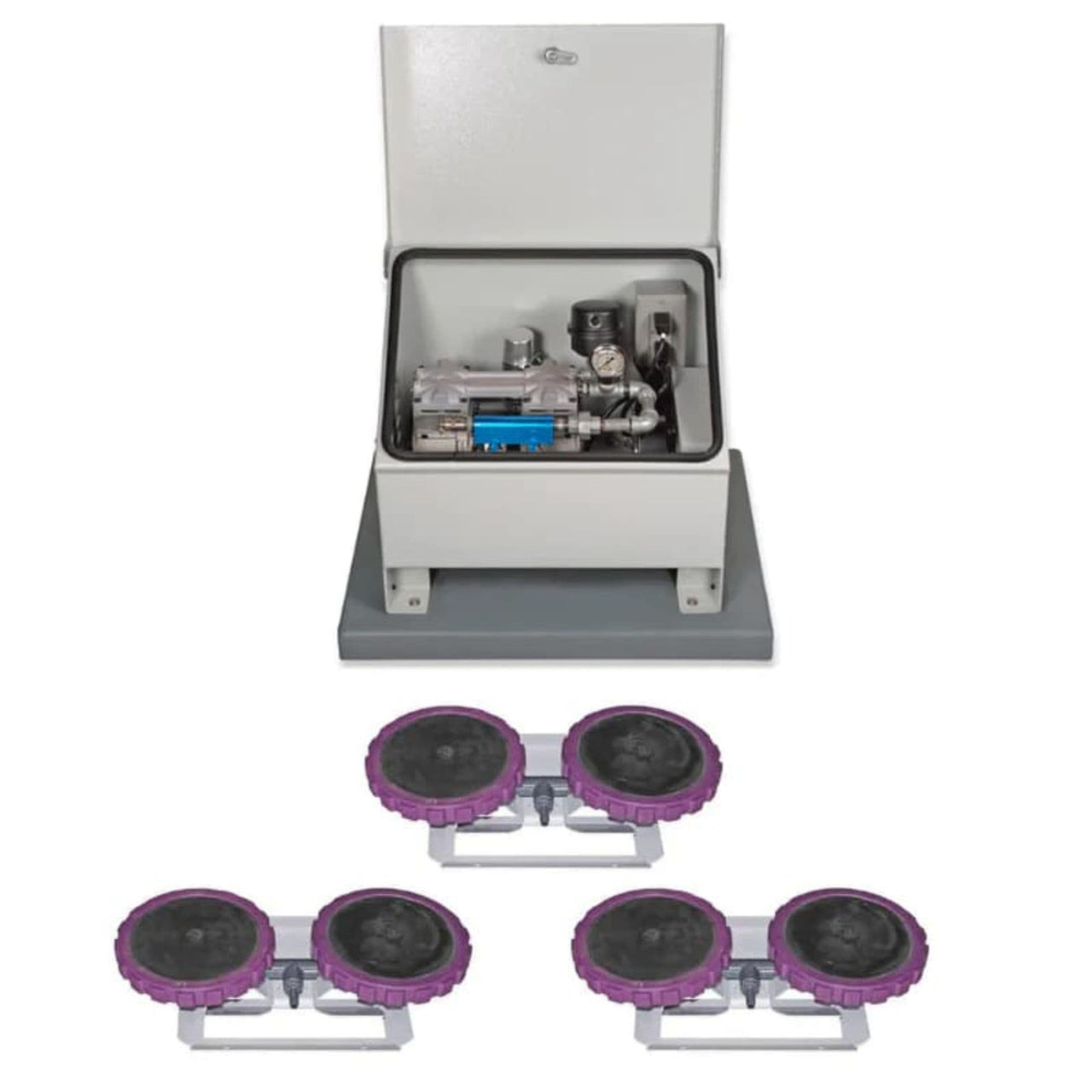

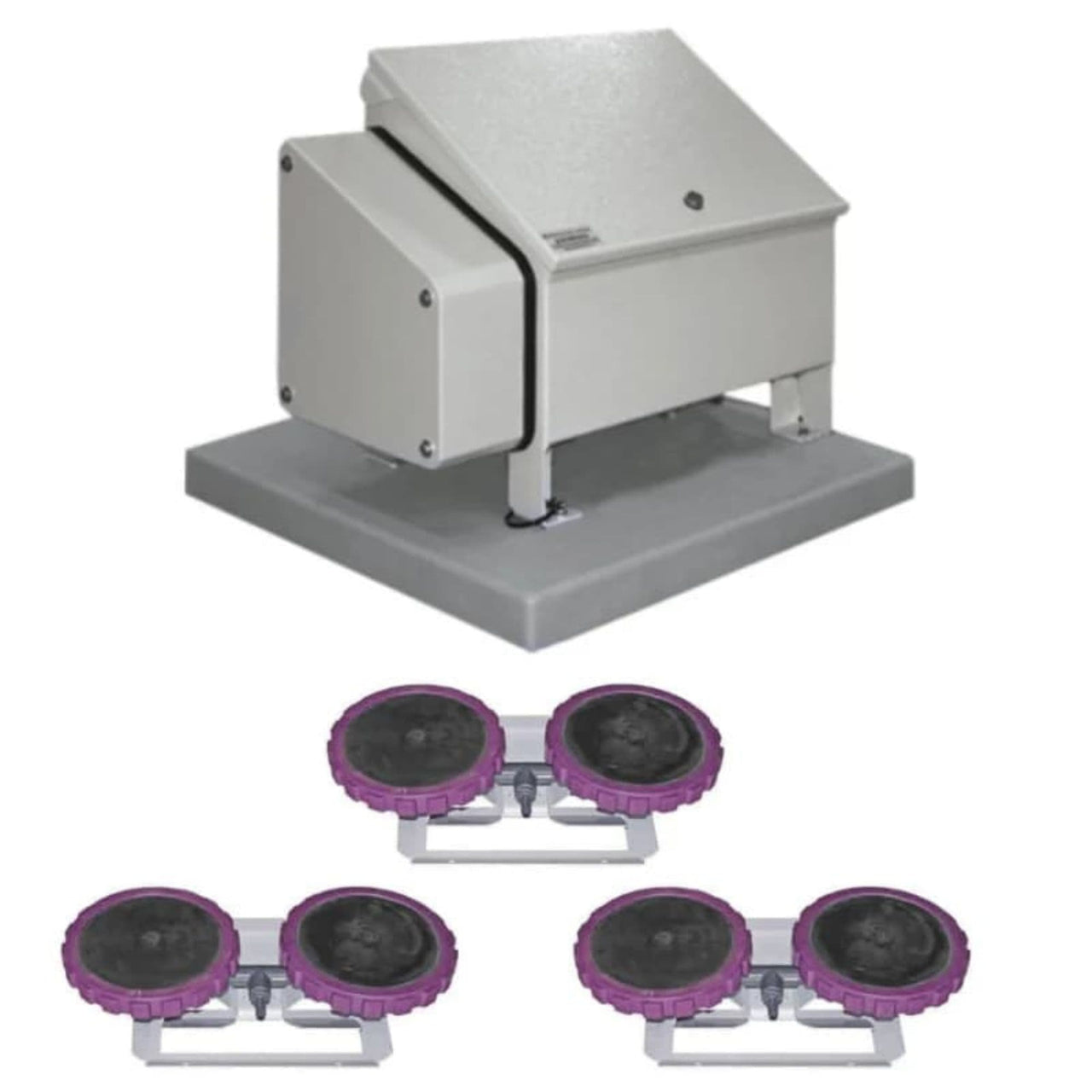

Air 3 XL2 System Includes:

3- XL2 Airstations
1- 1/2 HP Brookwood Compressor

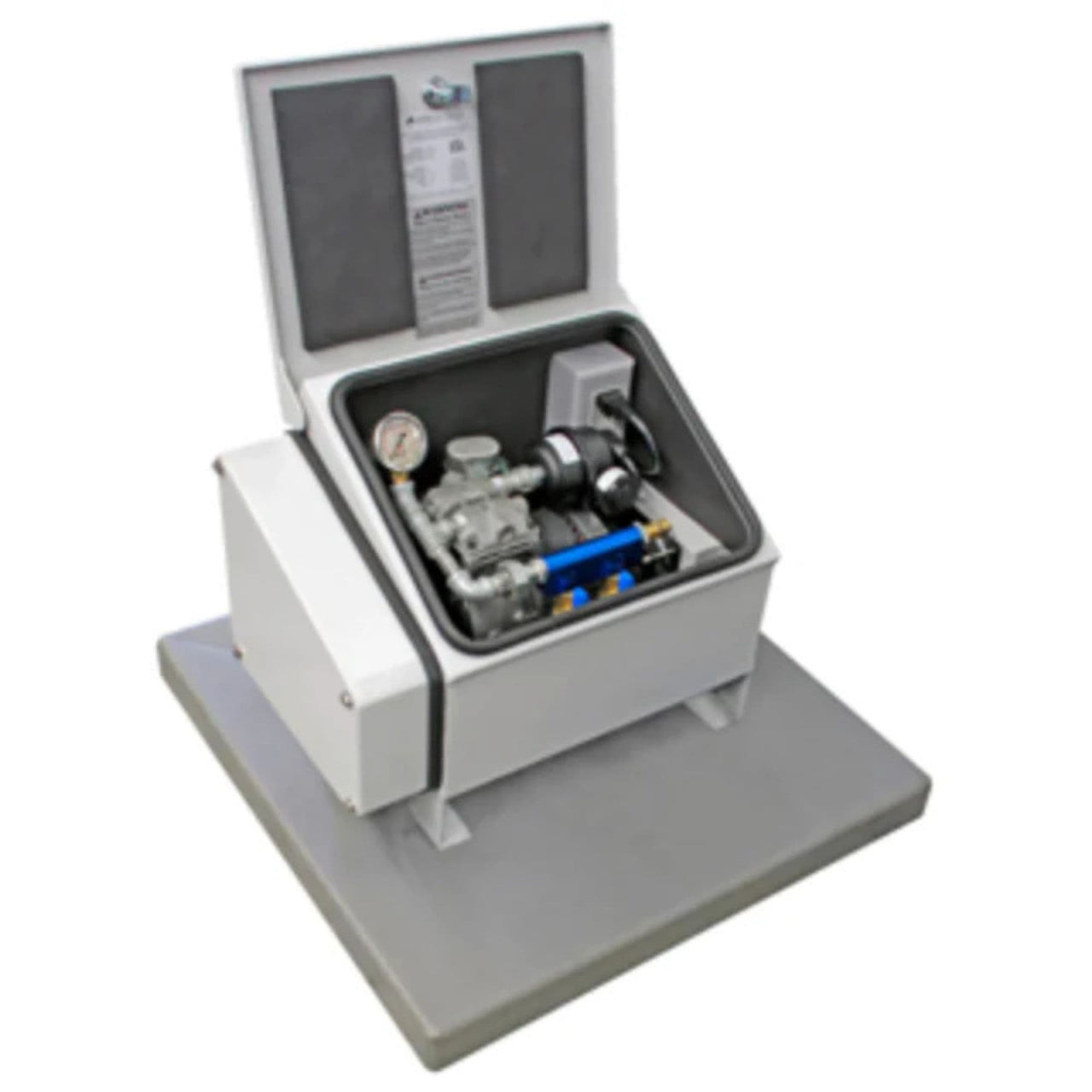

1- QuietAir Cabinet with cooling fan

Technical Specifications

SUPER-DUTY BROOKWOOD™ COMPRESSOR

3-year Vertex warranty (excluding wearable parts: air filters and compressor maintenance kits)

• UL, 115v or 230v, 2 Cycle, 4.3 CFM Š
• Built for continuous 24/7 operation Š
• Upgraded rotors, stators, valve plates, bearings and capacitors Š
• Vertex SafeStart™ Technology for auto restart under maximum rated pressure without motor damage Š
• Thermal overload protection Š
• Oil-free, and require no lubrication Š
• 2-3 year extended duty cycle between scheduled maintenance

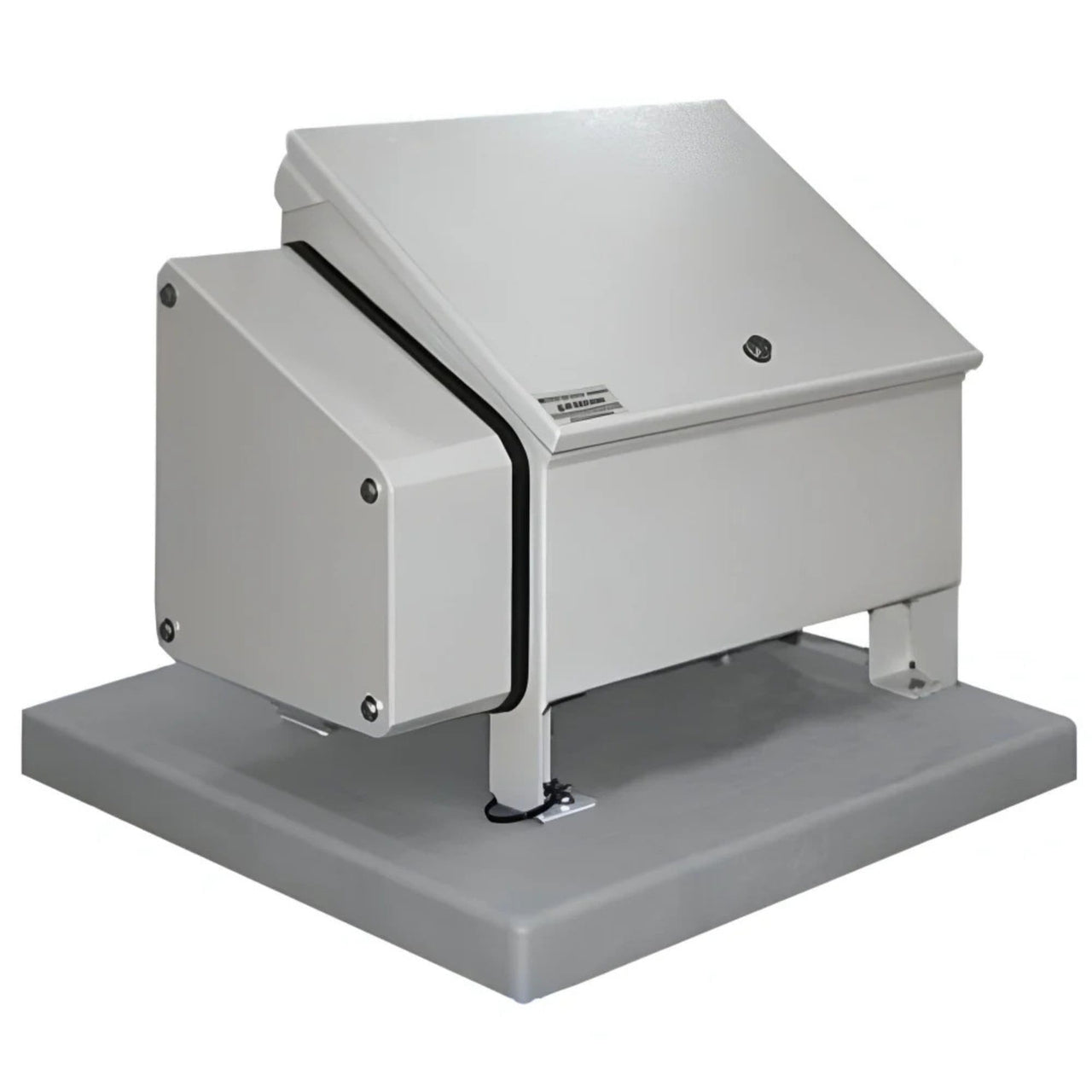

QUIETAIR™ CABINET

Limited lifetime warranty against rust

• Powder coated aluminum for a durable attractive finish Š
• Equipped with a stamped ventilation grill Š
• High capacity 140 CFM fan Š
• Class "A" GFCI Protection on compressor and fan circuits Š
• Quick disconnect switch included Š
• Easy access design with cam lock Š
• Easy plug-in connection to waterside electrical service Š
• Heavy duty, light weight mounting pad included Š

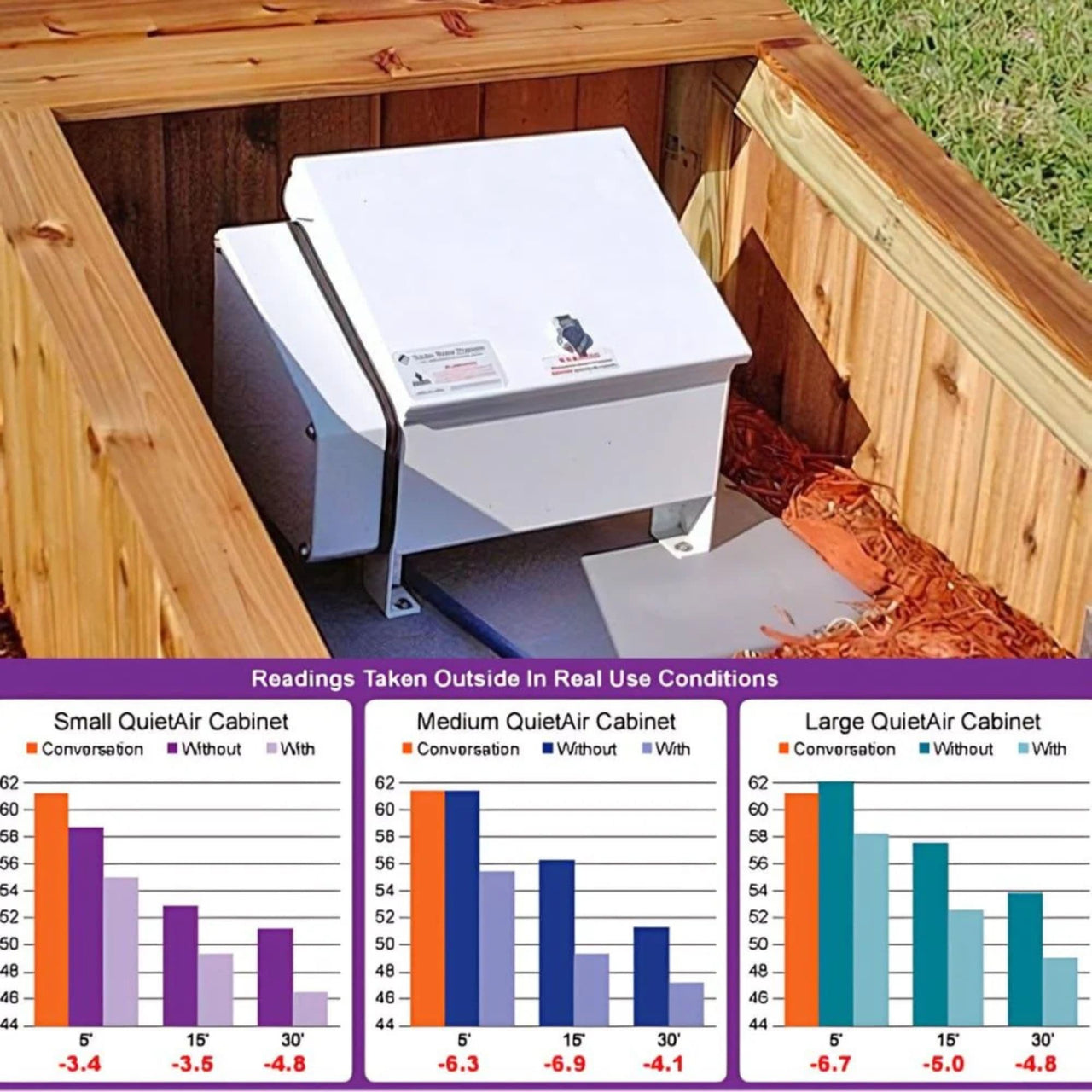

• Optional muffler box and additional insulation

BOTTOMLINE™ SUPPLY TUBING

15-year Vertex warranty

• Available in 50', 100', 250' and 500' spools
• Self-weighted for easy installation
• Flexible PVC composite direct burial and submersible tubing
• Use with standard PVC solvent weld cement and insert fittings
• High wall thickness for durability and protection from punctures
• Remains flexible in cold temperatures.
• Over-sized I.D. for high flow

SELF-SINKING AIRSTATION

5-year "No Questions" warranty

• Includes three XL2 self-cleaning, sinking airstation (shown in picture)
• Made of powder-coated stainless steel
• Designed to prevent settling into soft bottom sediments.
• Adjustable diffuser risers accommodate any site requirements

Manuals

Vertex Air 3 XL2 Aeration System Product Sheet
