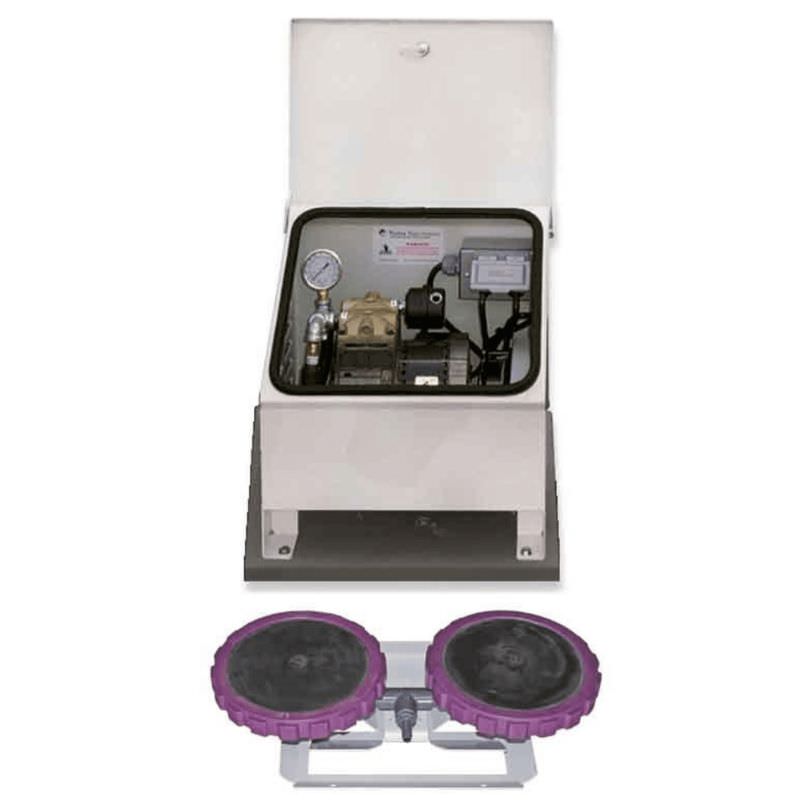

Vertex Air 1 XL2 Pond Aeration System With Diffusers Front View

Vertex Air 2 With Opened Compressor Top View And Diffuser

Vertex Air 3 XL2 Pond Aeration System With Opened Compressor Top View And Diffuser

Vertex Air 4 With Opened Compressor Top View And Diffuser

Vertex Air 5 XL2 Pond Aeration System With Opened Compressor Top View And Diffuser

Vertex Air 6 XL2 Pond Aeration System Top View And Diffuser

Vertex Air 3 XL2 Pond Aeration System With Cabinet Compressor Actual Installation

Vertex Air 2 XL2 Pond Aeration System With Opened Cabinet Compressor

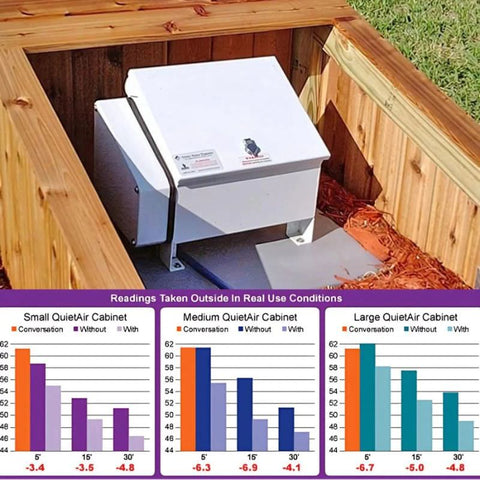

Vertex Air 1 XL2 Pond Aeration System With Sound Kit Diagram

Vertex Air 4 XL2 Pond Aeration System With Sound Kit

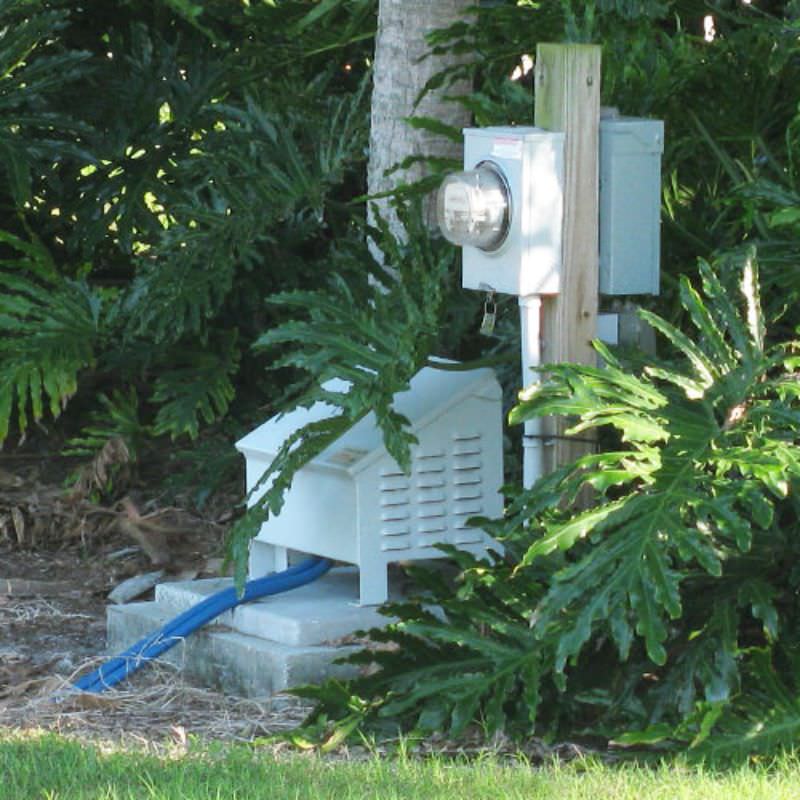

Vertex Air 1 XL2 Pond Aeration System Cabinet Next To Green Bushes

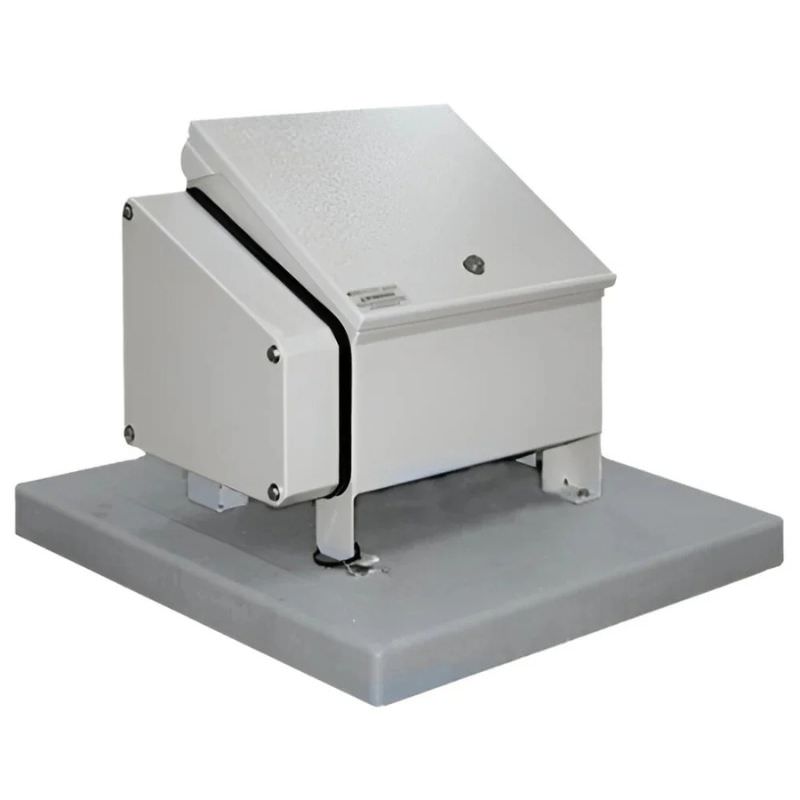

Vertex Air 1 XL2 Pond Aeration System With Cabinet Compressor

Vertex Air XL2 Pond Aeration System

$2,731.00

Model

Power & Sound Kit

Weighted Tubing

Need Help? Call To Speak To An Expert: 833-936-3231

Found a Better Price? We’ll Beat It — Call Us Today!

Free Shipping On All Orders

Estimated Delivery Between 4 and 6.

Description Shipping

Vertex Air XL2 Pond Aeration System: Bottom Diffused Aeration for Ponds and Lakes

The Vertex Air XL2 is a bottom-diffused aeration system for ponds and lakes. A QuietAir™ cabinet on shore houses a Brookwood compressor that pushes air through weighted tubing to XL2 AirStations on the pond bottom. The rising bubbles circulate the whole water column, adding oxygen, cutting muck and algae, and keeping fish healthy year round.

• Six Sizes: Air 1 through Air 6, with one to six XL2 AirStations. The number in the model name is the number of AirStations.

• 115V or 230V: Every model comes in either voltage.

• Self-Cleaning Diffusers: Each XL2 AirStation carries two 9″ membrane disks on a stainless steel base that won't sink into soft sediment.

• Optional Add-Ons: Sound Reduction Kit and BottomLine self-weighted tubing in 50, 100, 250 or 500 ft.

• Built to Order: Systems ship 100% factory assembled.

Which Vertex Air XL2 System Do I Need? Air 1 to Air 6

Model	Recommended Pond Size	AirStations	Diffuser Disks	Compressor	Air Output	QuietAir™ Cabinet
Air 1	Up to 1 acre	1	2	1/3 HP, 1 cylinder	2.5 CFM	Small
Air 2	Up to 2 acres	2	4	1/2 HP, 2 cylinders	4.3 CFM	Medium
Air 3	Up to 3 acres	3	6	1/2 HP, 2 cylinders	4.3 CFM	Medium
Air 4	Up to 4 acres	4	8	1 HP, 4 cylinders	8.6 CFM	Large
Air 5	Up to 5 acres	5	10	1 HP, 4 cylinders	8.6 CFM	Large
Air 6	Up to 6 acres	6	12	1 HP, 4 cylinders	8.6 CFM	Large

Pond sizes are a guide for a typical pond 9 to 20 ft deep, about one AirStation per acre. Long, narrow or irregular ponds need more AirStations. Need two AirStations on the Small cabinet? See the Vertex Air 1 Plus XL2. Contact us with your pond size, shape and depth for a free aeration design from Vertex.

What Comes With a Vertex Air XL2 Aeration System

Vertex Air 2 XL2 QuietAir cabinet opened, showing the Brookwood compressor

QuietAir™ Cabinet and Compressor

Brookwood oil-less piston compressor (1/3, 1/2 or 1 HP), cooling fan, GFCI protection, quick-disconnect switch and a valved aluminum manifold with one valve per AirStation. Mounting pad included.

Vertex Air 1 XL2 aeration system with XL2 AirStation diffuser

XL2 AirStations

One per model number (Air 3 = 3 AirStations). Two 9″ self-cleaning membrane disks on a weighted stainless steel base. Best depth 9 to 20 ft.

Vertex BottomLine self-weighted tubing, coiled

Weighted Tubing (Optional)

BottomLine self-weighted tubing, 0.58″ ID, in 50, 100, 250 or 500 ft. Each AirStation needs its own run. Extra runs: Vertex BottomLine™ Self-Weighted Tubing.

Vertex Air 4 XL2 cabinet with Sound Reduction Kit

Sound Reduction Kit (Optional)

Muffler box, sound insulation and Quiet Filter, sized to the cabinet: Small (Air 1), Medium (Air 2–3) or Large (Air 4–6).

Vertex Air XL2 Specifications

Spec	Details
Compressor	Brookwood oil-less piston compressor, 1/3 HP (Air 1), 1/2 HP (Air 2–3) or 1 HP (Air 4–6), 115V or 230V
AirStations	XL2 CoActive AirStation: two 9″ self-cleaning membrane disks on a weighted stainless steel base, one per model number
Best Depth for XL2 AirStations	9 to 20 ft
Cabinet	QuietAir™ powder-coated aluminum cabinet with cooling fan, Class "A" GFCI protection and quick-disconnect switch
Sound Reduction Kit (Optional)	Muffler box, sound insulation and Quiet Filter sized to the cabinet: Small (Air 1), Medium (Air 2–3), Large (Air 4–6)
Weighted Tubing (Optional)	BottomLine self-weighted tubing, 0.58″ ID, in 50, 100, 250 or 500 ft

Vertex Air XL2 Warranty

Component	Warranty
XL2 AirStations	5 years
Compressor system	3 years
BottomLine tubing	15 years
QuietAir™ cabinet	Lifetime against rust

How Much Weighted Tubing Do I Need?

Each AirStation needs its own run of weighted tubing from the cabinet. Measure the distance from the cabinet to each AirStation location and add them up. The tubing option adds one box or spool of the selected length; for multiple AirStations or long runs, add more Vertex BottomLine™ Self-Weighted Tubing or contact us and we'll work it out with you.

Do I Need the Vertex Sound Reduction Kit?

Without the kit, a QuietAir™ cabinet runs at about the volume of normal conversation. If the cabinet will sit near a patio, bedroom window or neighbor, add the Sound Reduction Kit. It is sized to the cabinet, so the price differs by model.

Before You Order a Vertex Air XL2 Aeration System

Choose the model by the number of AirStations your pond needs. Not sure? Send us your pond size, shape and depth for a free aeration design from Vertex.
XL2 AirStations work best at 9 to 20 ft deep.
Match the voltage (115V or 230V) to the power at the cabinet location.

Each AirStation needs its own tubing run. The tubing option adds one box or spool; order more for multiple or long runs.
Add the Sound Reduction Kit if the cabinet will sit near a patio, window or neighbor.
Systems are built to order and ship 100% factory assembled.
