ProLake Diffused Aeration System for Ponds and Lakes From 1 to 16 Acres

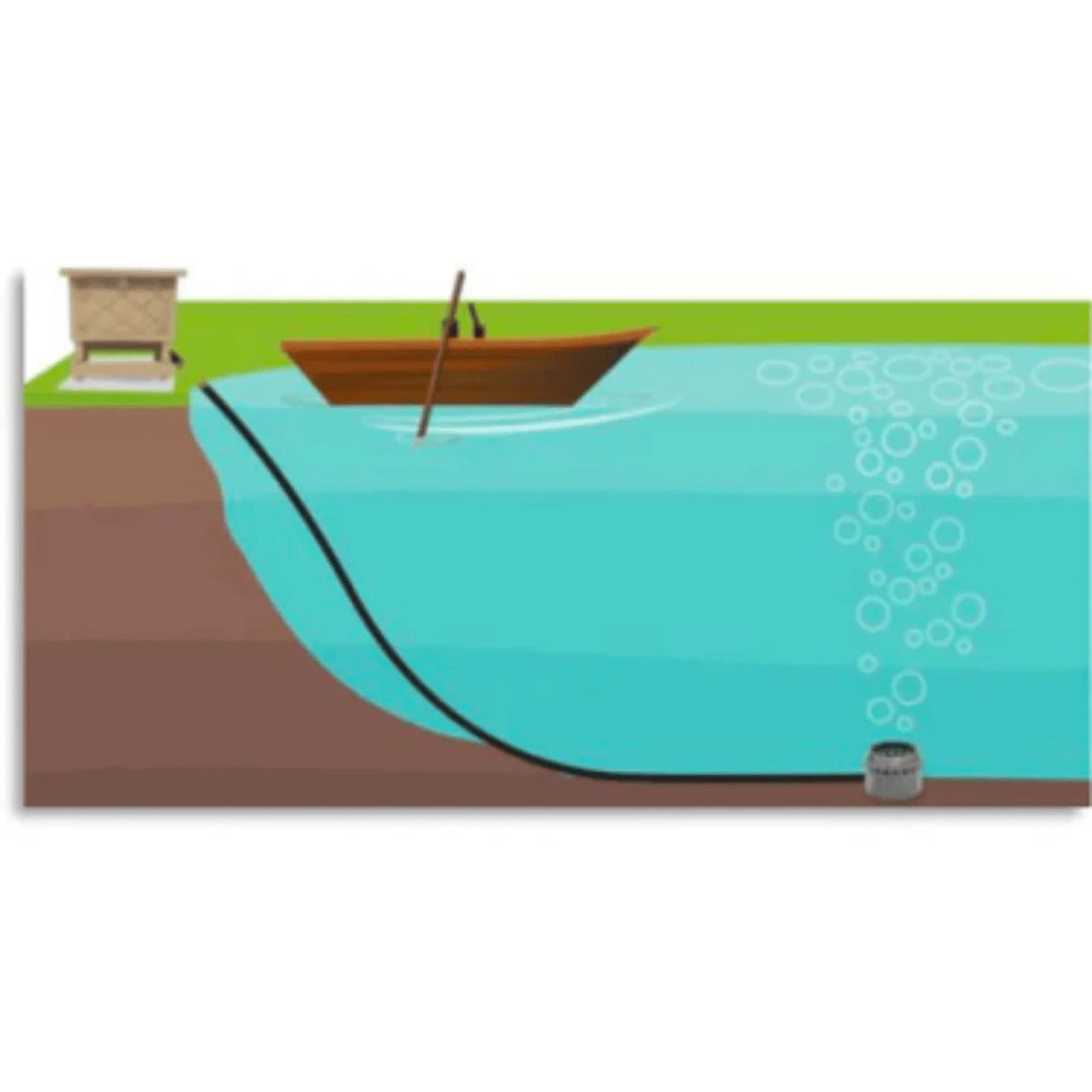

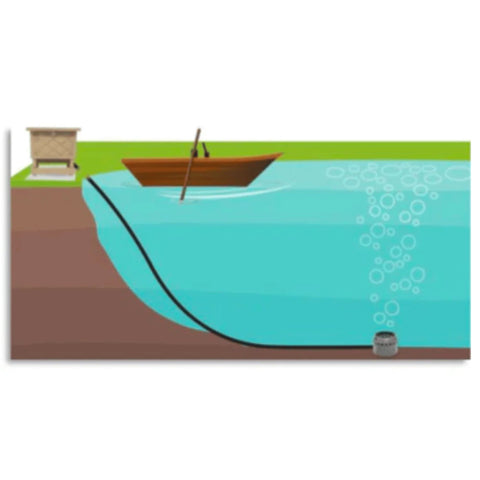

The Keeton ProLake is a bottom-diffused pond aerator for ponds and lakes from 1 to 16 surface acres. A sound-deadening cabinet on shore houses one to four ½ HP AerFlow™ compressors that push air through weighted airline to Duraplate™ diffusers on the pond bottom. The rising bubbles circulate the whole water column, raising oxygen, cutting muck and algae and protecting fish year round.
• Sized to Your Pond: ProLake 1.1 to 4.16, with 1 to 16 diffusers. Each diffuser covers about 1 surface acre.
• 115V or 230V: every model comes in either voltage at the same price.
• Weighted Tubing Option: ProLake 1.1–1.4, 2.5 and 2.6 can include ½″ Alpine™ self-weighted airline, 100 ft per diffuser (100 to 600 ft in total).
• Duraplate™ Diffusers: fishhook-resistant, self-cleaning and non-clogging, with a lifetime warranty.

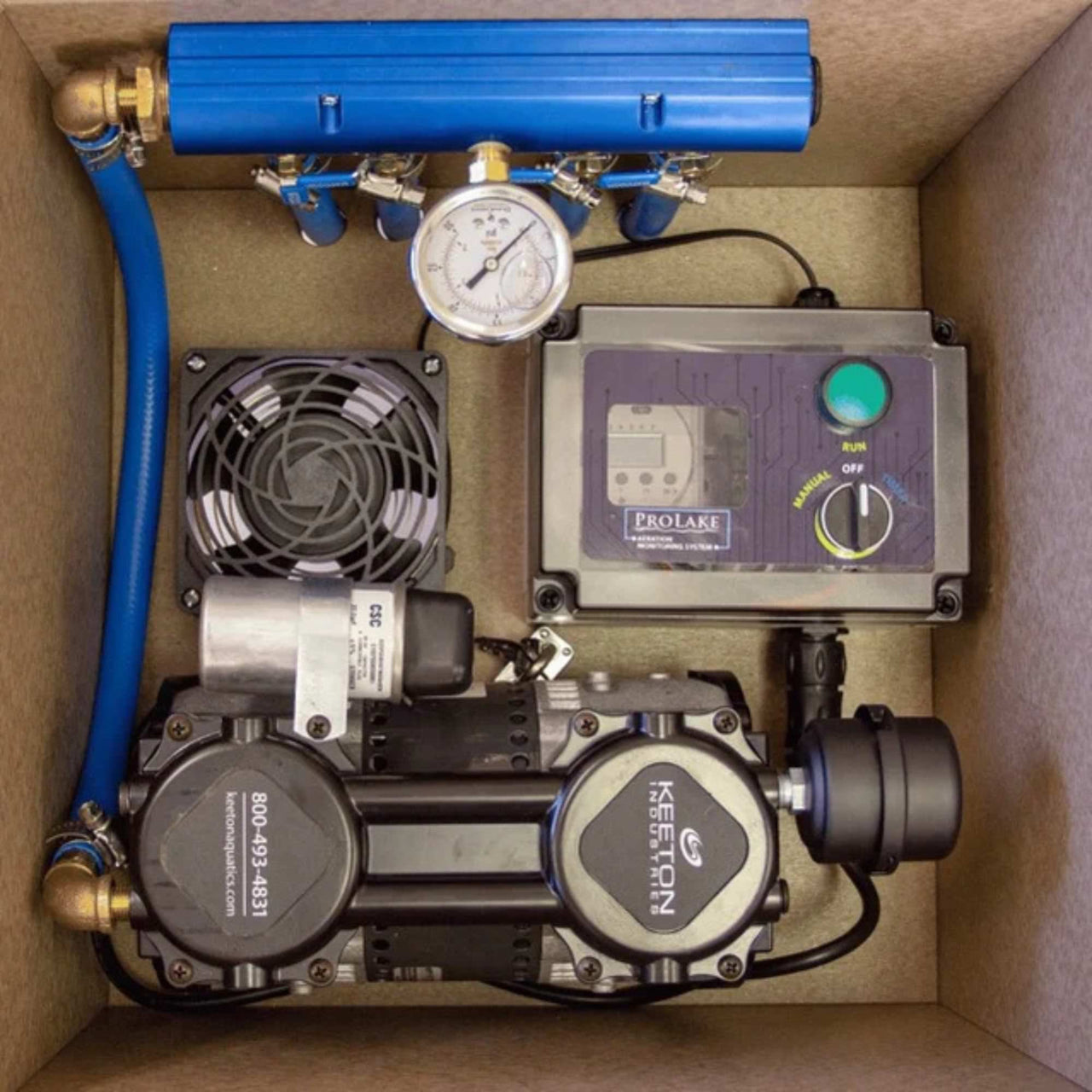

• Quiet, Protected Cabinet: sound-deadening cabinet with cooling fan, programmable timer, manifold and pressure gauge.
• ProLake 1 Cabinet Only: replace an existing ProLake 1 cabinet or pair it with your own diffusers.
Which ProLake Aerator Do I Need? ProLake 1.1 to 4.16
| Model | Pond Size | Compressors | Diffusers | Max Air Output | Cabinet (W × L × H) | Weighted Tubing Option |
| ProLake 1.1 | Up to 1 acre | 1 × ½ HP | 1 | 5.3 CFM | 18" × 18" × 17" | 100 ft |
| ProLake 1.2 | Up to 2 acres | 1 × ½ HP | 2 | 5.3 CFM | 18" × 18" × 17" | 200 ft |
| ProLake 1.3 | Up to 3 acres | 1 × ½ HP | 3 | 5.3 CFM | 18" × 18" × 17" | 300 ft |
| ProLake 1.4 | Up to 4 acres | 1 × ½ HP | 4 | 5.3 CFM | 18" × 18" × 17" | 400 ft |
| ProLake 1 Cabinet Only | Replacement cabinet | 1 × ½ HP | None | 5.3 CFM | 18" × 18" × 17" | Not available |
| ProLake 2.4 | Up to 4 acres | 2 × ½ HP | 4 | 10.6 CFM | 24" × 24" × 16" | Sold separately |
| ProLake 2.5 | Up to 5 acres | 2 × ½ HP | 5 | 10.6 CFM | 24" × 24" × 16" | 500 ft |
| ProLake 2.6 | Up to 6 acres | 2 × ½ HP | 6 | 10.6 CFM | 24" × 24" × 16" | 600 ft |
| ProLake 2.7 | Up to 7 acres | 2 × ½ HP | 7 | 10.6 CFM | 24" × 24" × 16" | Sold separately |
| ProLake 2.8 | Up to 8 acres | 2 × ½ HP | 8 | 10.6 CFM | 24" × 24" × 16" | Sold separately |
| ProLake 3.6 | Up to 6 acres | 3 × ½ HP | 6 | 15.9 CFM | 40" × 24" × 24" | Sold separately |
| ProLake 3.7 | Up to 7 acres | 3 × ½ HP | 7 | 15.9 CFM | 40" × 24" × 24" | Sold separately |
| ProLake 3.8 | Up to 8 acres | 3 × ½ HP | 8 | 15.9 CFM | 40" × 24" × 24" | Sold separately |
| ProLake 3.9 | Up to 9 acres | 3 × ½ HP | 9 | 15.9 CFM | 40" × 24" × 24" | Sold separately |
| ProLake 3.10 | Up to 10 acres | 3 × ½ HP | 10 | 15.9 CFM | 40" × 24" × 24" | Sold separately |
| ProLake 3.11 | Up to 11 acres | 3 × ½ HP | 11 | 15.9 CFM | 40" × 24" × 24" | Sold separately |
| ProLake 3.12 | Up to 12 acres | 3 × ½ HP | 12 | 15.9 CFM | 40" × 24" × 24" | Sold separately |
| ProLake 4.8 | Up to 8 acres | 4 × ½ HP | 8 | 21.2 CFM | 40" × 24" × 24" | Sold separately |
| ProLake 4.9 | Up to 9 acres | 4 × ½ HP | 9 | 21.2 CFM | 40" × 24" × 24" | Sold separately |
| ProLake 4.10 | Up to 10 acres | 4 × ½ HP | 10 | 21.2 CFM | 40" × 24" × 24" | Sold separately |
| ProLake 4.11 | Up to 11 acres | 4 × ½ HP | 11 | 21.2 CFM | 40" × 24" × 24" | Sold separately |
| ProLake 4.12 | Up to 12 acres | 4 × ½ HP | 12 | 21.2 CFM | 40" × 24" × 24" | Sold separately |
| ProLake 4.13 | Up to 13 acres | 4 × ½ HP | 13 | 21.2 CFM | 40" × 24" × 24" | Sold separately |
| ProLake 4.14 | Up to 14 acres | 4 × ½ HP | 14 | 21.2 CFM | 40" × 24" × 24" | Sold separately |
| ProLake 4.15 | Up to 15 acres | 4 × ½ HP | 15 | 21.2 CFM | 40" × 24" × 24" | Sold separately |
| ProLake 4.16 | Up to 16 acres | 4 × ½ HP | 16 | 21.2 CFM | 40" × 24" × 24" | Sold separately |
The first number is the series (number of compressors) and the number after the dot is the number of diffusers. A ProLake 2.6 has two compressors and six diffusers. Plan about one diffuser per surface acre.
Compare the ProLake 1, 2, 3 and 4 Aerator Cabinets

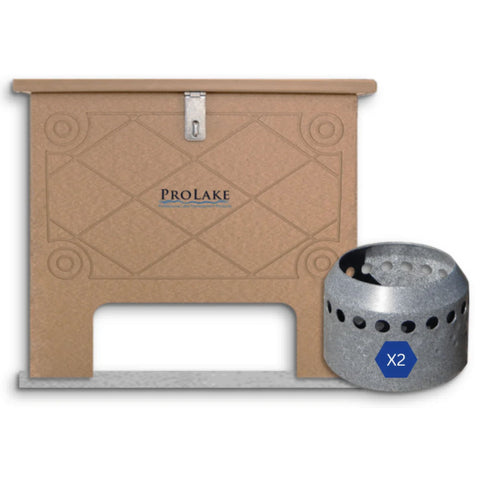

ProLake 1 Series (1.1 to 1.4)
One ½ HP AerFlow™ compressor, 5.3 CFM, 1 to 4 diffusers for ponds up to 4 acres. 18" × 18" × 17" cabinet. Also sold as a cabinet only.

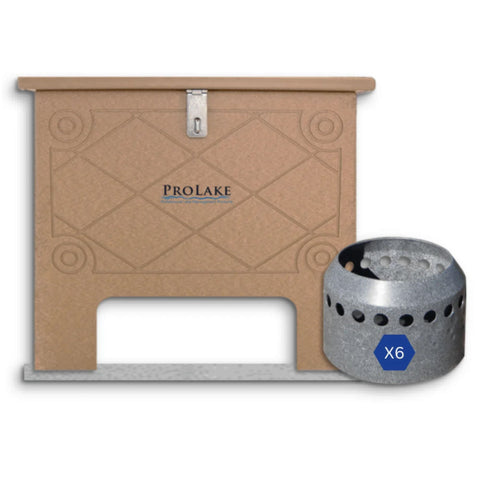

ProLake 2 Series (2.4 to 2.8)
Two ½ HP AerFlow™ compressors, 10.6 CFM, 4 to 8 diffusers for ponds up to 8 acres. 24" × 24" × 16" cabinet.
ProLake 3 Series (3.6 to 3.12)
Three ½ HP AerFlow™ compressors, 15.9 CFM, 6 to 12 diffusers for ponds up to 12 acres. 40" × 24" × 24" cabinet.

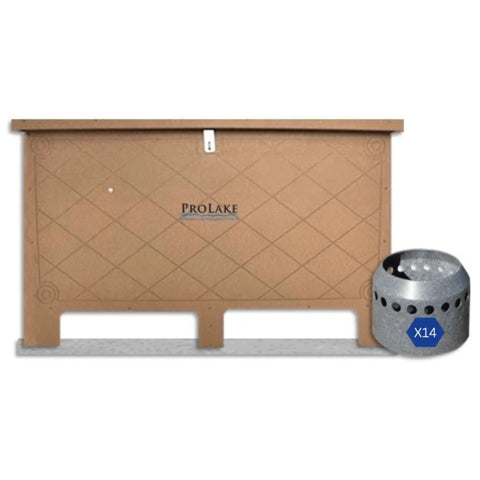

ProLake 4 Series (4.8 to 4.16)
Four ½ HP AerFlow™ compressors, 21.2 CFM, 8 to 16 diffusers for ponds up to 16 acres. 40" × 24" × 24" cabinet.
ProLake Diffused Aeration System Technical Specifications
| Feature | Detail |
| Compressor | ½ HP AerFlow™, 115V or 230V (1 to 4 per system) |
| Power Draw | 4.3 amps per compressor at 115V: 4.3 A (ProLake 1), 8.6 A (ProLake 2), 12.9 A (ProLake 3), 17.2 A (ProLake 4) |
| Maximum Operating Depth | 50 ft |
| Manifold | Brushed aluminum, up to 4 diffusers per compressor, with pressure gauge |
| Programmable Timer | Included |
| Cooling Fan | Included |
| Noise Level | 50–60 dB, sound-deadening cabinet with acoustical foam |
| Diffusers | 9" Duraplate™, fishhook-resistant, self-cleaning |
| Weighted Airline | Alpine™ ½" ID × 1" OD self-weighted. Included with the tubing option on ProLake 1.1–1.4, 2.5 and 2.6; sold separately for other models |
| Level-Aer™ Equipment Pad (Optional) | Small 24" × 24" (ProLake 1), Medium 30" × 30" (ProLake 2), Large 44" × 32" (ProLake 3 and 4) |
| Complete System Warranty | 2 years |
| Compressor Warranty | 2 years |
| Cabinet Warranty | 2 years |
| Duraplate™ Diffuser Warranty | Lifetime |
| Alpine™ Airline Warranty | Lifetime |

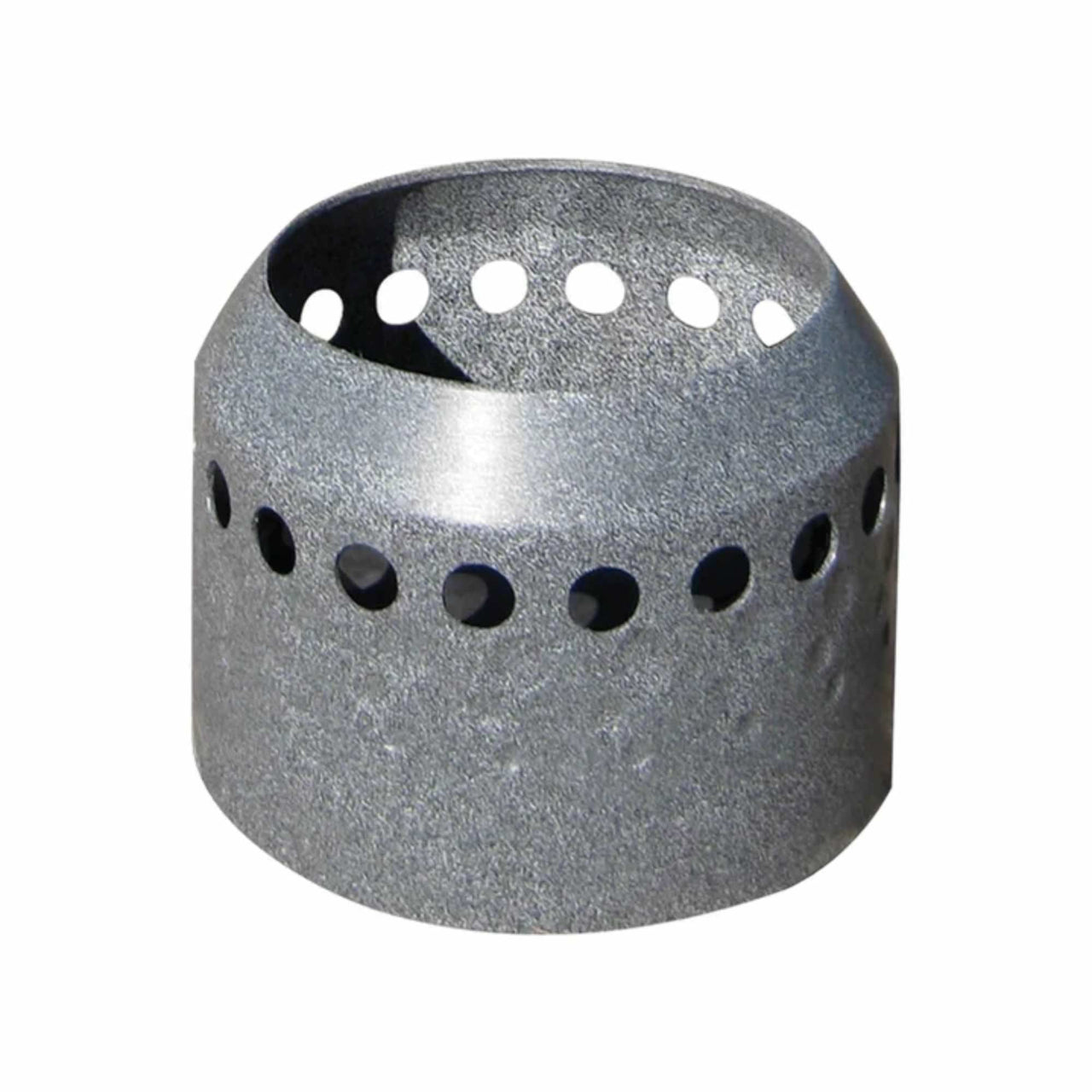

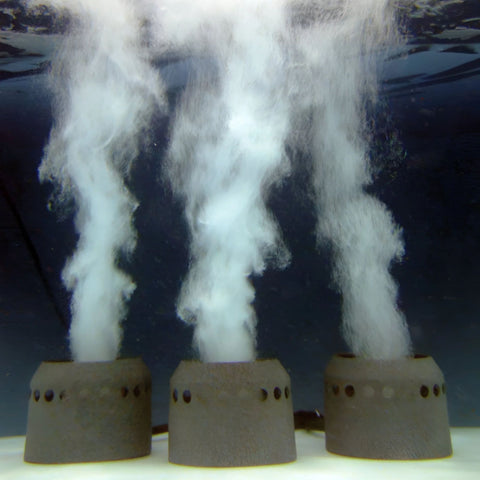

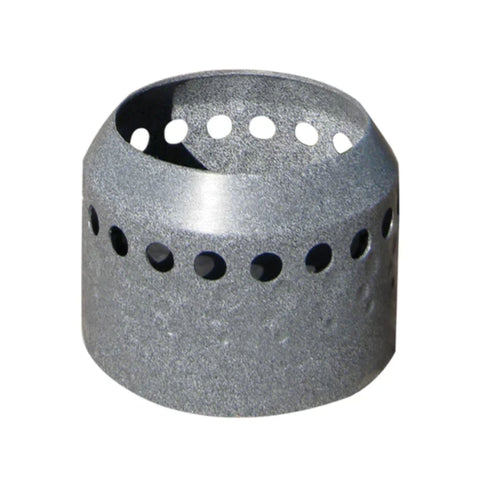

Duraplate™ Diffusers on Every Keeton ProLake Aerator

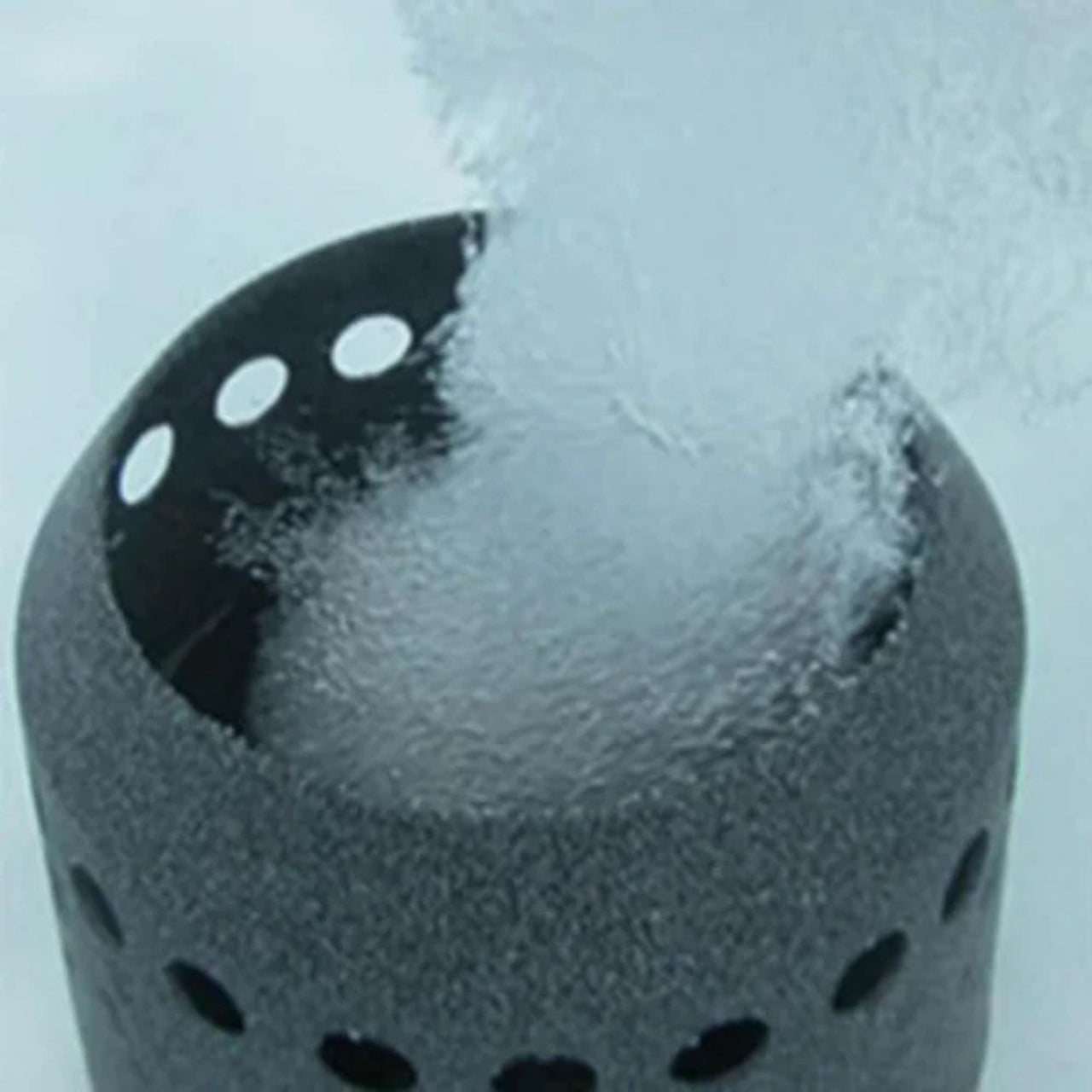

Every ProLake comes with Duraplate™ diffusers, one per diffuser in the model number. The fishhook-resistant, rotationally molded shell carries a lifetime warranty, and the self-cleaning, non-clogging design delivers a high oxygen transfer rate without ever needing to be pulled for cleaning.
• Maximum Operating Depth: 50 ft.
• Warranty: lifetime warranty on every Duraplate™ diffuser.

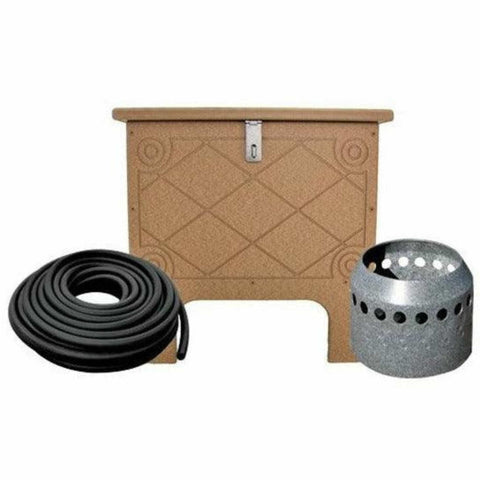

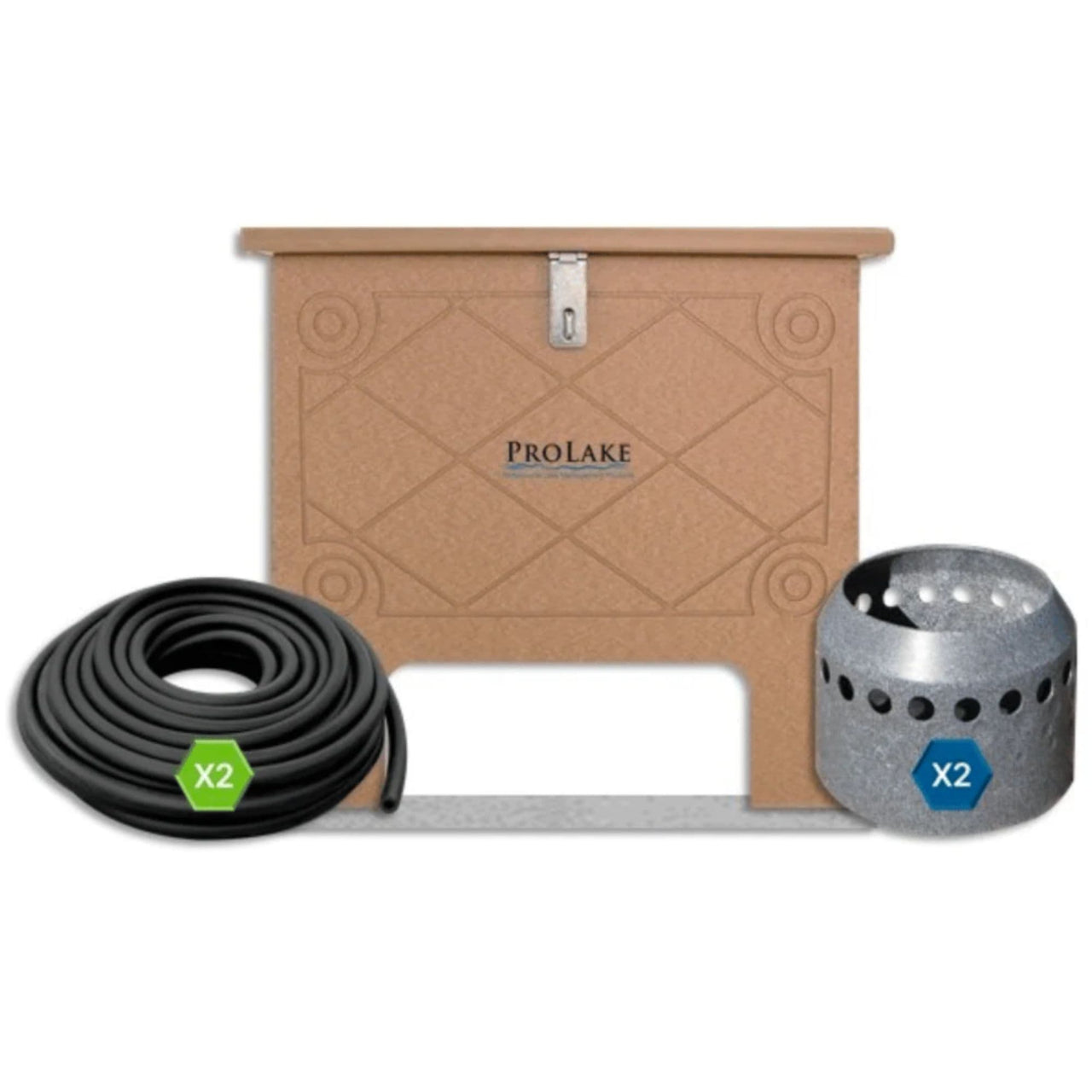

What Comes With a Keeton ProLake Diffused Pond Aerator
- Sound-deadening cabinet with cooling fan and programmable timer
- ½ HP AerFlow™ compressor(s), 115V or 230V
- Brushed aluminum manifold with pressure gauge
- Duraplate™ diffusers, one per diffuser in the model number (not included with Cabinet Only)
- With the tubing option (ProLake 1.1–1.4, 2.5 and 2.6): 100 ft of ½″ Alpine™ self-weighted airline per diffuser
Weighted Airline, Equipment Pad and Remote Manifold for Your ProLake Aerator

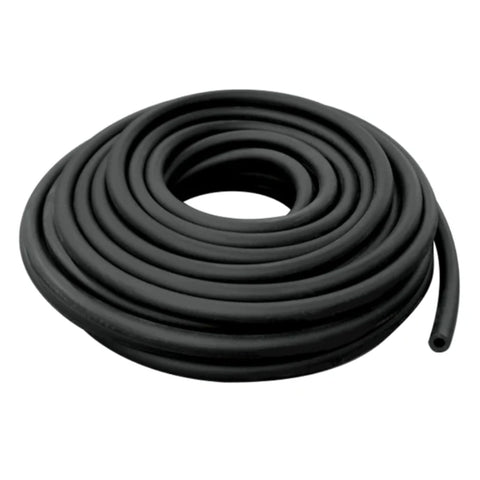

Alpine™ Self-Weighted Airline
Each diffuser needs its own run of weighted airline from the cabinet. Alpine™ ½″ airline sinks straight to the bottom, resists kinks and has a ¼″ thick sidewall. Sold in 100 ft boxes or a 500 ft continuous reel. The tubing option on ProLake 1.1–1.4, 2.5 and 2.6 includes 100 ft per diffuser; all other models ship without airline so you can order exactly what your layout needs.

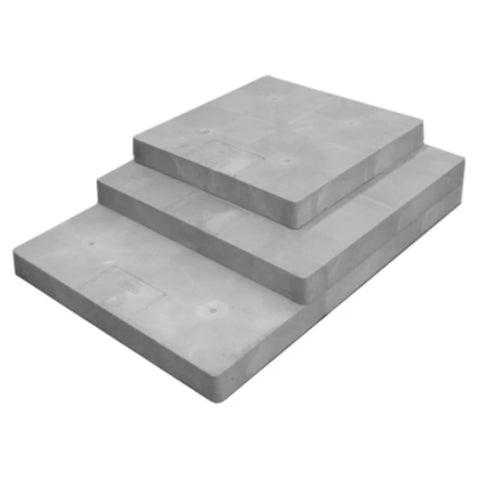

Level-Aer™ Equipment Pad
A sturdy high-density plastic base for the cabinet, with no concrete or heavy construction needed. Small 24″ × 24″ for ProLake 1, Medium 30″ × 30″ for ProLake 2, Large 44″ × 32″ for ProLake 3 and 4.

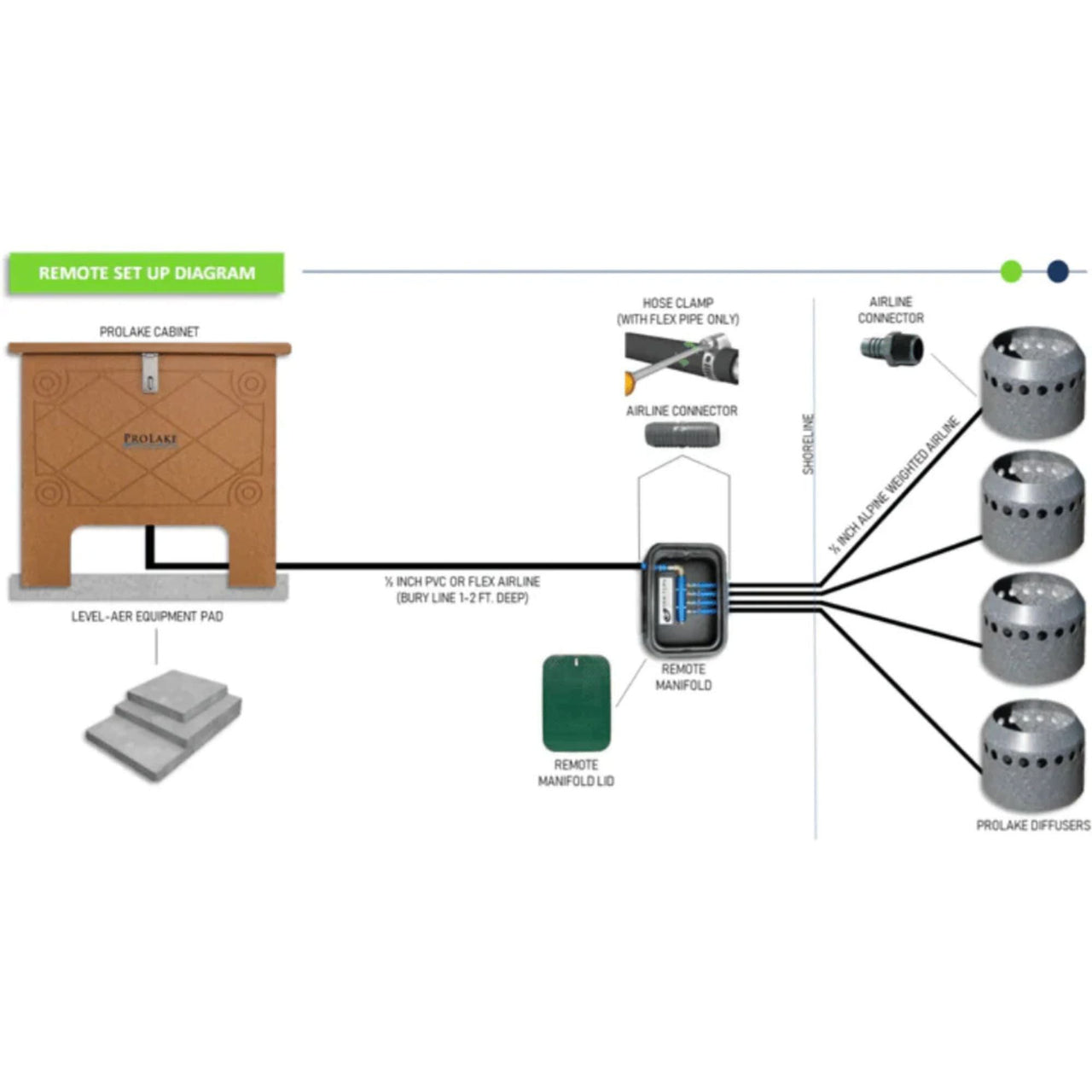

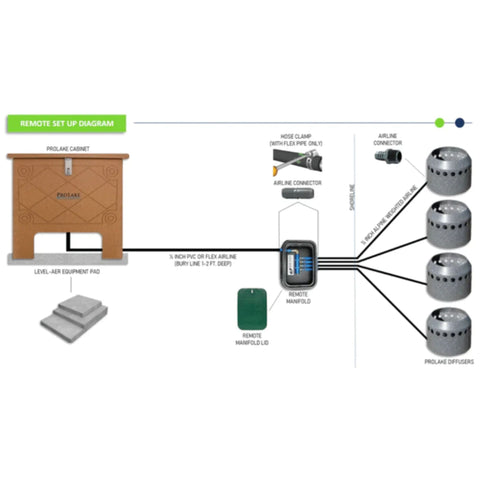

ProLake Remote Manifold
Only needed when the cabinet sits several hundred feet from the water. Available in 4-valve and 8-valve versions. For a cabinet at the shoreline or about 100 ft away, run the airline straight from the cabinet.
Before You Order a Keeton ProLake Aerator
- Pick the model by surface acres: about one diffuser per acre.
- Choose 115V or 230V to match the power at the cabinet location.
- Tubing bundles include 100 ft per diffuser. Longer runs need extra airline.
- ProLake 2, 3 and 4: contact us for a free pond layout to place diffusers and figure airline lengths.

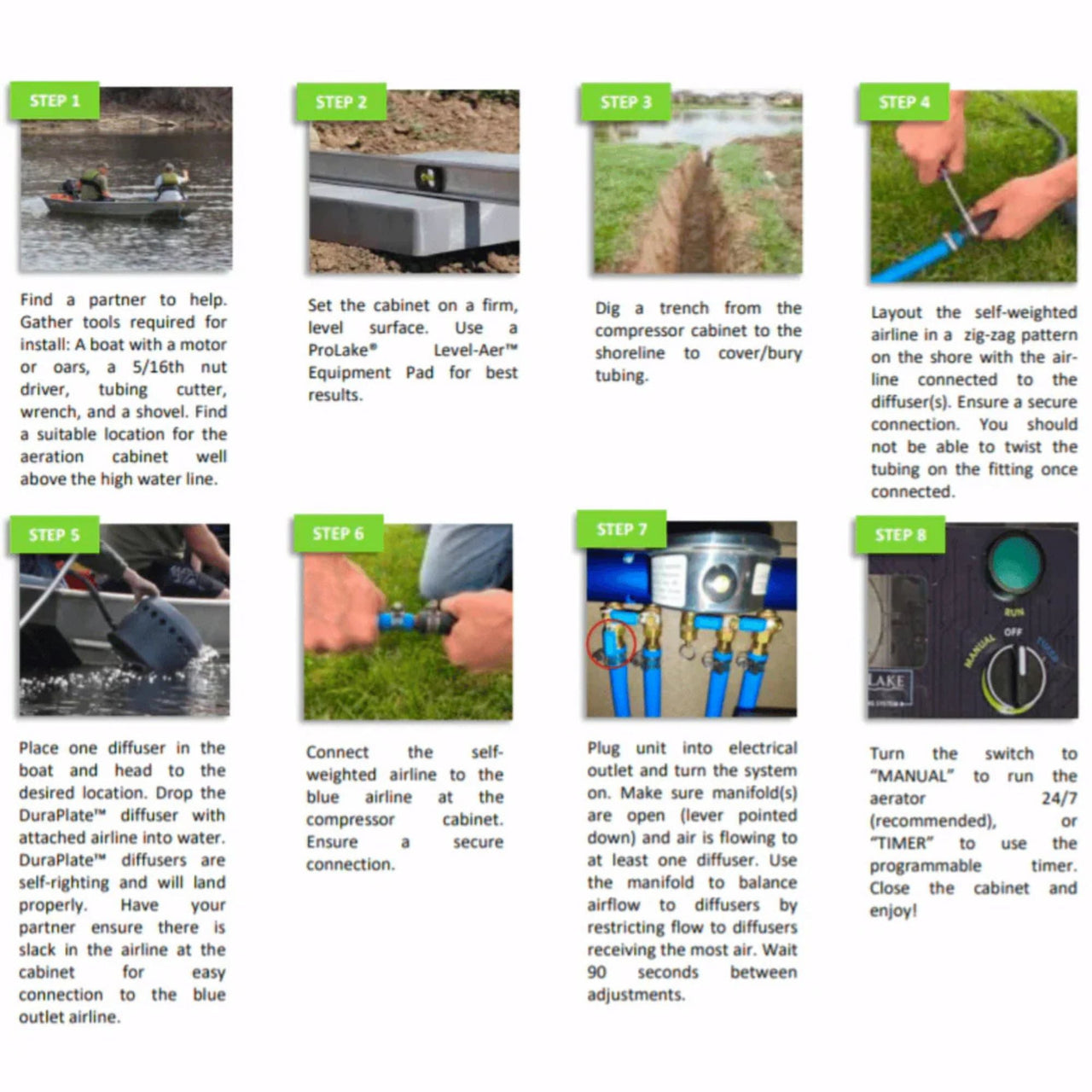

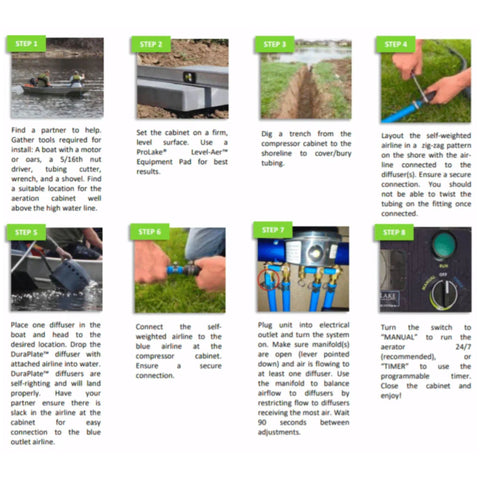

ProLake Aerator Installation Manuals and Product Data Sheets
