Make Pond Aeration Adjustments Easier With ProLake Remote Manifold
The ProLake Remote Manifold lets you power your pond aeration system from an existing electrical outlet, even when electricity isn't available near the shoreline. With the ProLake Remote Manifold, you can keep your compressor cabinet closer to your house while delivering air to multiple diffusers through a convenient, centralized distribution system up to 4,000 feet away.
• Aerate Your Pond Without Shoreline Electricity: Keep your compressor cabinet near an existing power source instead of installing electrical service at the water's edge.
• Simplify Your Airline Installation: Run one main supply line from your cabinet to the shoreline manifold, eliminating the need for separate long-distance supply lines to every diffuser.
• Control Airflow Right at the Pond: Adjust airflow to individual diffusers from one convenient location, making it easier to manage your aeration system.
• Choose the Right Setup for Your Pond: Select a 4-valve or 8-valve manifold to accommodate different diffuser layouts and aeration needs.
• Enjoy Durable, Convenient Operation: The sturdy HDPE junction box and brass fittings provide lasting construction, while centralized airline connections make seasonal management and winter storage easier.
ProLake Remote Manifold: What's Included
Everything you need comes standard with your ProLake Remote Manifold!
- 1 ProLake Remote Manifold Assembly — 4-Valve or 8-Valve, Depending on Selected Model
- HDPE Junction Valve Box
- Brass Valve Fittings

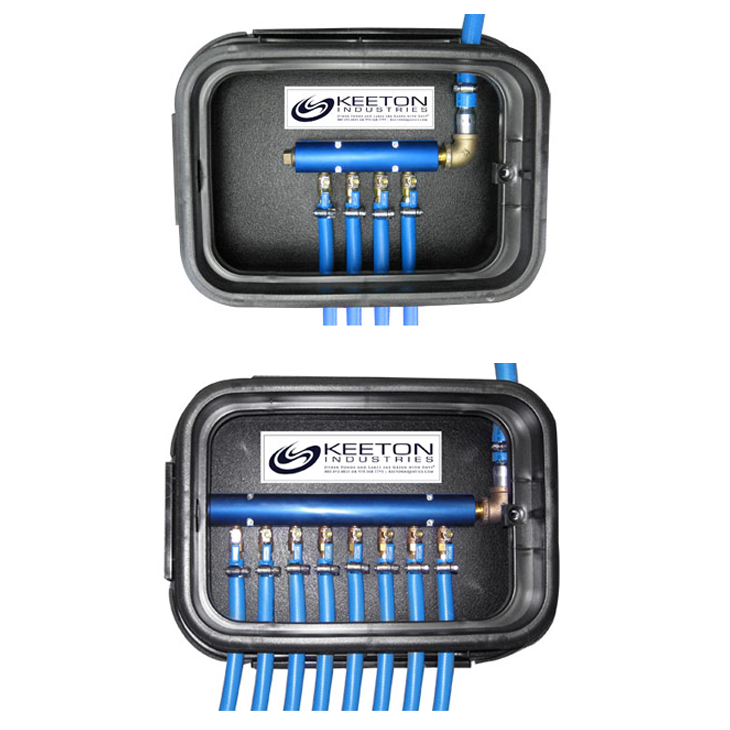

Available Models:

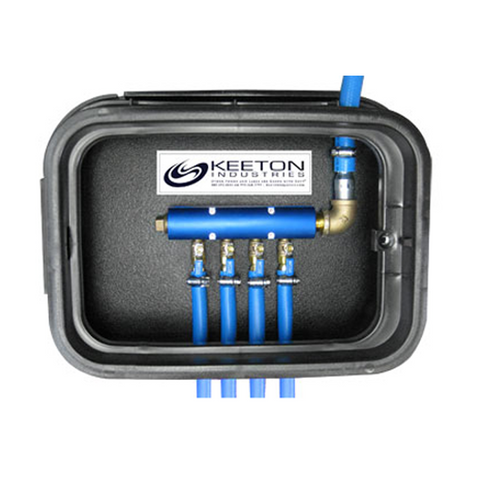

- 4-Valve Manifold (40.1052): Provides four individually adjustable airflow outlets.

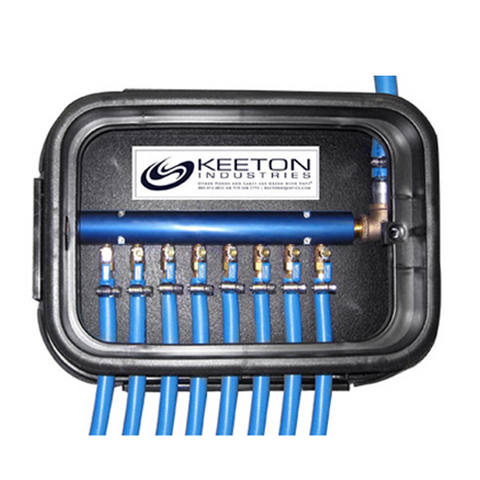

- 8-Valve Manifold (40.1053): Provides eight individually adjustable airflow outlets.
Note: The 3/4″ main supply line (PVC or flexible airline) from the compressor cabinet to the remote manifold is not included. Diffuser airlines and other aeration system components are not listed as included.
ProLake Remote Manifold Technical Specifications
| Specification | 4-Valve Model | 8-Valve Model |
| Product Type | Remote Aeration Manifold | Remote Aeration Manifold |
| Model Number | 40.1052 | 40.1053 |
| Valve Quantity | 4 | 8 |
| Inlet Size | 3/4″ (19.05 mm) | 3/4″ (19.05 mm) |
| Outlet Size | 1/2″ (12.70 mm) | 1/2″ (12.70 mm) |
| Maximum Distance From Cabinet | Up to 4,000 ft (1,219.2 m) | Up to 4,000 ft (1,219.2 m) |
| Junction Box Material | High-Density Polyethylene (HDPE) | High-Density Polyethylene (HDPE) |
| Compatible Diffuser Airline | ProLake Alpine 1/2″ Self-Weighted Tubing | ProLake Alpine 1/2″ Self-Weighted Tubing |
| Airflow Adjustment | Individual Valve Control | Individual Valve Control |
| Main Supply Line Included | No | No |
Important Installation Notes
- Position Your Compressor Conveniently: Keep the aeration cabinet near an existing electrical outlet and route a single main supply line to the remote manifold.
- Use the Correct Main Supply Line: Connect the cabinet to the manifold using a 3/4″ PVC or flexible airline supply line, purchased separately.
- Connect Your Diffuser Airlines: Use the 1/2″ outlets to connect compatible diffuser tubing, including ProLake Alpine 1/2″ Self-Weighted Tubing.
- Select the Appropriate Model: Choose four or eight valves based on the number of diffuser lines your aeration layout requires.
- Plan for Long-Distance Installations: The manufacturer specifies a maximum cabinet-to-manifold distance of up to 4,000 feet.
- FREE Shipping via FEDEX, LTL Ground, & UPS. Ships in 2-3 Business Days.
- Ships Only to Lower 48 States of the United States
