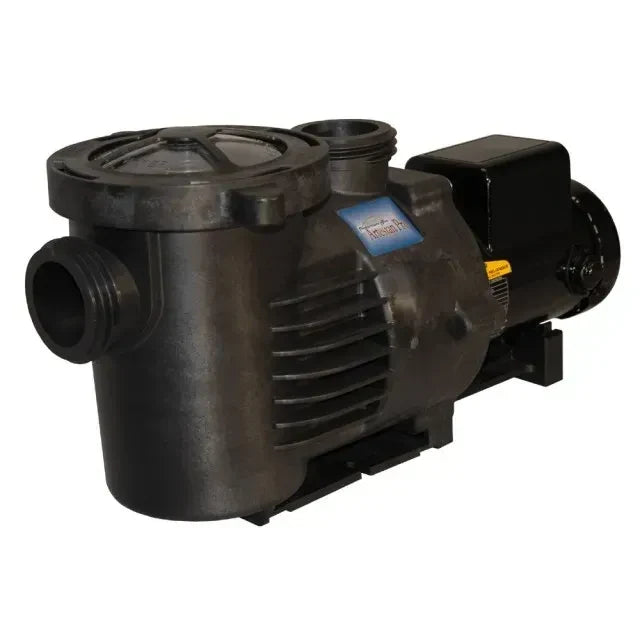

GCTek ArtesianPro Pump by PerformancePro
The PerformancePro ArtesianPro Pond Pump is the high-volume external pump in the GC Tek lineup, rated from 6,600 GPH on the 1/4 HP Low RPM model up to 19,740 GPH on the 5 HP High Flow. GC Tek fits it to its all-3″ MegaSystem3 to move lots of water on little energy. Choose from Low RPM, High Flow (HF), High Head (HH) and DAF variable speed series, with 2″ or 3″ unions.
• Low RPM Series: 1/4 to 1 HP, rated 6,600 to 13,020 GPH on 370 to 1,200 watts.
• High Flow Series: 1/2 to 5 HP at 3450 RPM, up to 19,740 GPH at 15′ of head.
• High Head Series: 1/2 to 5 HP at 3450 RPM, up to 17,220 GPH at 12′ of head.
• DAF Variable Speed: 0-1.6 HP and 0-3.45 HP in HF or HH versions, plus a 0-2.7 HP 230V model.
• 2″ or 3″ Unions: Quick-disconnect unions in the size you specify when ordering.
• Large Strainer Basket: Easy-open Lexan lid with a clamp ring that seals with very little o-ring wear.
ArtesianPro Low RPM Pump, High Flow or High Head: Which Fits?
Low RPM Series
Big flow on the least power for low-head systems: 6,600 to 13,020 GPH at 2′ to 7′, drawing 370 to 1,200 watts.
High Flow (HF) Series
The most water: 9,120 to 19,740 GPH at 5′ to 15′. The 1/2 to 1 HP models run on 115/230V; 1.5 HP and up are 230V.
High Head (HH) Series
For longer runs or more lift: up to 17,220 GPH at 12′ on the 5 HP. The 3/4 and 1 HP models run on 115/230V; 1.5 HP and up are 230V.
DAF Variable Speed
Adjustable speed in 0-1.6 HP or 0-3.45 HP (HF or HH version), or 0-2.7 HP on 230V.
ArtesianPro High Flow Pump and High Head Specs
| Model | Series | HP | Rated Flow | Power | Voltage |
| AP1/4-66 | Low RPM | 1/4 | 6,600 GPH @ 2′ | 370 W | Ask us |
| AP1/3-73 | Low RPM | 1/3 | 7,320 GPH @ 3′ | 460 W | Ask us |
| AP1/2-92 | Low RPM | 1/2 | 9,240 GPH @ 4′ | 620 W | Ask us |
| AP3/4-105 | Low RPM | 3/4 | 11,220 GPH @ 5′ | 1,020 W | Ask us |
| AP1-120 | Low RPM | 1 | 13,020 GPH @ 7′ | 1,200 W | Ask us |
| AP1/2-HF | High Flow | 1/2 | 9,120 GPH @ 5′ | 4.4 A @ 230V | 115/230V |
| AP3/4-HF | High Flow | 3/4 | 10,740 GPH @ 7′ | 5.6 A @ 230V | 115/230V |
| AP1-HF | High Flow | 1 | 13,380 GPH @ 7′ | 7.4 A @ 230V | 115/230V |
| AP1.5-HF | High Flow | 1.5 | 14,460 GPH @ 9′ | 8.8 A @ 230V | 230V |
| AP2-HF | High Flow | 2 | 15,360 GPH @ 10′ | 9.9 A @ 230V | 230V |
| AP3-HF | High Flow | 3 | 17,640 GPH @ 12′ | 13.2 A @ 230V | 230V |
| AP5-HF | High Flow | 5 | 19,740 GPH @ 15′ | 17.3 A @ 230V | 230V |
| AP1/2-HH | High Head | 1/2 | Ask us | Ask us | Ask us |
| AP3/4-HH | High Head | 3/4 | 8,340 GPH @ 3′ | 3.4 A @ 230V | 115/230V |
| AP1-HH | High Head | 1 | 9,780 GPH @ 4′ | 7.4 A @ 230V | 115/230V |
| AP1.5-HH | High Head | 1.5 | 10,980 GPH @ 5′ | 8.7 A @ 230V | 230V |
| AP2-HH | High Head | 2 | 12,480 GPH @ 7′ | 9.9 A @ 230V | 230V |
| AP3-HH | High Head | 3 | 13,380 GPH @ 7′ | 13.5 A @ 230V | 230V |
| AP5-HH | High Head | 5 | 17,220 GPH @ 12′ | 17.6 A @ 230V | 230V |
| AP1.6-DAF | DAF (HF or HH) | 0-1.6 | Variable | Variable | Ask us |
| AP2.7-DAF | DAF | 0-2.7 | Variable | Variable | 230V |
| AP3.45-DAF | DAF (HF or HH) | 0-3.45 | Variable | Variable | Ask us |
Rated flow is the GPH at the head shown. Pumps are priced without a power cord.
What Comes With the PerformancePro ArtesianPro
- ArtesianPro pump and motor in the model you choose
- Large strainer basket with easy-open Lexan lid
- Quick-disconnect unions in 2″ or 3″, your choice
Before You Order an ArtesianPro High Head Pump
- Specify 2″ or 3″ unions when you order, to match your plumbing.
- HF and HH pumps 1.5 HP and up, and the 0-2.7 HP DAF, are 230V. Have an electrician confirm your circuit.
- Power cord not included. An 8′ cord is available for models up to 1 HP.
- The 0-1.6 HP and 0-3.45 HP DAF pumps come as HF or HH. Tell us which one you need.
- Not sure which pump fits? Contact us with your pond size, filter and plumbing and we will help you size it.
- FREE Shipping via FEDEX, LTL Ground, & UPS. Ships in 2-3 Business Days.
- Ships Only to Lower 48 States of the United States
