Bog Filter: A Natural Filtration Engine
If your pond water tests clean for ammonia and nitrite but you still fight green water and string algae, the problem is almost certainly nitrate. Traditional mechanical filters trap debris but do nothing to remove dissolved nitrogen. That is why your water stays green no matter how often you rinse the foam pads.

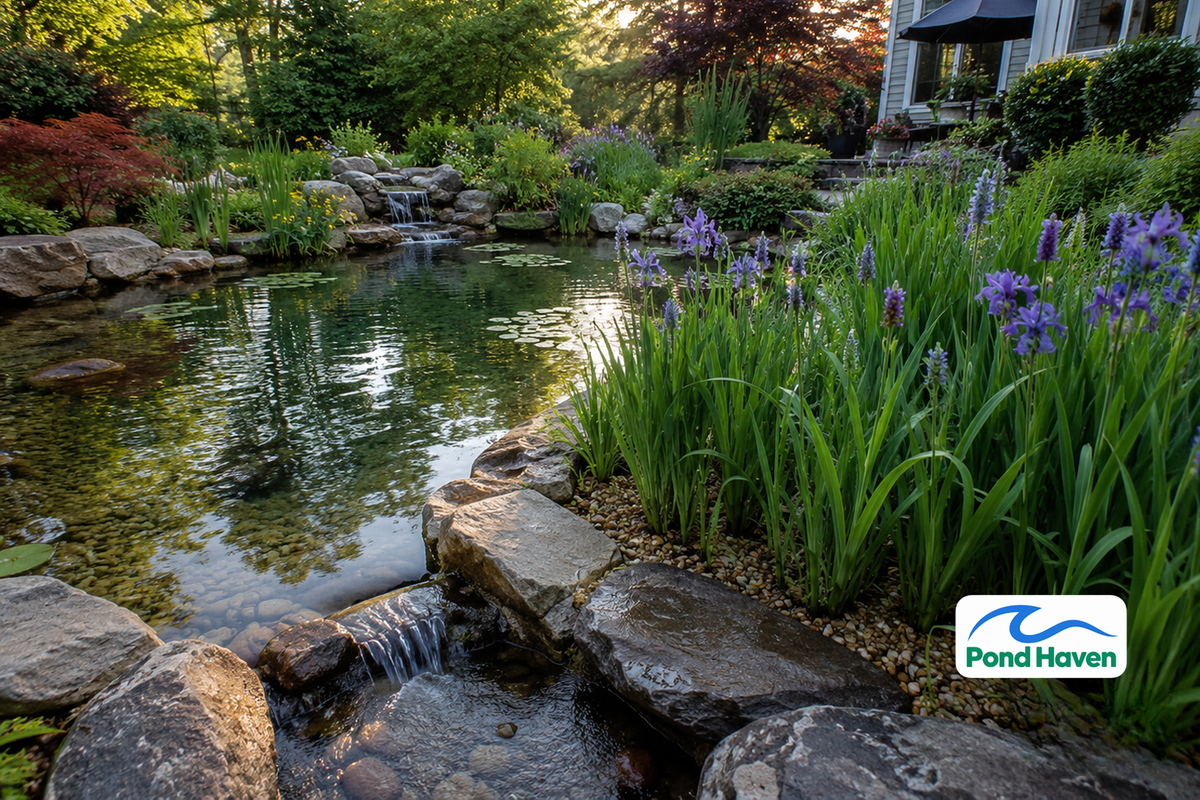

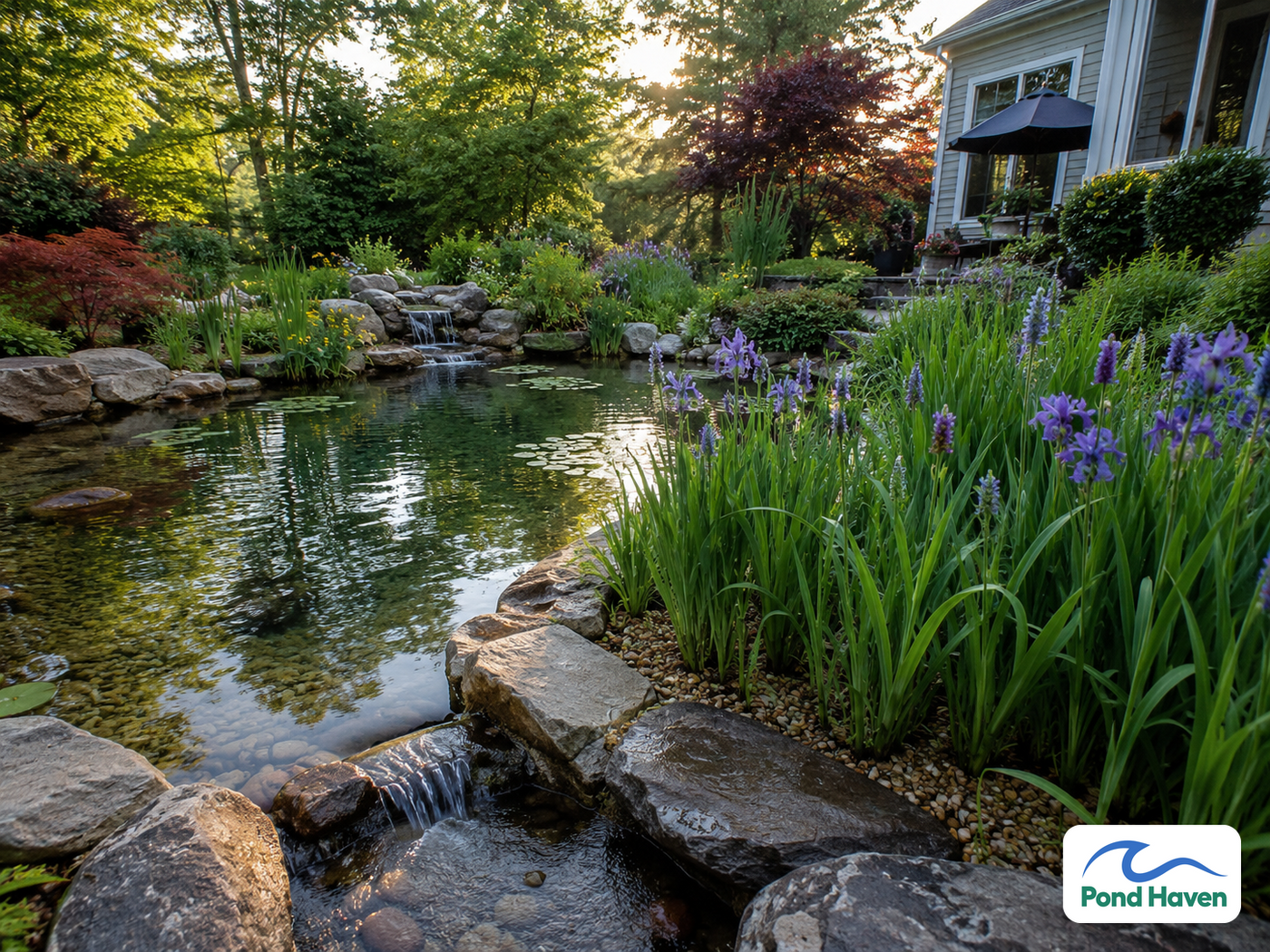

A bog filter solves this. It is a shallow, gravel-filled basin planted with marginal vegetation that mimics a natural wetland. Water is pumped up through the gravel, where bacteria and plant roots strip out nutrients that mechanical filters cannot touch. A properly sized bog filter can hold nitrate below 20 ppm in a moderately stocked pond without weekly water changes. No mechanical filter can do that.
This guide covers how bog filters work, the science behind them, how to size one for your pond, and what it takes to build and maintain one.
- A bog filter is a gravel-filled, planted basin that removes ammonia, nitrite, nitrate, and phosphate through bacteria and plant uptake, not just mechanical trapping.
- Size the bog at 10-15% of pond surface area for water gardens, 20-30% for koi ponds, and 25-30% of the swim zone for natural swim ponds.
- Use 3/8-inch pea gravel at 12-18 inches deep, with a perforated PVC manifold at the bottom for even water distribution.
- Unlike pressurized filters, a bog filter removes dissolved nitrate and phosphate, which are the actual fuel for algae blooms.
- Maintenance is seasonal: cut back and remove plant material in fall, thin to 40-60% coverage in summer, and never sterilize the gravel.
How a Bog Filter Works: The 3-Stage Process
A bog filter cleans water through three simultaneous mechanisms. Understanding each one explains why the system works where mechanical filters fall short.
Stage 1: Mechanical Filtration
The gravel bed physically traps suspended solids, uneaten food, and decaying organic matter. As water rises through 12 to 18 inches of pea gravel, particles lodge between the stones. This is the same principle as a sand filter, but with larger media that resists clogging.
The mechanical stage is the least important of the three. It keeps solids out of the water column, but it does not remove dissolved nutrients. That happens in the next two stages.
Stage 2: Biological Filtration
Beneficial bacteria colonize the gravel surface as a biofilm. Every cubic foot of pea gravel provides hundreds of square feet of surface area for these bacteria to grow on. That surface area is the real filtration engine.
Two groups of bacteria do the heavy lifting. Nitrosomonas oxidizes toxic ammonia into nitrite. Then Nitrobacter or Nitrospira converts nitrite into nitrate, which is far less toxic to fish. This two-step process is called nitrification, and it requires oxygen. For every 1 mg of ammonia oxidized, the bacteria consume about 4.6 mg of dissolved oxygen and 7.1 mg of alkalinity. That is why water flow and aeration matter in a bog filter.
Stage 3: Phytoremediation
Plants absorb dissolved nitrate and phosphate directly through their roots to fuel growth. This is phytoremediation, and it is the stage that sets bog filters apart from every mechanical system.
Here is the critical detail: plants only remove nutrients permanently if you harvest them. When plant material dies and decomposes in the pond, all of that sequestered nitrogen and phosphorus returns to the water. In late fall, cut back deciduous plants and physically remove the material from the pond. This is the single most important maintenance task for a bog filter.
The Nitrogen Cycle and Phytoremediation: The Science Explained
The nitrogen cycle is the biological engine that drives bog filter performance. It runs through four steps.
The Four Steps of the Nitrogen Cycle in a Bog Filter
Ammonification. Decomposer bacteria and fungi convert dead organic matter and fish waste into ammonia (NH₃). This happens constantly in any pond with fish.
Nitrification. Nitrosomonas bacteria oxidize ammonia into nitrite (NO₂⁻). Then Nitrobacter or Nitrospira oxidize nitrite into nitrate (NO₃⁻). Both steps require dissolved oxygen and a pH above 7.0 for peak efficiency.
Assimilation. Plants and bacteria take up nitrate and ammonium as nutrients, converting them into amino acids, proteins, and new plant tissue. This is where nitrogen leaves the water column and becomes biomass.
Denitrification. In low-oxygen zones deep within the gravel bed, facultative anaerobic bacteria like Pseudomonas convert nitrate into nitrogen gas (N₂), which off-gases harmlessly into the atmosphere. This provides true nitrogen removal from the system.
Why Traditional Filters Fail at Nitrate Control
Mechanical and pressurized filters capture solids but do nothing to remove dissolved nitrate. The nitrate that nitrifying bacteria produce stays in the water column. Over time, it accumulates.
Above 20 ppm, nitrate stresses fish and fuels algae blooms. The only way to manage it with a mechanical filter is to dilute it through 10-20% weekly water changes. A bog filter exports nitrogen through plant uptake and denitrification, so you do not have to.
The Phosphorus Connection: PAOs and Plant Uptake
Phosphorus is often the limiting nutrient in freshwater systems. One gram of phosphorus can support up to 100 grams of algal biomass. Unlike nitrogen, phosphorus has no gaseous phase in a pond, so it must be physically removed.
Two mechanisms handle phosphorus in a bog filter. Polyphosphate-accumulating organisms (PAOs) in the biofilm store excess phosphorus as intracellular polyphosphate. Species like Candidatus Accumulibacter phosphatis are known to be highly effective at phosphorus removal in biological systems. Plants also absorb orthophosphate directly through their roots.
This matters because phosphate control is what actually prevents algae blooms. A mechanical filter cannot remove dissolved phosphate. A bog filter does, continuously.
Key Components of a Bog Filter System
A bog filter has four structural components. Each one affects performance.
The Basin
The basin is a lined excavation or raised container that holds the gravel and plants. You can build it from concrete, fiberglass, rigid plastic, or EPDM rubber liner. Many DIY builders repurpose IBC totes or large stock tanks. Pond Haven carries EPDM and PVC liners in a range of sizes for exactly this kind of build.
Depth should be 12 to 24 inches. The basin must be water-tight, because the whole system depends on water moving up through the gravel rather than leaking out the sides.
The Substrate (Gravel)
Pea gravel at 3/8 to 3/4 inch is the industry standard. Smooth, rounded gravel is preferred over crushed rock because it resists compaction and maintains water flow.
Depth matters. The standard range is 12 to 18 inches, with 12 inches as the absolute minimum above the distribution manifold. Do not exceed 24 inches. Deeper beds risk creating unmanaged anaerobic zones that produce hydrogen sulfide gas, which is toxic to fish.
A two-layer approach works well: larger gravel (3/4 to 1.5 inches) at the bottom for drainage, topped with smaller gravel (1/2 to 3/4 inch) for root anchoring and surface area.
The Distribution Manifold
The manifold is a network of perforated PVC pipes at the bottom of the basin that spreads water evenly across the entire bog floor. Even distribution prevents channeling, where water finds a single path through the gravel and bypasses most of the biological media.
Pipe sizing follows flow rate. Use 1.5-inch pipe up to 2,500 GPH, 2-inch pipe from 2,500 to 4,500 GPH, and 3-inch pipe above 4,500 GPH. Use 45-degree elbows instead of 90-degree fittings, which create significantly more friction.
The Pump System
Pump sizing is where most DIY bog filters fail. You cannot size a pump by pond volume alone. You must calculate Total Dynamic Head (TDH), which is the static head (vertical lift from pond surface to discharge point) plus dynamic head (friction from pipe length, fittings, and equipment resistance).
A pump rated at 5,000 GPH at zero head may only deliver 2,800 GPH at 10 feet of TDH. Always check the pump curve at your specific head height. Pond Haven's pump lineup includes models with published performance curves, so you can match flow to your bog's requirements before you buy.
Energy costs matter over the long term. A 300-watt pump running continuously at $0.16/kWh costs about $420 per year. Permanent magnet motors are generally more energy-efficient than traditional motors for the same flow. A variable-speed pump lets you match flow to demand and cut energy use further.
Bog Filter Design: Sizing, Flow and Layout
Sizing is the most common mistake in bog filter construction. Too small, and the system cannot keep up with waste production, a condition called nutrient breakthrough.
Sizing Guidelines by Pond Type
| Pond Type | Bog Filter Size (% of pond surface area) | Flow Rate Target |
|---|---|---|
| Water garden (plants, few fish) | 10-15% | 1x pond volume per hour |
| Koi pond (heavy fish load) | 20-30% | 1.5-2x pond volume per hour |
| Swim pond (high clarity requirement) | 25-30% | 2x pond volume per hour |
For a concrete example: a 5,000-gallon koi pond with roughly 200 square feet of surface area needs 50 to 60 square feet of bog surface. A 10,000-gallon pond needs 100 to 130 square feet.
Upflow vs. Downflow Design
Upflow systems pump water into the manifold at the base, forcing it up through the gravel and plant roots. Water exits at the surface through a spillway. Upflow is the dominant choice for residential ponds because it prevents surface clogging, provides more uniform flow, and allows a smaller footprint of 15-30% of pond area.
Downflow systems let water enter from the top and percolate down through the media. They are more prone to surface clogging because solids accumulate on top of the bed. Downflow designs are common in natural swim ponds, where the intake bay functions as a pre-filter.
Turnover Rate Targets
Turnover rate is how many times the total pond volume passes through the filter per hour. The minimum target is once per hour for the entire pond volume. Koi ponds should turn over once per hour due to higher waste loads. Higher turnover improves nutrient removal but increases pump energy costs.
Layout Considerations
Position the bog filter adjacent to the pond so water can return by gravity through a waterfall, stream, or weir. This eliminates the need for a second pump. The spillway also adds aeration, which supports the nitrifying bacteria. If you want extra surface agitation and oxygenation, a fountain or aerator on the main pond complements the bog without interfering with its flow.
Building Your Bog Filter: Plants and Construction Basics
Recommended High-Uptake Bog Plants
| Plant | Scientific Name | Nutrient Uptake | Notes |
|---|---|---|---|
| Pickerel Weed | Pontederia cordata | High | Native, purple flowers, 24-36 inches |
| Blue Flag Iris | Iris versicolor | High | Tolerates fluctuating water levels |
| Cattails | Typha latifolia | Very high | Aggressive, best in contained systems |
| Water Celery | Oenanthe javanica | High | Fast-growing, edible |
| Marsh Marigold | Caltha palustris | Moderate | Early spring bloomer |
| Arrowhead | Sagittaria latifolia | High | Native, produces edible tubers |
| Soft Rush | Juncus effusus | Moderate | Good for vertical interest |
| Watercress | Nasturtium officinale | Very high | Fast grower, needs regular harvesting |
Plant at a density of one plant per square foot of bog surface. Plants must thrive in continuously wet conditions, tolerate standing water, and grow fast enough to keep up with nutrient loading.
Construction Steps: A Framework
- Excavate or build up the bog basin adjacent to the pond.
- Install the liner (EPDM or PVC) with underlayment protection.
- Lay the distribution manifold across the basin floor with perforations facing down.
- Connect the manifold to the pump line from the pond.
- Fill with gravel to the target depth of 12-18 inches.
- Plant directly into the gravel with no soil.
- Prime the system and adjust flow for even distribution.
- Establish the spillway return to the pond.
Allow plants 2 to 3 weeks to establish before running full circulation.
Common Construction Mistakes to Avoid
- Using soil or potting mix, which washes out and clogs the gravel
- Gravel that is too fine, which compacts and restricts flow
- Manifold perforations facing up, which clog with debris
- Insufficient pump capacity for the head height
Bog Filter vs. Traditional Filtration
The comparison comes down to what each system can actually remove from the water.
| Factor | Bog Filter | Pressurized/Mechanical Filter |
|---|---|---|
| Nitrate removal | Yes (plant uptake) | No |
| Phosphate removal | Yes (plant and microbial uptake) | No |
| Mechanical solids capture | Moderate | High |
| Maintenance frequency | Low (seasonal) | High (weekly cleaning) |
| Energy consumption | Low (single pump) | Moderate to high |
| Aesthetic value | High (planted wetland) | Low (hidden box) |
| Initial cost | Moderate | Low to moderate |
| Lifespan | Decades (with upkeep) | 5-10 years (media replacement) |
| Fish-safe chemical use | None | Varies |
The Hybrid Approach
For heavy fish loads, combine a bog filter with a skimmer or small mechanical filter. The mechanical stage removes solids before they reach the bog, and the bog polishes the water and exports nutrients. This hybrid handles high bioloads better than either system alone.
A UV clarifier can also run alongside a bog filter for algae control during spring establishment, when the plant biomass has not yet filled in.
Advantages
- Removes dissolved nitrate and phosphate that mechanical filters cannot touch
- Low maintenance: seasonal plant trimming instead of weekly pad rinsing
- No media replacement costs over the life of the system
- Adds a planted wetland aesthetic to the pond
Disadvantages
- Requires 10-30% of pond surface area, which is significant space
- Slower to establish than a mechanical filter (4-6 weeks for biofilm)
- Higher initial cost than a basic pressurized filter
- Not ideal for very small ponds under 1,000 gallons
Maintenance, Troubleshooting, and Long-Term Care
Bog filters are low maintenance, but they are not no maintenance. The tasks are seasonal and straightforward.
Seasonal Maintenance Calendar
| Season | Task | Frequency |
|---|---|---|
| Spring | Cut back dead plant material, inspect manifold, check pump | Once |
| Summer | Harvest fast-growing plants, thin aggressive species to 40-60% coverage | Monthly |
| Fall | Remove fallen leaves, cut back and remove all deciduous plant material | Weekly as needed |
| Winter | Drain above-water lines in cold climates, protect pump | Once |
Troubleshooting Common Issues
Channeling. If water flows unevenly or you see dry spots on the gravel surface, the manifold may be clogged or the gravel redistributed. Check the manifold and level the gravel bed.
Ammonia spikes. A new system takes 4 to 6 weeks for the biofilm to establish. During this period, reduce feeding and increase aeration. Seeding with cycled filter media from an established pond speeds colonization.
Algae blooms. Insufficient plant biomass or high nutrient load causes this. Add more plants, harvest existing ones, and verify flow rates are meeting turnover targets.
The Golden Rule: Never Sterilize the Gravel
Do not clean the gravel with bleach, hydrogen peroxide, or a pressure washer. This destroys the biofilm, and recolonization takes weeks. If you need to flush accumulated sludge, gently agitate the gravel with pond water only. A mature bog filter improves with age as the biofilm becomes more complex and efficient.
A heavily stocked koi pond needs 20-30% of surface area as bog, while a lightly stocked water garden needs only 10-15%. Under-sizing is the most common reason bog filters fail to control algae.
Why Choose a Bog Filter? Benefits and Real-World Performance
Water clarity issues are a common source of pond problems. A properly sized bog filter addresses the root cause of most of those problems by removing the nutrients that fuel algae growth.
Performance Benchmarks
Target water quality for a healthy pond: ammonia at 0 ppm, nitrite at 0 ppm, and nitrate below 20 ppm. A properly sized bog filter maintains these levels without chemical additives or frequent water changes.
Pond owners typically report noticeably clearer water within 4 to 6 weeks of establishment, once the biofilm matures and plants begin active growth.
Total Cost of Ownership
The initial investment runs $500 to $2,000 for a DIY build and $2,000 to $5,000 for professional installation. Operating costs are low: a single pump running continuously often costs under $10 per month with an energy-efficient motor.
Over the long term, the savings compound. There is no media to replace every 5 to 10 years, no chemical clarifiers to buy, and fewer fish losses from stress and poor water quality.
Frequently Asked Questions
How big should a bog filter be?
Size it at 10-15% of pond surface area for a water garden, 20-30% for a koi pond, and 25-30% of the swim zone for a natural swim pond. A 5,000-gallon koi pond with 200 square feet of surface area needs 50 to 60 square feet of bog.
Do bog filters work in winter?
The bacteria become dormant when water temperatures drop below 50°F, and plant uptake stops. The filter stops actively removing nutrients until spring. Cut back and remove dead plant material before ice forms so nutrients do not return to the water during spring thaw.
Can I build a bog filter without a pump?
No. A bog filter requires continuous water circulation through the gravel bed. Without a pump, water sits stagnant and the system becomes an anaerobic swamp rather than a filtration system. The pump is the heart of the system.
How deep should the gravel be in a bog filter?
Keep the gravel bed at 12 to 18 inches, with 12 inches as the absolute minimum above the distribution manifold. Do not exceed 24 inches, because deeper beds create unmanaged anaerobic zones that produce hydrogen sulfide gas, which is toxic to fish.
Will a bog filter clear green water?
Yes, once established. Green water is caused by suspended algae feeding on dissolved nutrients. A bog filter removes those nutrients through plant uptake and bacterial action, starving the algae. Expect noticeable improvement within 4 to 6 weeks as the biofilm matures and plants establish.
The Bottom Line
A bog filter is a constructed wetland that uses gravel, bacteria, and plants to clean pond water naturally. It removes what mechanical filters cannot: dissolved nitrate and phosphate, the actual fuel for algae blooms.
The three-stage process of mechanical trapping, biological nitrification, and phytoremediation works together as a self-sustaining system. It requires no chemicals, minimal energy, and only seasonal maintenance. For pond owners seeking long-term water clarity without weekly filter cleaning or water changes, a bog filter is the most sustainable filtration investment available.
