Create a Captivating Focal Point with the Vertex TwoTier Fountain
Add beauty and motion to your water feature with the Vertex TwoTier Floating Pond Fountain. Its elegant two-level spray design transforms any pond into a striking focal point.
✔ Stunning two-tier water display with graceful floral arches reaching 18–26 feet high
✔ Adjustable height options to perfectly complement your pond or lake
✔ Precision-machined brass and stainless steel nozzles for flawless artistry and lasting strength
✔ Controlled water cascades deliver a mesmerizing, consistent high-end effect
✔ Instantly adds sophistication and elegance to residential or commercial settings
Transform Your Pond into a Showpiece with TwoTier Elegance
✔ Rugged stainless steel turbine pumps with precision brass/stainless nozzles for commercial-grade strength
✔ Brilliant stainless steel LED lighting powered by high-output CREE chips for stunning nighttime displays
✔ Hassle-free design with no oils, O-rings, or seals to replace
✔ Lightweight, self-leveling build ensures quick installation and lower freight costs
✔ Built-in Class A GFCI protection with industry-leading warranties — 4 years on display heads, pumps, and motors

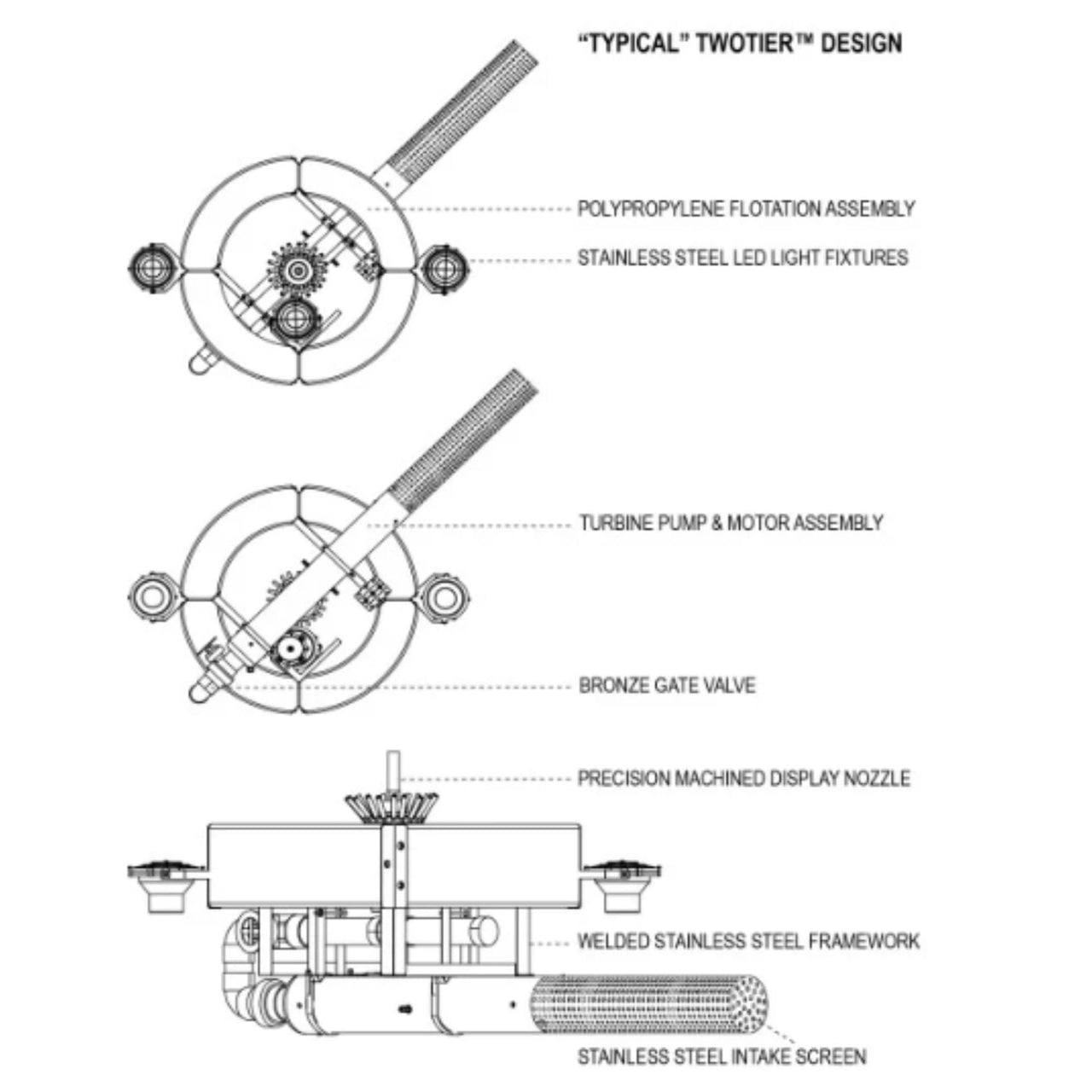

Vertex TwoTier Floating Pond Fountain: What Comes in the Box
Everything you need comes standard with your TwoTier Floating Pond Fountain!
- Stainless Steel Turbine Pump
- UV-Resistant Rotocast Polypropylene Float
- Precision-Engineered Display Nozzle
- Stainless Steel Intake Screen
- UL-Listed Control Panel
- STW-A Rated Submersible Power Cable
- 140 Lumen/Watt Stainless Steel Light Fixtures
- Comprehensive Manufacturer’s Warranty

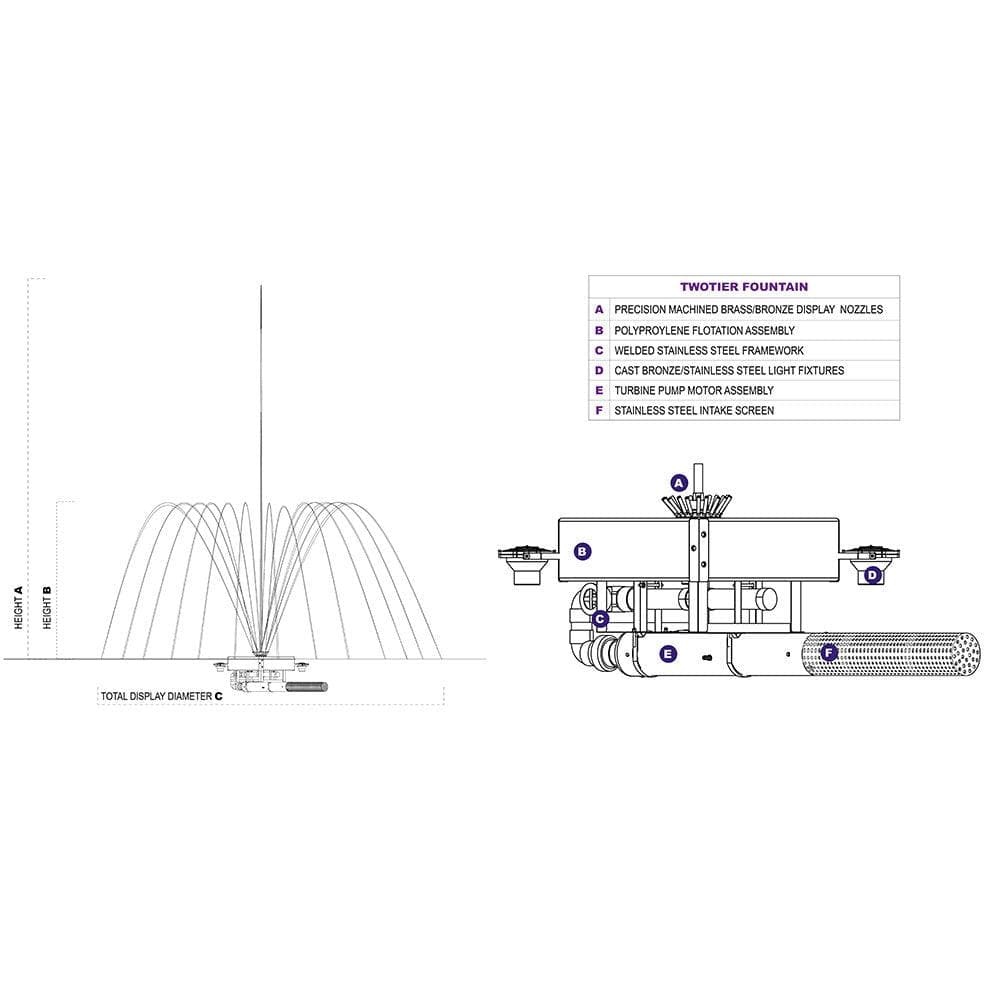

Vertex TwoTier Floating Pond Fountain Technical Specifications
| 2 HP Unit | 3 HP Unit | 5 HP Unit | 7.5 HP Unit | 10 HP Unit | 15 HP Unit | |
| Minimum Operating Depth | 3' | 4' | 4' | 5' | 6' | 7' |
| Center Height (A) | 18' | 23' | 26' | 30' | 35' | 40' |
| Side Height (B) | 8' | 10' | 12' | 15' | 17' | 20' |
| Diameter (C) | 20' | 25' | 30' | 35' | 40' | 45' |
| LED Lights | 2 | 2 | 3 | 4 | 4 | 5 |
| Total Wattage | 86W | 86W | 129W | 172W | 172W | 215W |
| AMP Draw | 1 | 1 | 1.5 | 2 | 2 | 2.5 |
| Available Phase | 1 & 3 | 1 & 3 | 1 & 3 | 1 & 3 | 1 & 3 | 1 & 3 |
| 1 Phase (Volts) | 230 | 230 | 230 | 230 | 230 | 230 |
| 3 Phase (Volts) | 208 & 230 | 208 & 230 | 208 & 230 | 208 & 230 | 208 & 230 | 208 & 230 |
| Display Heads Warranty | 4-Year | 4-Year | 4-Year | 4-Year | 4-Year | 4-Year |
| Pumps & Motors Warranty | 4-Year | 4-Year | 4-Year | 4-Year | 4-Year | 4-Year |
| LED Lighting Warranty | 2-year | 2-year | 2-year | 2-year | 2-year | 2-year |
| Control Panel Warranty | 1-Year | 1-Year | 1-Year | 1-Year | 1-Year | 1-Year |
Vertex TwoTier Floating Pond Fountain Manuals:
