Elevate Your Pond with the Vertex TriGeyser Fountain
The Vertex TriGeyser Floating Pond Fountain adds dramatic movement and charm to your pond. With its eye-catching spray, it transforms any body of water into a captivating focal point.
✔ Three powerful conical jets create a dramatic pyramid display
✔ Adjustable height proportions with easy on-site valve controls
✔ Engineered for reliable, high-performance displays on large ponds and lakes
✔ Offered in 10, 15, 20, and 30 HP models to suit your needs
✔ Optional LED lighting packages add breathtaking night displays
Enduring Elegance with the TriGeyser Pond Fountain
✔ Heavy-duty submersible turbine pump with fully waterproof, corrosion-resistant parts
✔ UV-resistant polypropylene float with stainless steel intake screen
✔ Water-cooled motor for low maintenance—no oils, seals, or O-rings to replace
✔ UL-listed control panel with Class A GFCI and weatherproof NEMA enclosure
✔ Warranty protection: 4 years on display heads, pumps & motors; 2 years on LED; 1 year on control panel
Vertex TriGeyser Floating Pond Fountain: What Comes in the Box
Everything you need comes standard with your TriGeyser Floating Pond Fountain!
- Stainless Steel Turbine Pump
- UV-Resistant Rotocast Polypropylene Float
- Precision-Engineered Display Head/Nozzle
- Stainless Steel Intake Screen
- UL-Listed Control Panel
- STW-A Rated Submersible Power Cable
- Comprehensive Manufacturer’s Warranty

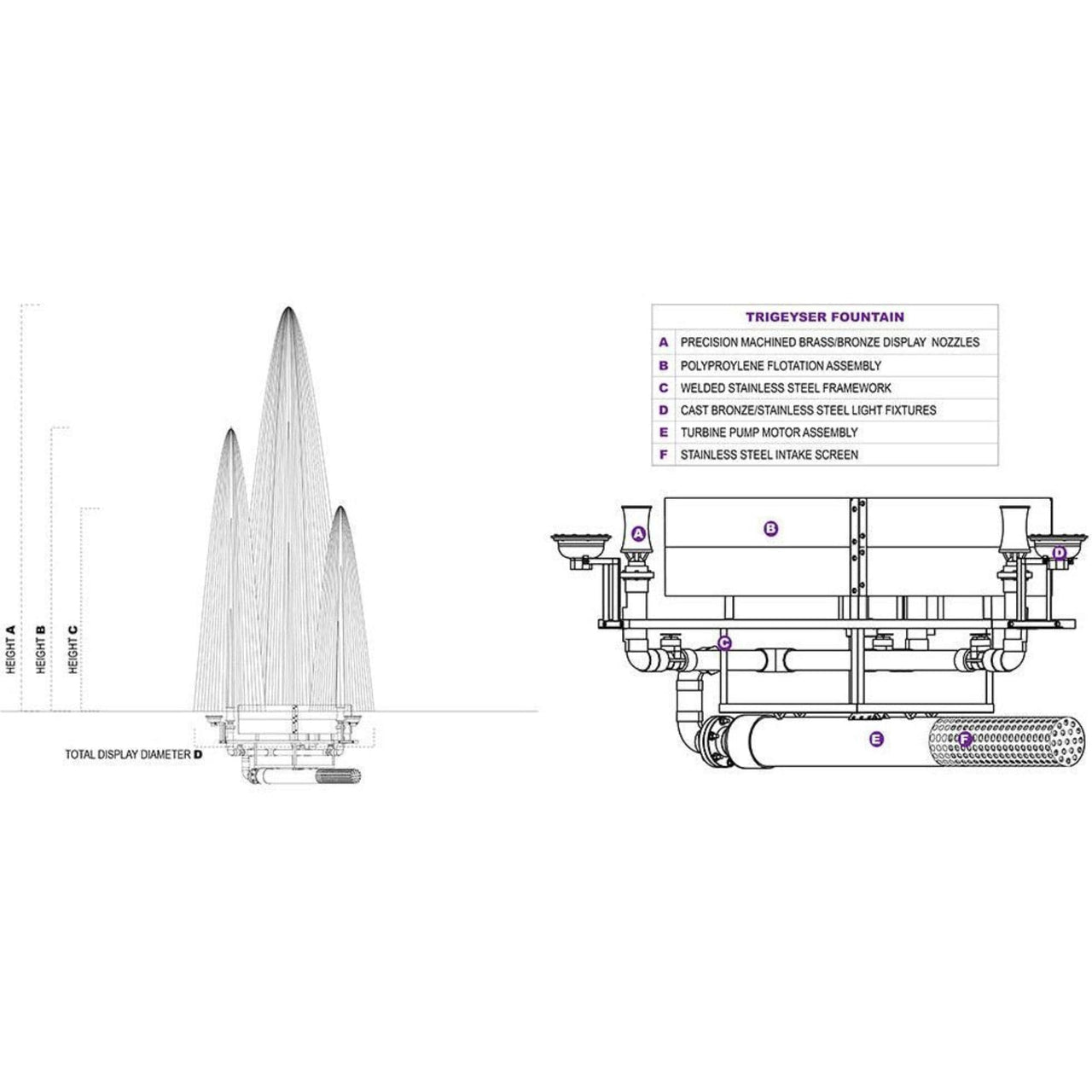

Vertex TriGeyser Floating Pond Fountain Technical Specifications
| 10 HP | 15 HP | 20 HP | 30 HP | |
| Spray Height (A) | 15 Feet | 18 Feet | 22 Feet | 25 Feet |
| Spray Height (B) | 10 Feet | 12 Feet | 15 Feet | 18 Feet |
| Spray Height (C) | 6 Feet | 8 Feet | 10 Feet | 12 Feet |
| Diameter (D) | 8 Feet | 9 Feet | 10 Feet | 12 Feet |
| LED Total Wattage | 258 W | 258 W | 258 W | 258 W |
| LED Circuit Amp Draw @120V | 2.2 A | 2.2 A | 2.2 A | 2.2 A |
| Min. Pond Depth | 6 Feet | 7 Feet | 7 Feet | 8 Feet |
| Available Phase | 1 & 3 | 1 & 3 | 3 | 3 |
| 1 Phase (Volts) | 230 | 230 | N/A | N/A |
| 3 Phase (Volts) | 208 & 230 | 208 & 230 | 208 & 230 | 208 or 230 |
| LED Lights (Qty) | 6 | 6 | 6 | 6 |
| Control Pannel Warranty | 1 Year | 1 Year | 1 Year | 1 Year |
| Pumps, Motors & Display Heads Warranty | 4 Years | 4 Years | 4 Years | Row 13 |
| LED Lights Warranty | 2 Years | 2 Years | 2 Years | Row 14 |
