Scott Pump Timer for Fountains, Aerators and Lights
The Scott Aerator Pump Timer runs your fountain, aerator or light set on a schedule, so your equipment only runs when you want it to. Every model is made by Intermatic and sold by Scott Aerator for its own 115V and 230V equipment. Pick the timer that matches your equipment voltage and how you want to install it.
• Five Options: 115V residential, 115V commercial, 230V residential, 230V commercial and the dual-voltage Intermatic Timing Center.
• Plug-In 115V Model: The 115V residential timer plugs into a GFCI-protected outlet, then your fountain, aerator or light set plugs into the timer.
• 40 Amp Commercial Ratings: The 115V commercial, 230V residential and 230V commercial timers are rated at 40 amps.
• Override Without Reprogramming: The commercial timers and the Timing Center have a manual override that leaves your program in place.
• Outdoor Ready: The 115V residential case is outdoor-grade plastic, the 230V residential timer uses a UL Type 3R outdoor enclosure and the Timing Center is outdoor-rated steel.
Which Scott Aerator Pump Timer Do I Need?
115V Residential (Plastic Casing)
Plug-in 24-hour dial timer for 115V fountains, aerators and light sets. 23½-hour maximum ON time. Comes with two ON and two OFF trippers and the dial takes up to 12 sets.
115V Commercial (Metal Casing)
Intermatic T100 Series mechanical time switch rated up to 40 amps per pole, with up to 12 ON/OFF operations per day and a manual override. For commercial and heavy-duty residential use.

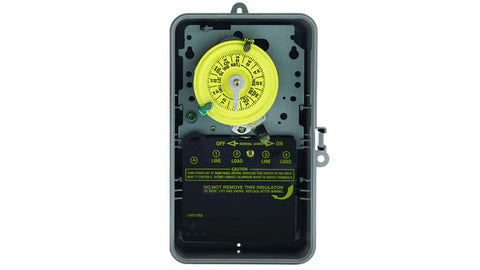

230V Residential (Plastic Casing)
40 amp electro-mechanical time switch that detects input voltage from 110 to 277 VAC on its own, with no selector switches or pins. Housed in a UL Type 3R outdoor enclosure.
230V Commercial (Metal Casing)
Industrial-rated outdoor timer for 230V fountains and aerators. 208 to 277V, 40 amps, up to 12 ON/OFF cycles per day, self-lubricating clock motors and an override switch that does not change your program.

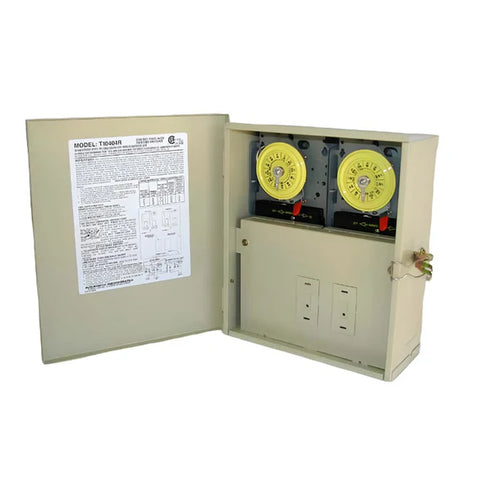

Dual Timer (115V and 230V) Timing Center
Two timers in one outdoor-rated steel enclosure, for 115V and 230V fountains, aerators and lighting. Manual ON/OFF levers work without changing the schedule. Knockouts take optional switches or GFCI devices.
Pump Timer Specs by Model
| Timer | Scott Part # | Voltage | Rating | Daily ON/OFF | Enclosure |
| 115V Residential | 20036 | 115V | Ask us | Up to 12 tripper sets on a 24-hour dial | Outdoor plastic, 5″ H × 5½″ W × 3¾″ D |
| 115V Commercial | 20036.1 | 115V | 40 A per pole | Up to 12 | Metal |
| 230V Residential | 20039.1 | Auto-detects 110 to 277 VAC | 40 A | Ask us | UL Type 3R outdoor (plastic) |
| 230V Commercial | 20039 | 208 to 277V | 40 A, 5 HP max at 240V | Up to 12 | Metal, outdoor |
| Timing Center (Dual) | 20040 | 115V and 230V | Ask us | Ask us | Outdoor-rated steel |
All five timers are made by Intermatic for Scott Aerator. Scott also lists a 3-phase 208 to 277 VAC timer; contact us if you need one.
What's Included With Each Scott Pump Timer
- 115V Residential: timer with 3′ outdoor-grade cord and three-prong grounded plug
- 115V Residential: two ON and two OFF trippers
- 230V Commercial: two trippers and an easy-to-follow wiring diagram
- Timing Center: mounting hardware
Before You Order a Scott Pump Timer
- Match the timer voltage to your fountain or aerator: 115V equipment needs a 115V timer and 230V equipment needs a 230V timer. The Timing Center works with both.
- Check your motor's amp draw on its label and stay within the timer's rating.
- Plug the 115V residential timer into a GFCI-protected outlet.
- The 115V residential timer plugs in. For the other models, follow the wiring diagram and use a licensed electrician for hardwired installs.
- GFCI devices and switches for the Timing Center knockouts are sold separately.
- Not sure which timer fits your equipment? Contact us with your fountain or aerator model and voltage and we will help you choose.
- FREE Shipping via FEDEX, LTL Ground, & UPS. Ships in 2-3 Business Days.
- Ships Only to Lower 48 States of the United States
