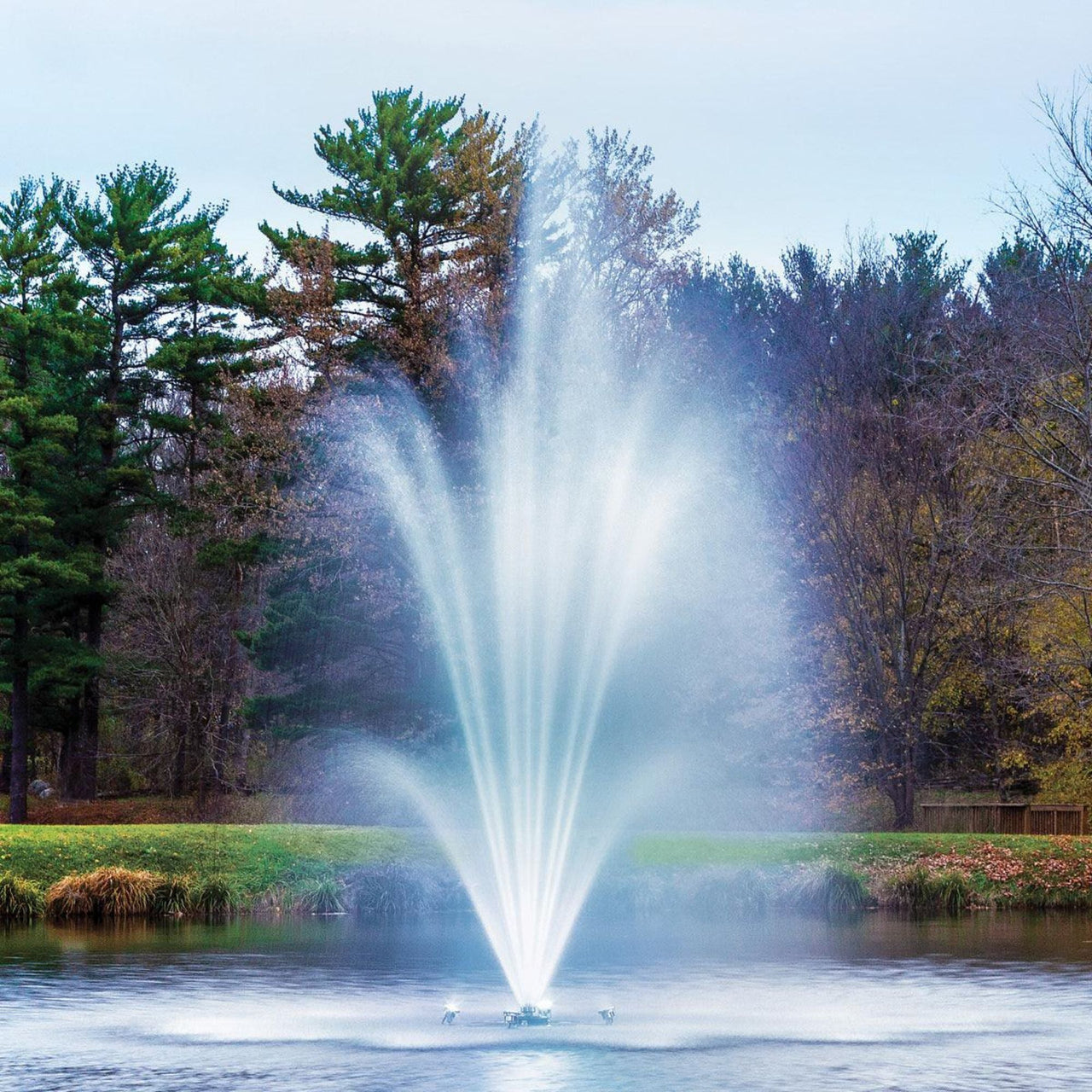

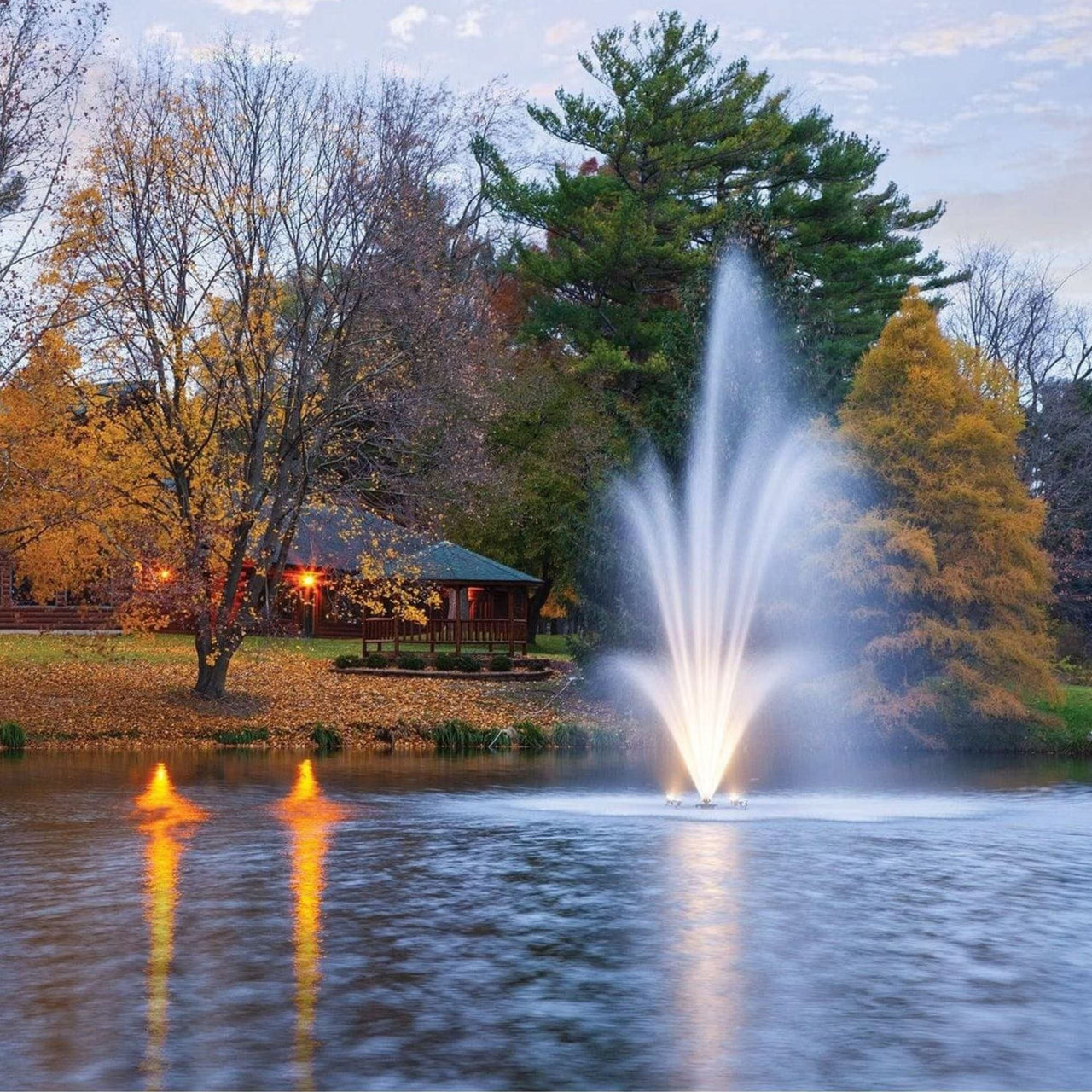

Transform Your Pond With The Amherst Fountain
Beautiful 3 Tier Display: The three-tiered design is topped by a striking main column, creating a stunning focal point for your outdoor space.
Impress Your Friends, Neighbors, & Clients: show off your amazing water feature and make everyone say "Wow!"
Raise Your Property Value: Make your property worth more money and easier to sell.
Relaxing Sounds: Enjoy the peaceful sound of water to help you relax and feel happy.
No More Mosquitoes: Keep mosquitoes and bugs away so you can enjoy your space more.
Easy Installation & No Maintenance
Maintenance-Free: No ongoing maintenance required, saving you time and effort.
Easy Installation: Simple setup with included instructions, typically taking only 15-20 minutes.
Anchoring Instructions: Secure nylon anchoring lines to eyebolts and cement blocks for stability.
Long Warranty: 5-year motor warranty and 1-year parts warranty ensure durability and peace of mind.
Winter-Proof: Designed to withstand sub-zero conditions, reducing concerns about winter maintenance.
Technical Specifications:
3/4 HP Unit | 1 HP Unit | 1.5 HP Unit | 2 HP Unit | 3 HP Unit | |
Motor Construction | Oil Filled | Oil Filled | Oil Free | Oil Free | Oil Free |
Voltage | 115V / 230V | 115V / 230V | 230V | 230V | 230V |
Amps | 115V - 16 Amps | 230V - 8 Amps | 115V - 19.5 Amps | 230V - 10.5 Amps | 12.2 Amps | 12.6 Amps | 14 Amps |
Watts | 115V - 1840 Watts | 230V - 920 Watts | 115V - 2242 Watts | 230V - 2415 Watts | 2806 Watts | 2280 Watts | 3000 Watts |
Flow Rate | 55 GPM | 75 GPM | 115 GPM | 155 GPM | 170 GPM |
Center Stream Height | 10 feet | 15 feet | 15 feet | 20 feet | 20 feet |
Side Jets' Angled Spray Pattern | 40 feet in diameter | 40 feet in diameter | 40 feet in diameter | 40 feet in diameter | 40 feet in diameter |
Power Cord Gauge | 12-gauge submersible | 12-gauge submersible | 12-gauge submersible | 10-gauge submersible | 10-gauge submersible |
Minimum Anchor Weight | 30 lbs | 35 lbs | 40 lbs | 50 lbs | 55 lbs |
Light Kits Can Be Added | Yes, now or later | Yes, now or later | Yes, now or later | Yes, now or later | Yes, now or later |
Can be used in Saltwater | Yes | Yes | Yes | Yes | Yes |
24-Hour Operation | Yes | Yes | Yes | Yes | Yes |
Maintenance Required | None | None | None | None | None |
Minimum Pond Depth | 44 inches | 44 inches | 50 inches | 56 inches | 64 inches |
ARL Testing | ARL tested and approved to be in compliance with the applicable requirements of UL and the National Electric Code as complete packages. | ARL tested and approved to be in compliance with the applicable requirements of UL and the National Electric Code as complete packages. | ARL tested and approved to be in compliance with the applicable requirements of UL and the National Electric Code as complete packages. | ARL tested and approved to be in compliance with the applicable requirements of UL and the National Electric Code as complete packages. | ARL tested and approved to be in compliance with the applicable requirements of UL and the National Electric Code as complete packages. |
Motor Warranty | 5 years | 5 years | 5 years | 5 years | 5 years |
3/4 HP
Spray Size | 10 ft High x 25 ft Wide |
Recommended Pond Size | 0.12 - 0.5 Acre |
Minimum Water Depth | 36 Inches |
Flow Rate | 3,000 gal/hr |
Voltage | 115V or 230V |
1 HP
Spray Size | 10 ft High x 30 ft Wide |
Recommended Pond Size | 0.5 - 1 Acre |
Minimum Water Depth | 44 Inches |
Flow Rate | 4,500 gal/hr |
Voltage | 115V or 230V |
1.5 HP
Spray Size | 12 ft High x 35 ft Wide |
Recommended Pond Size | 1 Acre - 2 Acres |
Minimum Water Depth | 50 Inches |
Flow Rate | 6,900 gal/hr |
Voltage | 230V only |
3 HP
Spray Size | 20 ft High x 40 ft Wide |
Recommended Pond Size | 1 Acre and Above |
Minimum Water Depth | 60 Inches |
Flow Rate | 10,200 gal/hr |
Voltage | 230V only |
Manuals
Scott Aerator Amherst Brochure
Scott Aerator Pond Fountain Specifications & Assembly
Required Water Depth
Horsepower | Min. Pond Depth |
3/4 HP | 36" |
1 HP | 36" |
1.5 HP | 40" |
3 HP | 50" |
Electrical
Motor Size | Watts | Amps |
3/4 HP 115V | 1090 | 11.5 |
3/4 HP 230V | 1210 | 18.2 |
1 HP 115V | 1090 | 11.5 |
1 HP 230V | 1210 | 8.2 |
1.5 HP 230V | 1770 | 10.6 |
3 HP 230V | 3000 | 14 |
Power Cord Length
Motor Size | Available Cord Lengths |
3/4 HP 115V | 100' - 150' |
3/4 HP 230V | 100' - 400' |
1 HP 115V | 100' - 150' |
1 HP 230V | 100' - 400' |
1.5 HP 230V | 100' - 400' |
3 HP 230V | 100' - 400' |

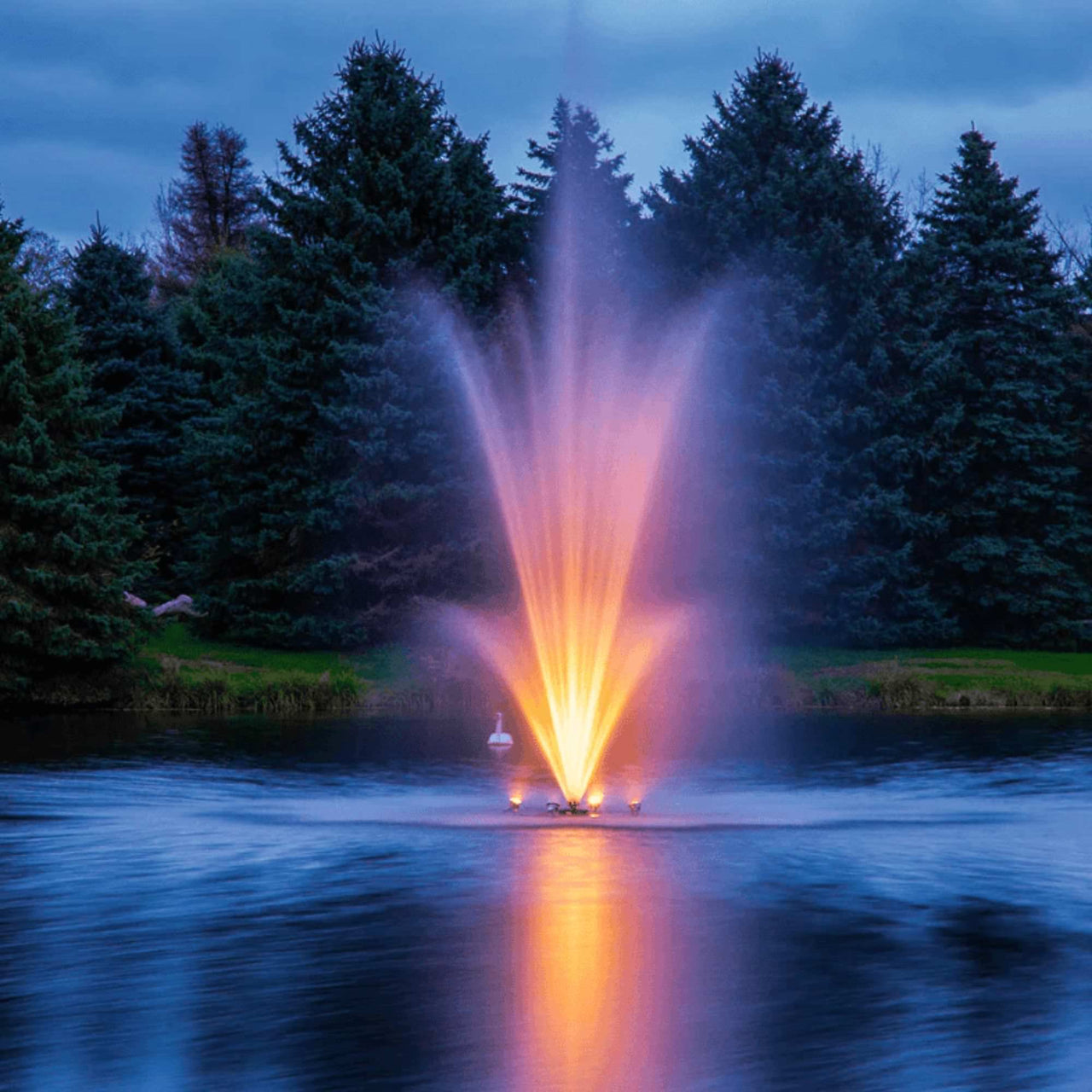

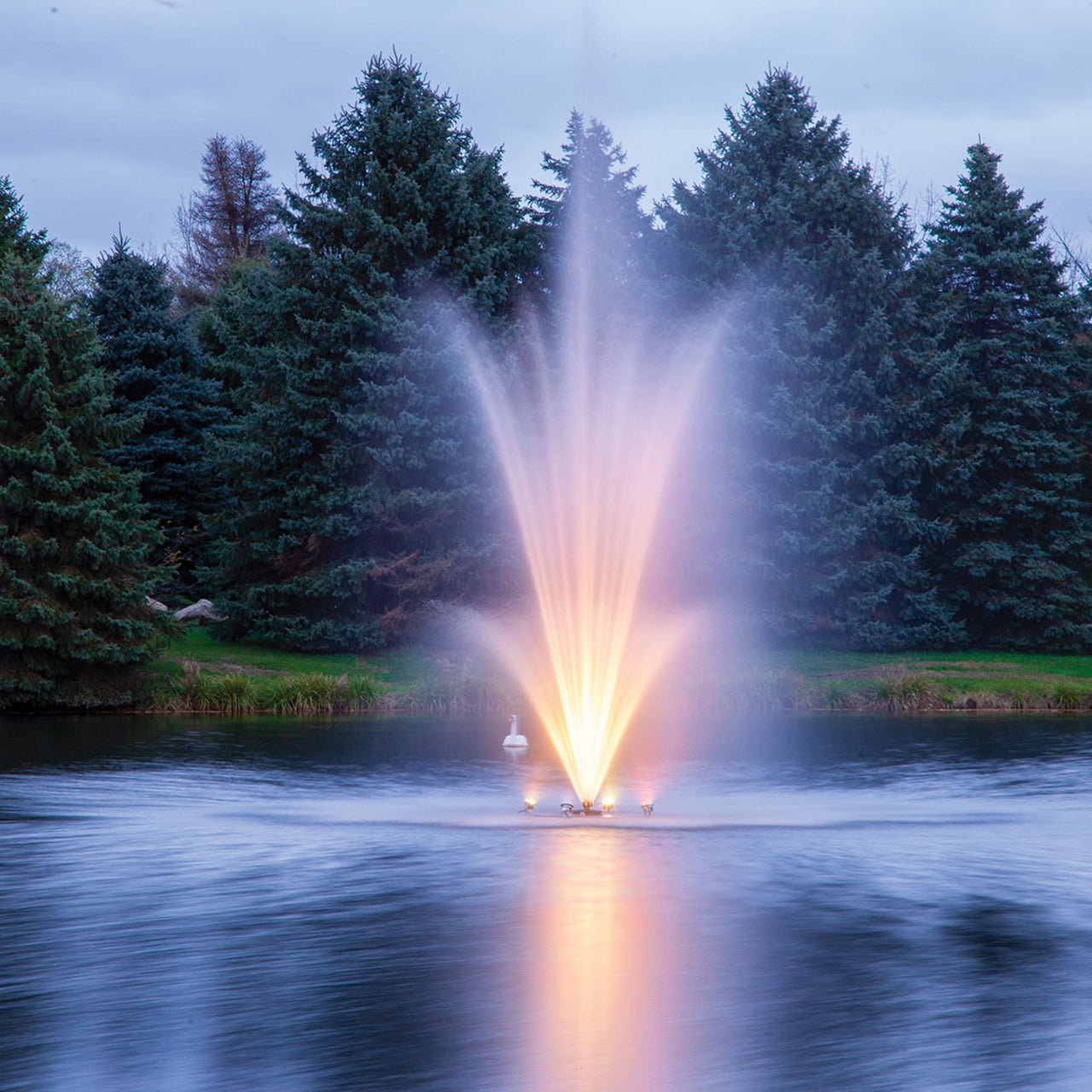

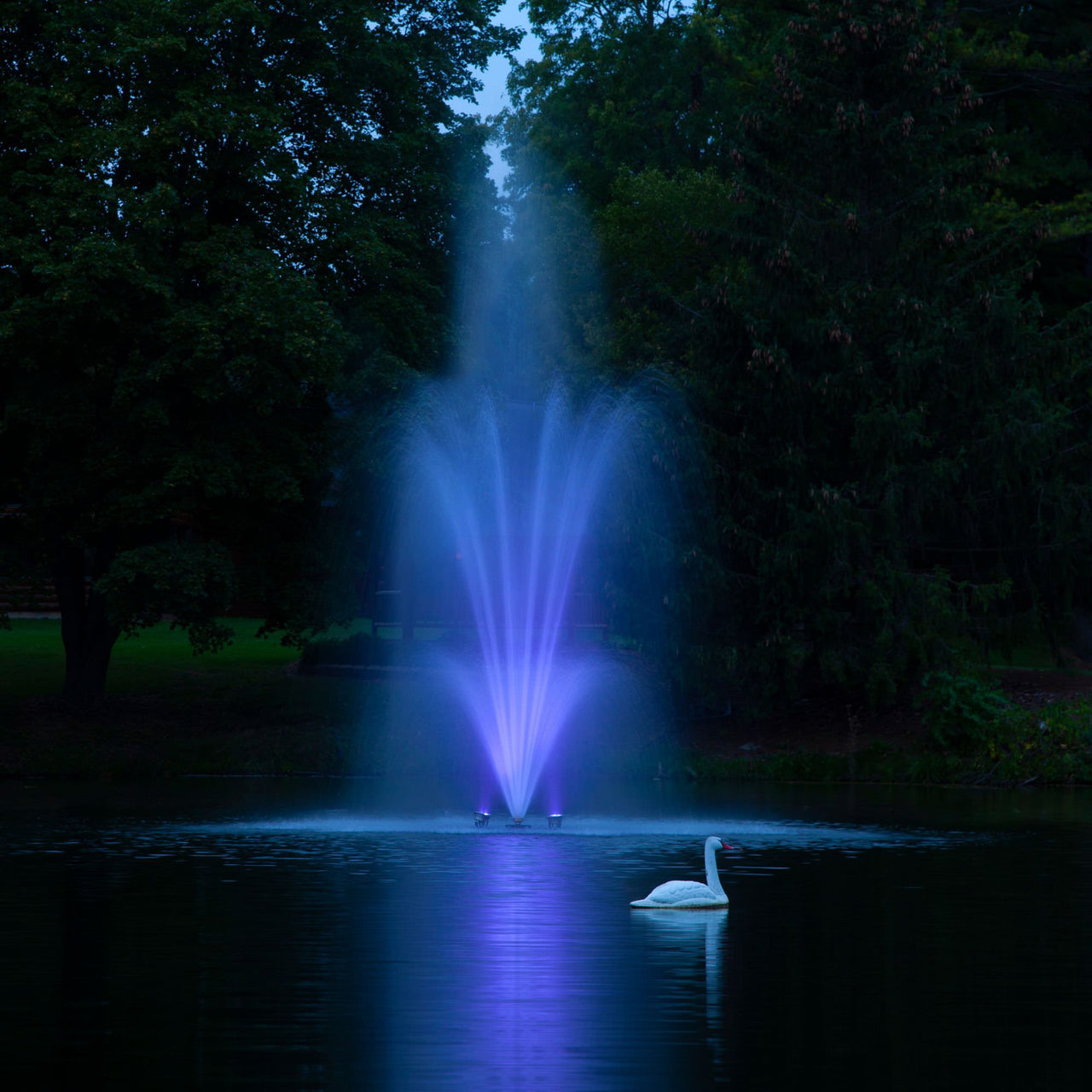

LED Lights (Optional)
- Can be purchased now or added later. Light sets simply screw on to float.
- 2-light sets recommended for 1.5 HP and below.
- 4-light sets recommended for 2 HP & 3 HP.
Warm White LED | 14-Color LED |
Single Color Option | 14 Color Options |
Digital Timer Included | Digital Timer Included |
No Remote Control | Remote Control Included |
110V | 110V |
2 or 4-Light Fixtures | 2 or 4-Light Fixtures |
Power Cable Included | Power Cable Included |
Timers (Optional)
- Can be purchased now or added later.
- Timers are only made to control fountains, not lights.
- Answer to FAQ: The difference between the residential and commercial 230V timer is the residential box is plastic and the commercial box is metal. Both perform the same function.
115V Timer | 230V Timer |
Operates 115V Pumps | Operates 230V Pumps |
40 Amp Rating | 40 Amp Rating |
5" H x 5.5" W x 3.75" D | 8.9" H x 6.1" W x 3" D |
1. Assemble The Unit
Assembly of Scott Aerator Fountains takes 15-20 minutes. Assembly instructions will be included with your fountain. Scott Aerator fountain kits come with the following:

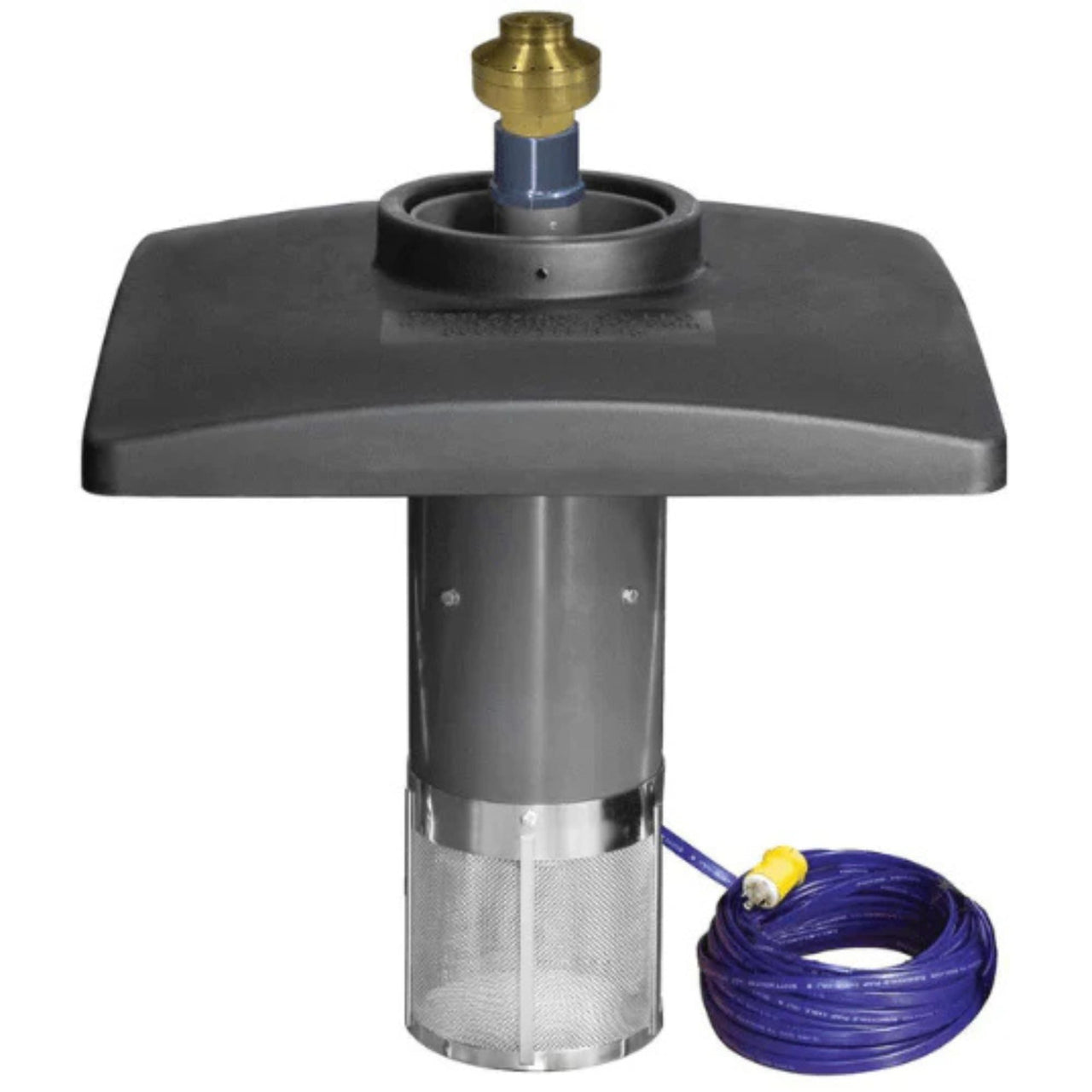

- Pump with cylindrical casing and power cable attached
- Square float platform
- Protective stainless steel filter
- Decorative nozzle (this does not apply to the DA-20)
- 5/16"x2" stainless steel bolts
- Stainless steel nuts & washers
- Self tapping stainless steel screws
Tools Needed: You will need a wrench (or socket driver) and pliers.
Assembly Steps:
- Begin by placing the fountain housing on a solid surface, with the pump discharge opening facing up.
- Tie nylon rope (not included) to the two stainless steel eyebolts. These will be the anchoring lines for the fountain.
- Next, put the float in place and secure with the two 5/16" x 2" bolts, washers and nuts included.
- Now, turn the fountain upside down, remove the styrofoam doughnut, and place the stainless steel filter in place. Be sure to line up the pre-drilled holes on the fountain with the position marks on the filter. Attach the filter with the
three self-tapping screws provided.
2. Attach Lights (If you did not order lights, skip this step)
Scott Aerator fountain light kits simply attach to the square float platform. Scott Aerator light kits come with the following:
- (2) or (4) LED light fixtures with power cable
- 1/2" bolts & nuts
- (2) or (4) stainless steel arm brackets
- Timer/control unit
- Remote control (only for color-changing lights)
Tools Needed: Wrench & Pliers
*Please note: The included timer/control unit is required to operate the lights. Do not remove cord from control unit, this will void the lights' warranty.
Assembly Steps:
- Attach each arm assembly to the water feature. Be sure to orient the arms with “L” facing upward. Remove one of the 2" bolts attaching the float to your Scott water feature and align the holes with the stainless steel arm. Reinsert the bolt with washer, outward through the housing, float and stainless steel arm. Secure with washer and nut. Repeat for the remaining arm assembies.
- Continue by attaching each light to the slotted end of the stainless steel arms. Feed 1/2" x 1/4" bolt downward through each light bracket and steel arm then secure with 1/4" nut. The lights can be positioned along the arm by loosening the lock nut, sliding the light to the desired position, then re-tightening the nut.
- Connect the lights to the Timer Control Unit by aligning pins and screwing the connector together 1/2 turnonly. Do not force the connection tight or you may damage the O-ring or wiring.
3. Place in water
- Once the unit is assembled, it is ready to be placed in the water for final preparation and anchoring.
- Care should be used when handling the fountain; it is very important that the weight of the fountain not be placed upon the stainless steel filter.
- Once the fountain head is in the water, attach the fountain head by screwing it into place (this does not apply to the DA-20).
- Float the fountain to the desired position and secure the attached nylong ropes to shore or use 2 concrete blocks submerged at least 20 feet apart.
- The final step is to plug your fountain and lights into your established power source. Always use a ground fault circuit interrupter (GFCI) and a licensed electrical contractor to install your power source.
Choosing the Right Horsepower
- The size and flow rate of your fountain's spray is influenced by the horsepower you choose. A higher horsepower will move more water, resulting in a larger and/or thicker spray.
- When it comes to selecting horsepower, it largely depends on your budget and pond size. It is recommended to keep a minimum distance of 10 feet between the fountain spray and the edge of your pond.
Choosing the Right Voltage
- If you are unsure about which voltage to choose, feel free to contact us for assistance.
- If you plan to run 115V power to the edge of your pond, please note the maximum distances from the pump to the breaker, including the power cord you order.
- If you plan to run 230V to the edge of your pond, you generally will not have to worry about the distance.
Motor Size | Max distance from pump to breaker on 115V |
1/3 HP 115V | 280' |
1/2 HP 115V | 250' |
3/4 HP 115V | 200' |
1 HP 115V | 150' |
Choosing the Right LED Lights (Optional)
- LED lights can be purchased now or added later. They simply screw on to the fountain.
- Lights run on 110V and come with their own power cord.
- Single-color warm white LED lights or color-changing LED lights are available.
- Both options come with a programable timer.
- Color-changing lights come with a remote control that works up to 1,000 feet away.
- For 1 HP and below 2-light sets are recommended.
- For 1.5 HP and 2 HP 3-light sets are recommended.
- For 3 HP 4-light sets are recommended.
Choosing the Right Timers (Optional)
- Timers can be purchased now or added later.
- Timers are only made to control fountains, not lights.
- Residential and Commercial Timers perform the same function.
- Residential timer box is plastic and the commercial box is metal.
Unique Additional Nozzles (Optional)
- Important Note: Scott Aerator Fountain pumps can accommodate all Scott Aerator Nozzles. If you would like a different spray pattern, you can easily purchase a new nozzle.
- There are 9 unique nozzle options that you can choose from. Each has its own special spray pattern!
- TIP: Not all nozzles will fit every motor size. Please double-check to make sure your nozzle will fit the appropriate motor horsepower.
Nozzle Spray Sizes (H x W)
Nozzle | 1/2 HP | 1 HP | 1.5 HP | 2 HP | 3 HP |
Amherst | N/A | 35' x 40' | 35' x 40' | N/A | 30' x 25' |
Atriarch | N/A | 30' x 25' | 40' x 30' | 50' x 40' | 60' x 50' |
Baystone | N/A | 14' x 30' | 20' x 40' | N/A | N/A |
Cambridge | N/A | 30' x 40' | 35' x 45' | N/A | 40' x 55' |
Clover | 20' x 35' | 30' x 42' | 40' x 50' | N/A | 50' x 70' |
Millbrook | N/A | 15' x 30' | 17' x 35' | N/A | N/A |
Rosewood | N/A | 30' x 40' | 35' x 45' | N/A | N/A |
Skyward | 20' x 35' | 30' x 42' | 40' x 50' | N/A | 50' x 70' |
Tudor | N/A | 10' x 35' | 15' x 45' | N/A | N/A |
- FREE Shipping via FEDEX, LTL Ground, & UPS. Ships in 2-3 Business Days.
- Ships Only to Lower 48 States of the United States
Fountains
Q: What is the best way to choose a fountain?
A: This is the question we receive most frequently, and it carries a lot of weight. We would start by asking: is aeration the goal, or is it aesthetics? Or, do you need both? Consider one of our Aerating Fountains if you're looking for aeration, or both. Compared to aesthetic fountains, they circulate much more water at a much higher rate. In terms of aesthetics, there is a wide variety of options to consider. What it looks like is ultimately up to you. To begin with, make sure your pond meets the minimum depth requirements. Then, make sure your display doesn't exceed the capacity of your pond. Each fountain product page contains display dimensions.
Note: Water can only be aerated up to about 6 feet deep using fountains and surface aerators.
Q: What is the right horsepower choice for a fountain?
A: The horsepower refers to a motor's size, which determines how large the spray pattern will be. In addition, make sure that your pond is deep enough and that the spray won't spill onto the sides regardless of the horsepower you choose. Our fountains work best with ponds that are a quarter acre or larger in size (depending on their shape). In order to choose the horsepower you need, you need to consider your budget and the size that you'd like.
Q: Should I hire someone for my fountain installation?
A: A licensed electrician should install a power source if you do not already have one installed by the pond. Our fountains are fairly easy to install once the power source is up and running. With nylon rope and cinder blocks anchored on two sides, and powered by a submersible cord that plugs into a power source at the edge of the pond, our fountains float in the middle of the water. We often have customers who install their own fountains in order to save money. You will need to take into account your available resources.
Q: Which is better for me: 110-120V or 210-240V?
A: 210 to 240 volts is generally ideal if the power source is more than 70 feet away from the main breaker. Naturally, your power source needs to be able to handle the higher voltage. In this manner, you can ensure that your fountain receives sufficient power to run continuously. Choosing the lower voltage will result in your fountain running intermittently or turn off immediately after being turned on or it will not operate at its full potential if your pond is too far from the main breaker. If you have any questions, please do not hesitate to contact us.
Q: Does the price include lights?
A: No, lights are not included by default. It is possible to order them simultaneously with your fountain or sometime later. Attaching them to the floating unit is as simple as snapping them on. It is well worth the investment.
Q: What determines the price of the power cord?
A: Material costs are largely responsible for this. Different kinds of power cords are available for fountains, ranging from 14-gauge copper or stainless steel wire to 4-gauge copper or stainless steel wire (dependent on fountain size and cord length).
Q: Is it okay to leave my fountain in water over the winter?
A: Scott Aerator Fountains are the only fountains that remain operational throughout the winter. In the winter, either run them continuously or turn them off completely. Once the ice thaws, they can be turned back on.
Aerators
Q: Can aeration maintain the health of my fish and clean my pond?
A: Without a doubt. Whenever a pond needs to be cleared, the first step is aeration.
Q: What is the best way to choose an aerator?
A: Your pond's size and depth will determine this. There are various categories on the website based on the size of the pond (in acres). Our Surface Aerators and Aerating Fountains are ideal for ponds under six feet deep. Sub-Surface aerators are recommended for ponds over 6 feet deep.
Q: How do I get my aerator installed?
A: A licensed electrician should be consulted if a power source has not yet been installed by the pond. We have designed our aerators so that they easily install once the power source is ready. We have found that most of our customers install the equipment themselves without any problems and save money by doing so. You will need to take into consideration your resources.
Q: How should the aeration setup be configured?
A: An ideal aeration setup would include a surface aerator or aerating fountain, as well as a Sub-Surface aerator. A surface aerator or fountain would circulate oxygen released from the pond's bottom thoroughly.
