Aerate Ponds Up to 6 Acres With an EasyPro PAW Pond Aerator Kit

The EasyPro PA75W, PA83W, PA86W and PA100W are complete bottom-diffused aeration kits for larger ponds. A shore-mounted compressor pushes air through Quick Sink weighted tubing to diffusers on the pond bottom, lifting low-oxygen water to the surface to cut algae, odor and muck and protect fish year-round.

• Four Kit Sizes: The rocking piston PA83W covers ponds up to 3 acres and the PA86W up to 4 acres, both rated to 50 ft deep. The rotary vane PA75W covers up to 4 acres and the PA100W up to 6 acres, in ponds up to 18 ft deep.

• Everything in One Box: Compressor, multi-valve manifold with pressure relief, three to six QS2 Quick Sink diffusers, 300 to 800 ft of Quick Sink weighted tubing and fittings.

• Shore-Mounted, Oil-Free Compressors: No electricity in the water, built to run 24/7.

• 115V or 230V: The PA75W, PA83W and PA86W come in either voltage. The PA100W is 115V.

• Optional Sentinel Deluxe Cabinet: Every model is available in a locking steel ground cabinet with cooling fan and outlet box pre-installed, in 115V or 230V.

Which EasyPro PAW Pond Aerator Do I Need? PA75W, PA83W, PA86W or PA100W

Model	Pond Size	Max Depth	Diffusers	Compressor	Airflow	Amps (115V / 230V)
PA75W	Up to 4 acres	18 ft	4 × QS2 dual-head	3/4 HP Stratus RV75 rotary vane	10 CFM	12 A / 6 A
PA83W	Up to 3 acres	50 ft	3 × QS2 dual-head	3/4 HP Stratus SRC75 rocking piston	6.5 CFM	4.5 A / 2.3 A
PA86W	Up to 4 acres	50 ft	4 × QS2 dual-head	3/4 HP Stratus SRC75 Gen 2 rocking piston	6.5 CFM	4.5 A / 2.3 A
PA100W	Up to 6 acres	18 ft	6 × QS2 dual-head	1 HP Stratus RV100 rotary vane	13.5 CFM	14 A / 7 A

Start with your pond size, then check depth. The rotary vane PA75W and PA100W are rated to 18 ft deep; the rocking piston PA83W and PA86W are rated to 50 ft. Pond 3 acres or smaller? The EasyPro PA kits (PA34, PA50, PA65, PA66) cover ponds up to 3 acres. Choose PAW for ponds over 3 acres, or for more airflow on a 3-acre pond.

EasyPro PA75W, PA83W, PA86W and PA100W Pond Aeration Systems

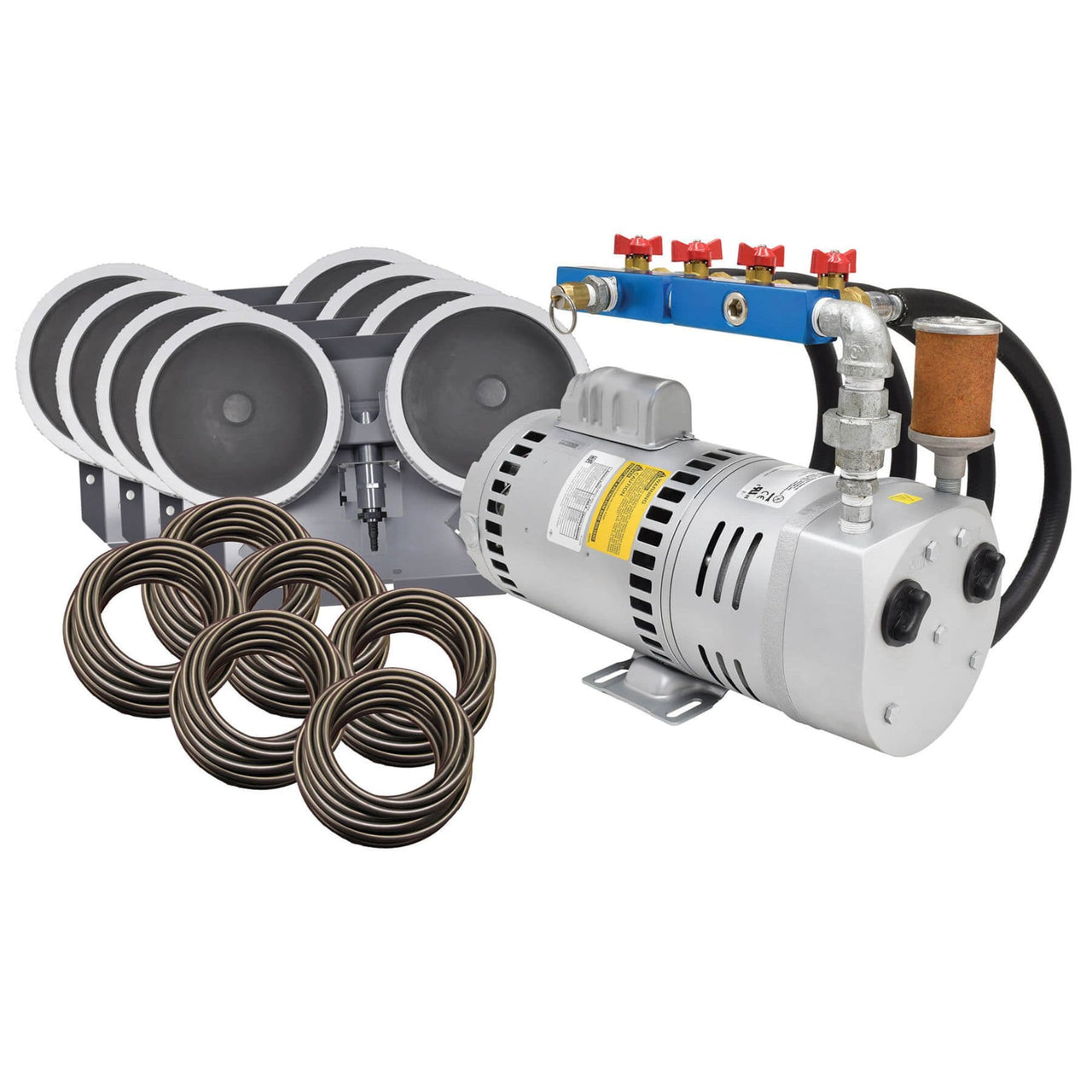

PA75W Pond Aerator By EasyPro

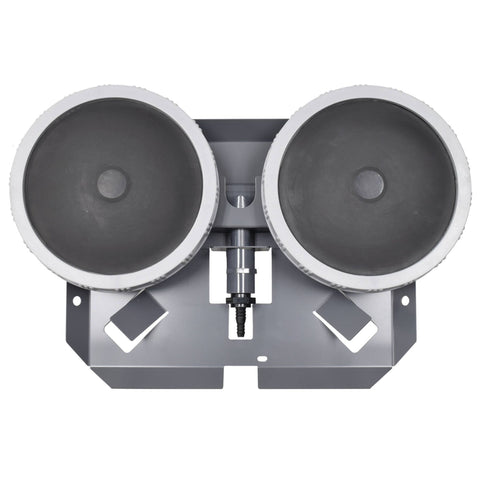

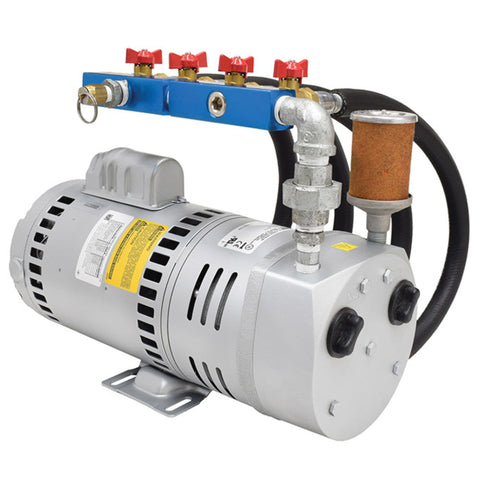

Ponds up to 4 acres and 18 ft deep. 3/4 HP Stratus RV75 rotary vane, 10 CFM, four QS2 Quick Sink diffusers and 600 ft of 1/2″ tubing.

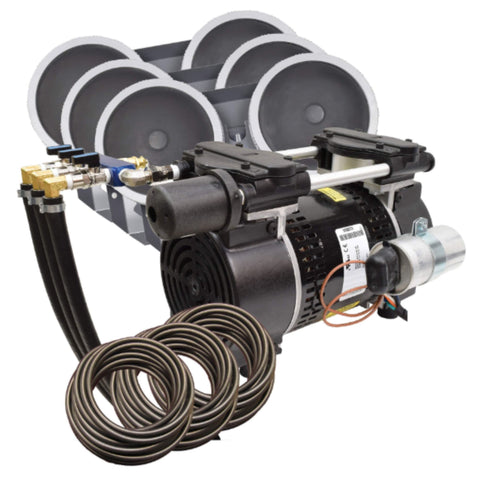

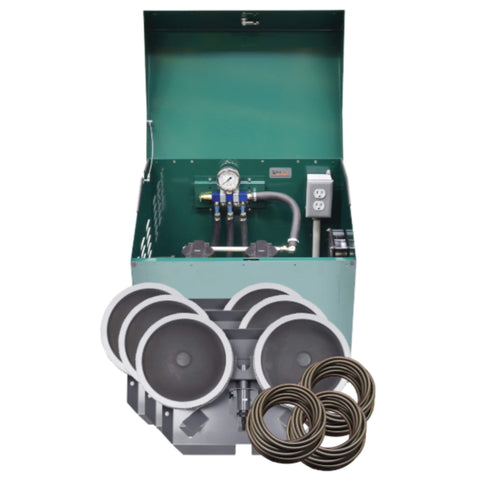

EasyPro PA83W Aerator

Ponds up to 3 acres and 50 ft deep. 3/4 HP Stratus SRC75 rocking piston, 6.5 CFM, three QS2 Quick Sink diffusers and 300 ft of 3/8″ tubing.

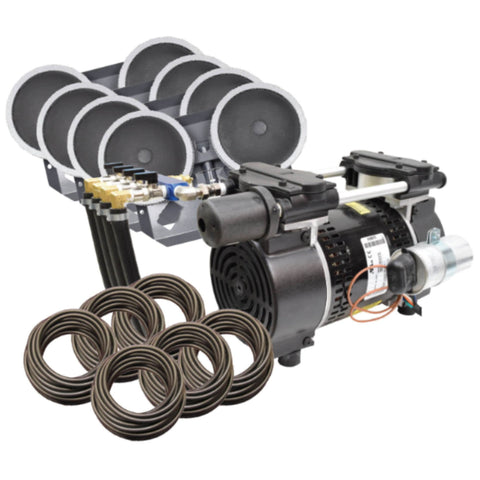

EasyPro PA86W Pond Aeration System

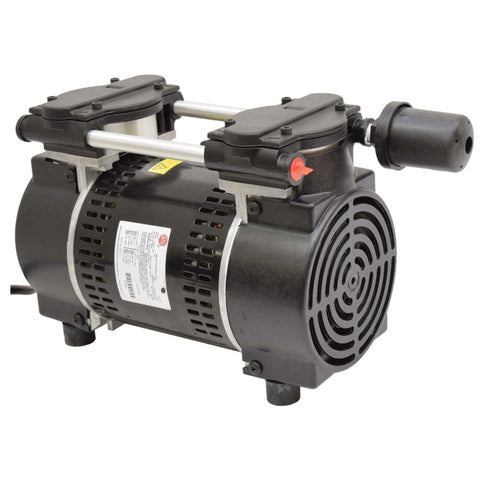

Ponds up to 4 acres and 50 ft deep. 3/4 HP Stratus SRC75 Gen 2 rocking piston, 6.5 CFM, four QS2 Quick Sink diffusers and 600 ft of 3/8″ tubing.

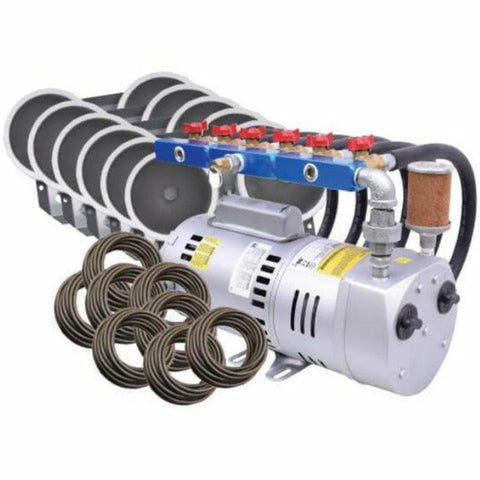

EasyPro PA100W Aeration System

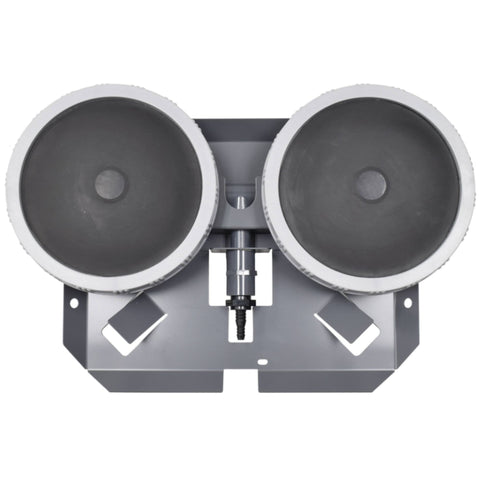

Ponds up to 6 acres and 18 ft deep. 1 HP Stratus RV100 rotary vane, 13.5 CFM, six QS2 Quick Sink diffusers and 800 ft of 1/2″ tubing. 115V only.

What Comes With Each EasyPro PAW Aerator Kit

Model	Compressor	Manifold	Diffusers	Tubing
PA75W	3/4 HP Stratus RV75 rotary vane	Four-valve manifold with pressure relief	4 × QS2 Quick Sink	600 ft of 1/2″ Quick Sink weighted tubing
PA83W	3/4 HP Stratus SRC75	Three-valve manifold with pressure relief	3 × QS2 Quick Sink	300 ft of 3/8″ Quick Sink weighted tubing
PA86W	3/4 HP Stratus SRC75 Gen 2	Four-valve manifold with pressure relief	4 × QS2 Quick Sink	600 ft of 3/8″ Quick Sink weighted tubing
PA100W	1 HP Stratus RV100 rotary vane	Six-valve manifold with pressure relief	6 × QS2 Quick Sink	800 ft of 1/2″ Quick Sink weighted tubing

Every kit also includes a heat-reducing hose, fittings and installation manuals.

Rocking Piston or Rotary Vane? Choosing Your EasyPro PAW Aerator

The PAW kits use two kinds of shore-mounted compressor. Pick by depth first, then by airflow.

• Rocking Piston (PA83W, PA86W): Stratus SRC75 rated to 50 ft deep, 6.5 CFM, 4.5 A at 115V. 2-year compressor warranty, 3/8″ tubing.

• Rotary Vane (PA75W, PA100W): Stratus RV75 or RV100 rated to 18 ft deep, with more air: 10 CFM on the PA75W and 13.5 CFM on the PA100W. 1-year compressor warranty, 1/2″ tubing.

• Deep Pond?: Over 18 ft, choose the PA83W or PA86W.

Cabinet Options for Your EasyPro Pond Aeration System

Option	What You Get	Available On
No Cabinet	The aerator kit without an enclosure.	All models, 115V and 230V

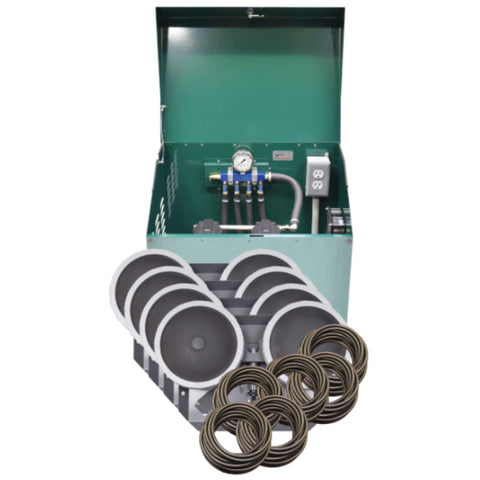

Ground Cabinet	Sentinel Deluxe locking steel cabinet with cooling fan, outlet box, power cord and sound-reducing foam, with the kit’s manifold pre-installed. Includes Quick Sink weighted tubing.	All models, 115V and 230V

Before You Order an EasyPro PAW Pond Aerator Kit

Size by pond acreage first, then check depth. The PA75W and PA100W are rated to 18 ft; the PA83W and PA86W to 50 ft.
The PA75W, PA83W and PA86W come in 115V or 230V. The PA100W is 115V only. Every model is available with or without the Sentinel Deluxe ground cabinet.
Measure the run from the compressor to each diffuser. Need more airline? The PA83W and PA86W use 3/8″ tubing; the PA75W and PA100W use 1/2″.

Warranty: 2 years on the rocking piston compressors (PA83W, PA86W), 1 year on the rotary vane compressors (PA75W, PA100W), 5 years on tubing and diffusers, and 5 years on the Sentinel cabinet.
Every kit ships with installation manuals. You can also download them below.
Not sure which size you need? Contact us with your pond size and deepest point and we will match a kit for you.
