Blue Thumb Elite Pondless Waterfall Kit: A Waterfall and Stream Without the Pond
Blue Thumb Elite Pondless Waterfall Kits give you a full waterfall and stream with no open pond to maintain. Water falls from the Elite box, runs down the stream and drains into a hidden reservoir of Water Matrix blocks, where the pump in the Pump Canyon® vault sends it back to the top.
• Two Waterfall Styles: Cascade (14″ to 40″ wide) or Spillway (16″ or 28″ wide).
• Streams up to 18′ Long: From a compact 6′ stream to an 18′ stream on the Extra Large Cascade kit.
• Pump Canyon® Vault: Keeps the pump out of the gravel for easy access and fewer clogs.
• Fish-Safe EPDM Liner: 45-mil PondGard rubber liner with protective underliner, sized for each kit.
Cascade or Spillway? Choosing Your Blue Thumb Elite Pondless Waterfall System

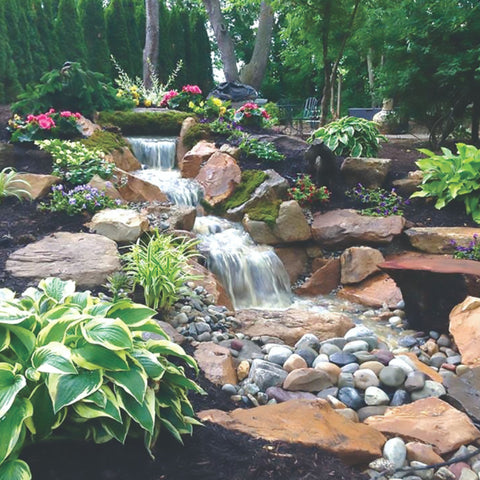

Elite Cascade Kits
Water tumbles over a natural rock lip for a classic, rocky waterfall. Four sizes from 14″ to 40″ wide, with streams from 6′ to 18′.

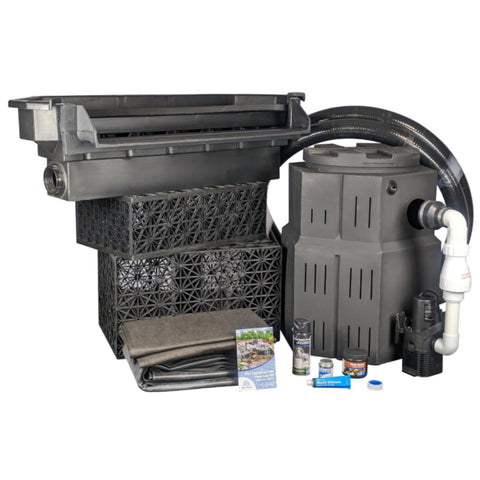

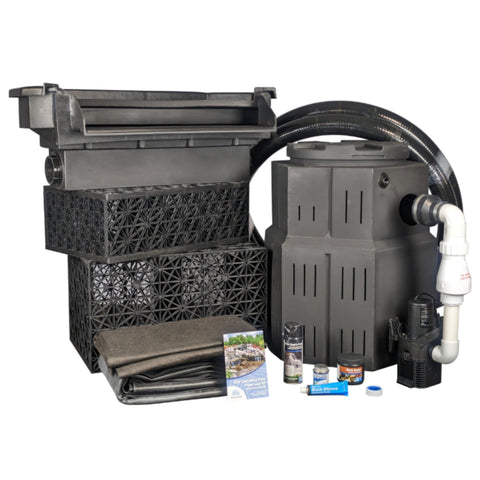

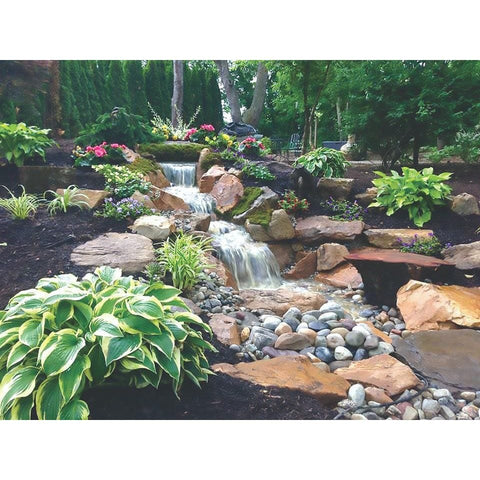

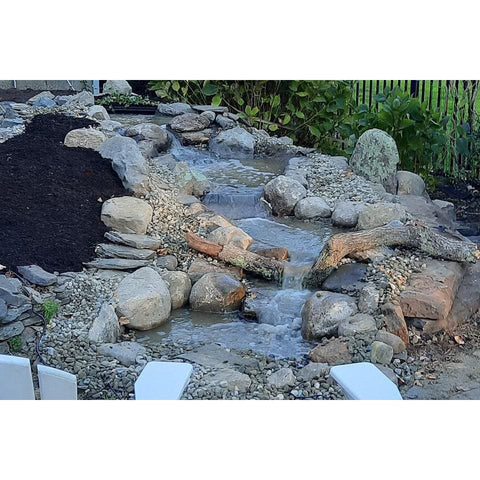

Elite Spillway Kits
Water flows out in a smooth, even sheet. Two sizes, 16″ and 28″ wide, with streams of 6′ or 15′.
Blue Thumb Elite Cascading Pondless Waterfall Kit Sizes

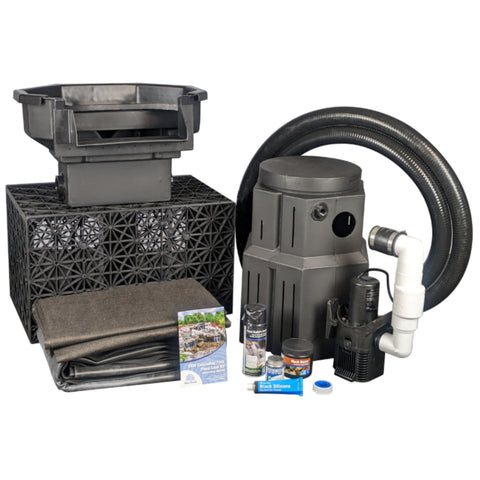

Small 14″ Cascade
PB1229. 6′ stream, 2,100 GPH pump.

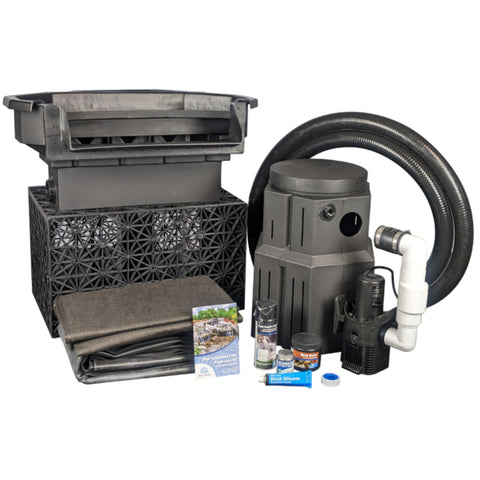

Medium 22″ Cascade
PB1236. 16′ stream, 4,500 GPH pump.
Large 30″ Cascade
PBE30CFK. 17′ stream, 6,000 GPH pump.
Extra Large 40″ Cascade
PBE40CFK. 18′ stream, 7,800 GPH pump.
Which Blue Thumb Elite Pondless Waterfall Kit Do I Need?
| Kit | Model | Waterfall Width | Stream | Pump | Reservoir | Liner | Flex Pipe |
| Cascade Small | PB1229 | 14″ | 6′ L × 1–2′ W | 2,100 GPH | 1 Large Matrix, Small Pump Canyon® | 10′ × 15′ | 2″ × 25′ |
| Cascade Medium | PB1236 | 22″ | 16′ L × 2–4′ W | 4,500 GPH | 3 Large Matrix, Small Pump Canyon® | 10′ × 10′ + 10′ × 20′ | 2″ × 25′ |
| Cascade Large | PBE30CFK | 30″ | 17′ L × 4–6′ W | 6,000 GPH | 3 Large + 3 Small Matrix, Large Pump Canyon® | 15′ × 15′ + 10′ × 20′ | 3″ × 25′ |
| Cascade Extra Large | PBE40CFK | 40″ | 18′ L × 6–7′ W | 7,800 GPH | 4 Large + 4 Small Matrix, Large Pump Canyon® | 15′ × 15′ + 15′ × 20′ | 3″ × 25′ |
| Spillway Small | PB16KIT | 16″ | 6′ L × 1–2′ W | 2,100 GPH | 1 Large Matrix, Small Pump Canyon® | 10′ × 15′ | 2″ × 25′ |

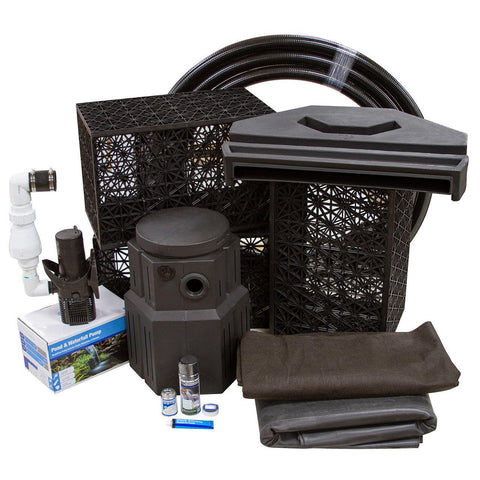

| Spillway Medium | PB28KIT | 28″ | 15′ L × 2–4′ W | 6,000 GPH | 3 Large Matrix, Small Pump Canyon® | (2) 10′ × 10′ + 10′ × 20′ | 2″ × 25′ |
What Comes With a Blue Thumb Elite Pondless Waterfall Kit

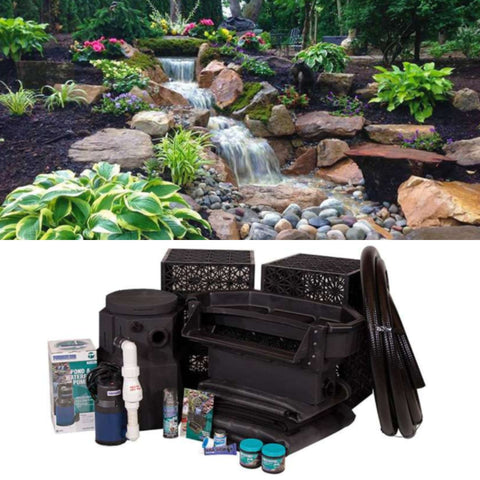

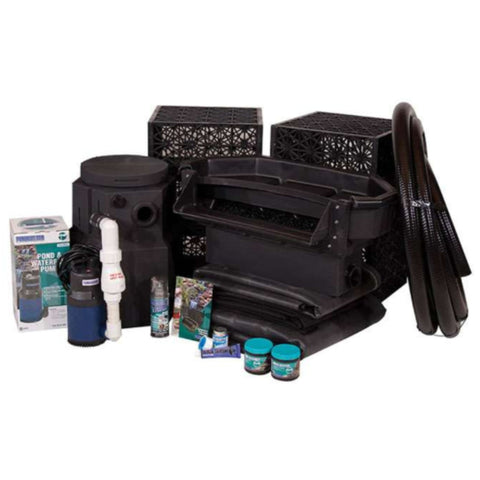

Small and Medium Kits
Elite waterfall box, Blue Thumb pump in a Small Pump Canyon® vault, Water Matrix blocks, liner, underliner and 2″ flex pipe.

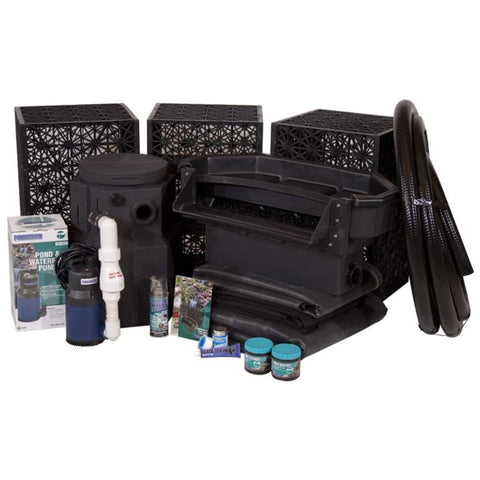

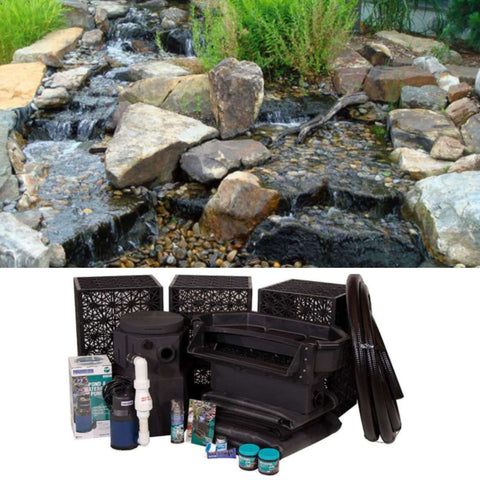

Large and Extra Large Kits
Elite waterfall box, Blue Thumb pump in a Large Pump Canyon® vault, large and small Water Matrix blocks, liner, underliner and 3″ flex pipe.
Every kit includes the Elite waterfall box, submersible Blue Thumb pump, Pump Canyon® vault, pump discharge assembly, Water Matrix reservoir blocks, rubber liner, underliner, black PVC flex pipe, Muck Buster™ water treatment and an installation kit.
Before You Order a Blue Thumb Elite Pondless Waterfall Kit
- Rocks and gravel are not included.
- Pick the kit by the stream length and waterfall width you want; the table above lists each kit's stream size.
- The Large and Extra Large Cascade kits ship by motor freight.
- Looking for a smaller, simpler kit? See the Blue Thumb DIY Cascading Pondless Waterfall Kit.
- Not sure which kit fits your space? Contact us and we will help you choose.
