Enjoy Reliable, Round-the-Clock Aeration With Solar Power Backup
Enjoy uninterrupted pond health with the Airmax SolarSeries Aeration System Battery Backup, engineered to keep your water crystal-clear and oxygen-rich day and night—even in low-light or winter conditions. This advanced system stores solar energy to deliver up to 24 hours of consistent aeration while operating silently and efficiently.
✔ Uninterrupted Operation: Runs continuously up to 24 hours, even after sunset or cloudy days.
✔ Eco-Friendly Efficiency: 100 % renewable solar power means zero monthly operating cost.
✔ Maximum Pond Health: Increases oxygen, reduces muck buildup, and clears murky water fast.
✔ Whisper-Quiet Performance: Designed for near-silent aeration so you enjoy peace and beauty together.
✔ Made in the USA Quality: Crafted with premium American-made solar panels and components built to last.
Experience Dependable, Eco-Friendly Power for Your Pond System
Enjoy durable construction and intelligent design that work together for reliable, maintenance-free performance.
✔ Long-Lasting Battery System: Dual 12-volt AGM batteries store energy for up to 24 hours of runtime.
✔ Durable Locking Cabinet: Powder-coated aluminum housing protects components from weather and tampering.
✔ Smart Cooling & Filtration: Integrated fan and filters keep the system clean, cool, and running smoothly.
✔ Quick & Easy Setup: Preassembled EasyMount solar panels make installation effortless—no guesswork needed.
✔ Advanced Airflow Control: Nickel-plated manifold with precision valves ensures balanced aeration throughout your pond.
Keep Your Pond Flowing Smoothly With Solar Backup Power
✔ Optimized Aeration Coverage: Aerates ponds up to 2 acres (0.8 ha) and 20 feet (6 m) deep for balanced water quality.
✔ High-Output Diffusers: ProAir 2 weighted diffusers release ultra-fine oxygen bubbles for efficient water circulation.
✔ Precision Engineering: Each system is factory-tested and tuned for long-term reliability.
✔ Protected Investment: Includes 3-year equipment warranty and 25-year solar panel coverage.
✔ Effortless Sustainability: Enjoy pristine, oxygen-rich water with zero electricity use or monthly cost.

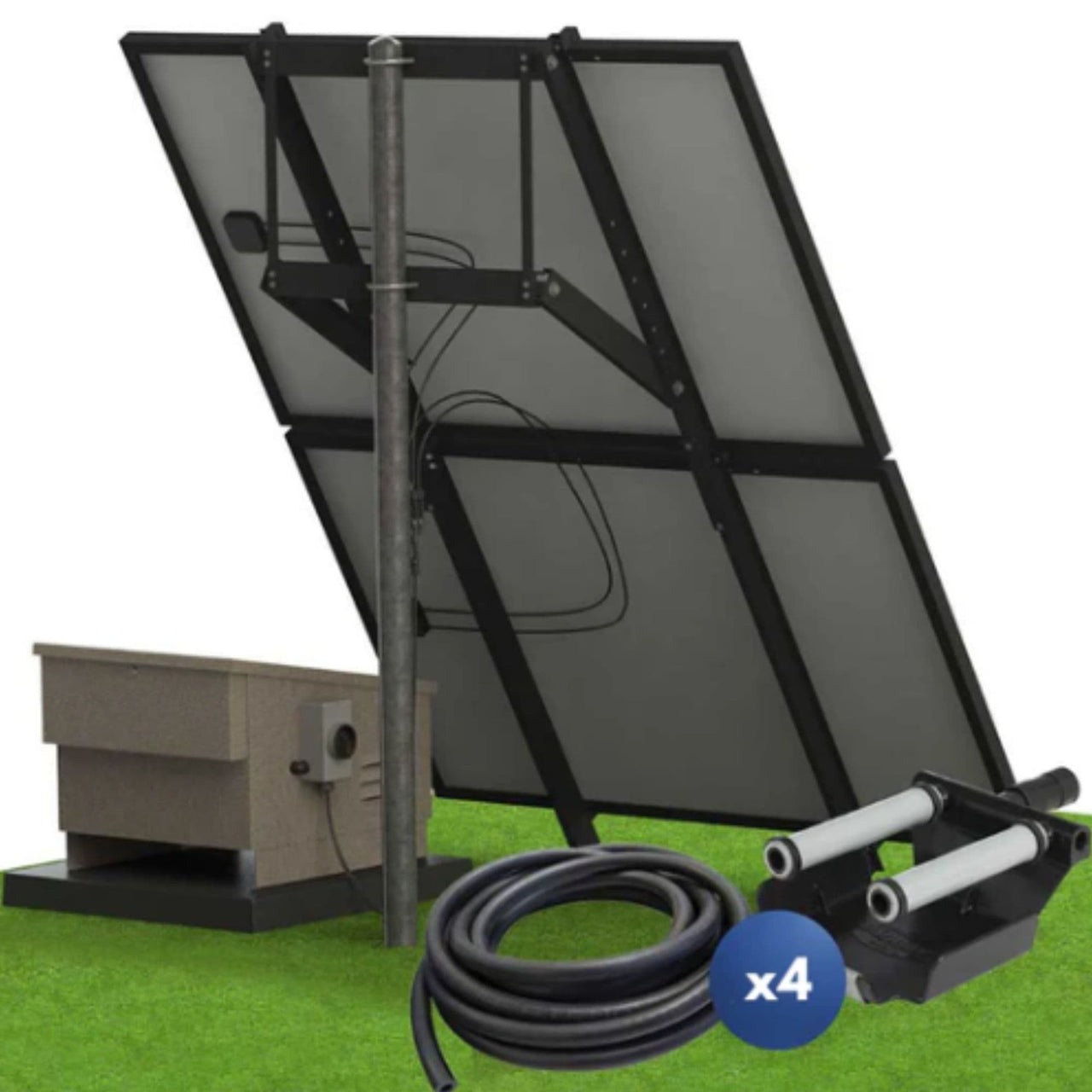

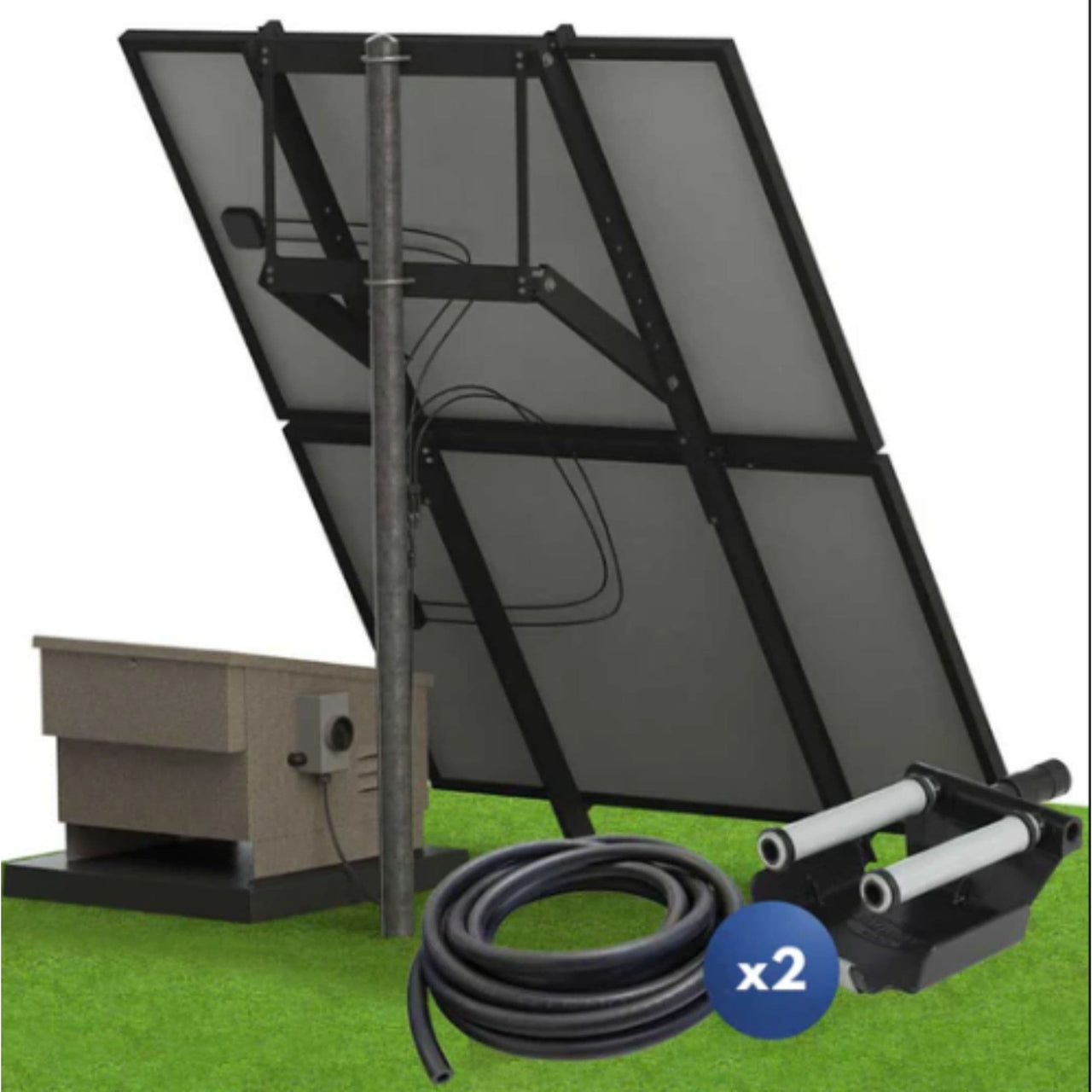

Airmax SolarSeries Aeration System Battery Backup: What Comes in the Box
SilentAir Direct Drive Air Compressor
Harness the power of the sun to energize your aeration system throughout the day. The high-efficiency SilentAir Direct Drive compressor operates quietly and smoothly while simultaneously charging the backup batteries for uninterrupted performance.
Battery Backup
Enjoy peace of mind knowing your system keeps running—even after dark. Two 12-volt AGM batteries store solar energy during daylight hours to provide up to 24 hours of reliable nighttime aeration.
MPPT Smart Controller
Stay in control wherever you are. The MPPT Smart Controller features Bluetooth connectivity, allowing you to monitor run-time, voltage, and system performance directly from your smartphone.

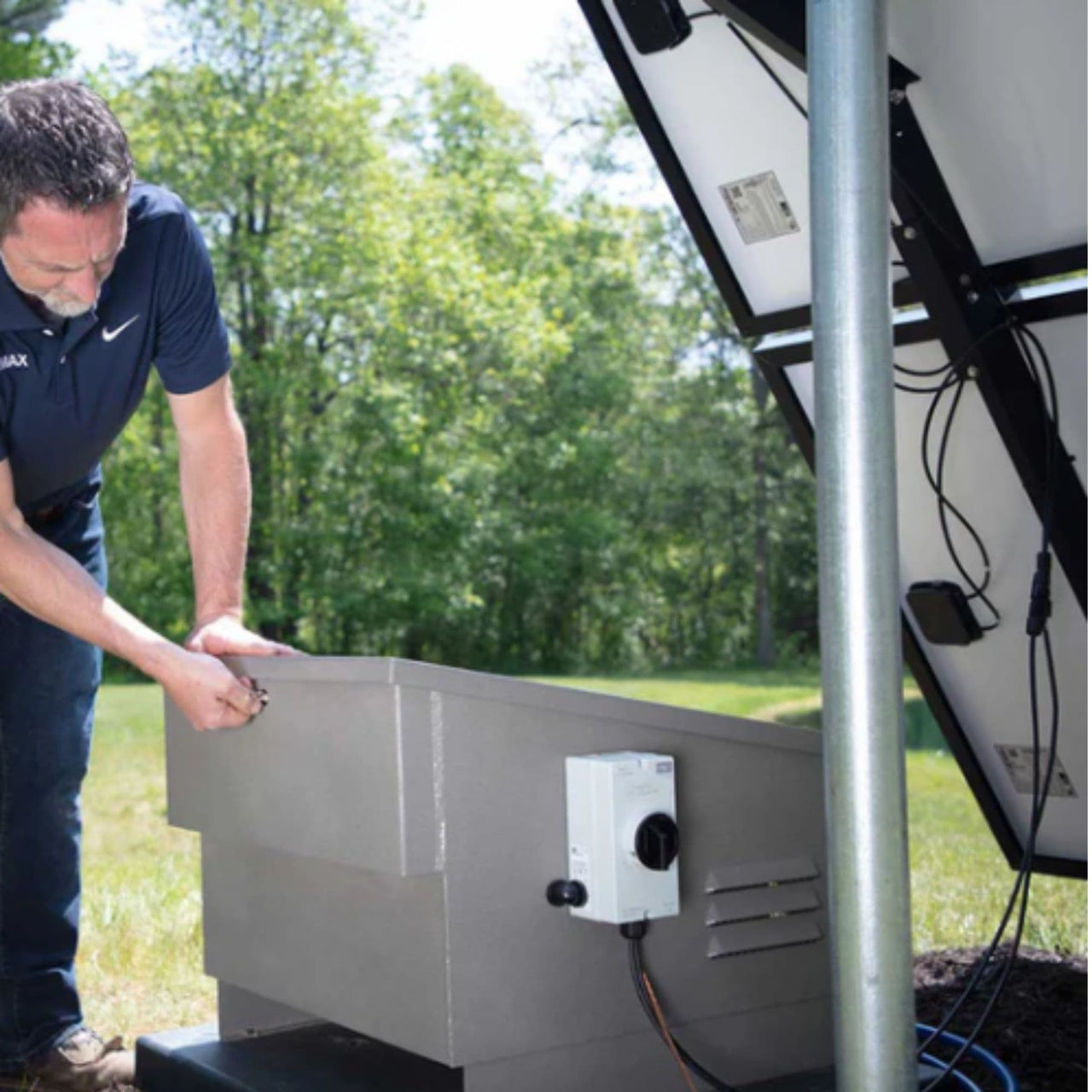

Large Durable Aluminum Cabinet
Protect your investment with a rugged, powder-coated aluminum cabinet designed for long-term durability. Its tamper-proof construction and integrated ventilation system keep internal components safe, clean, and cool.

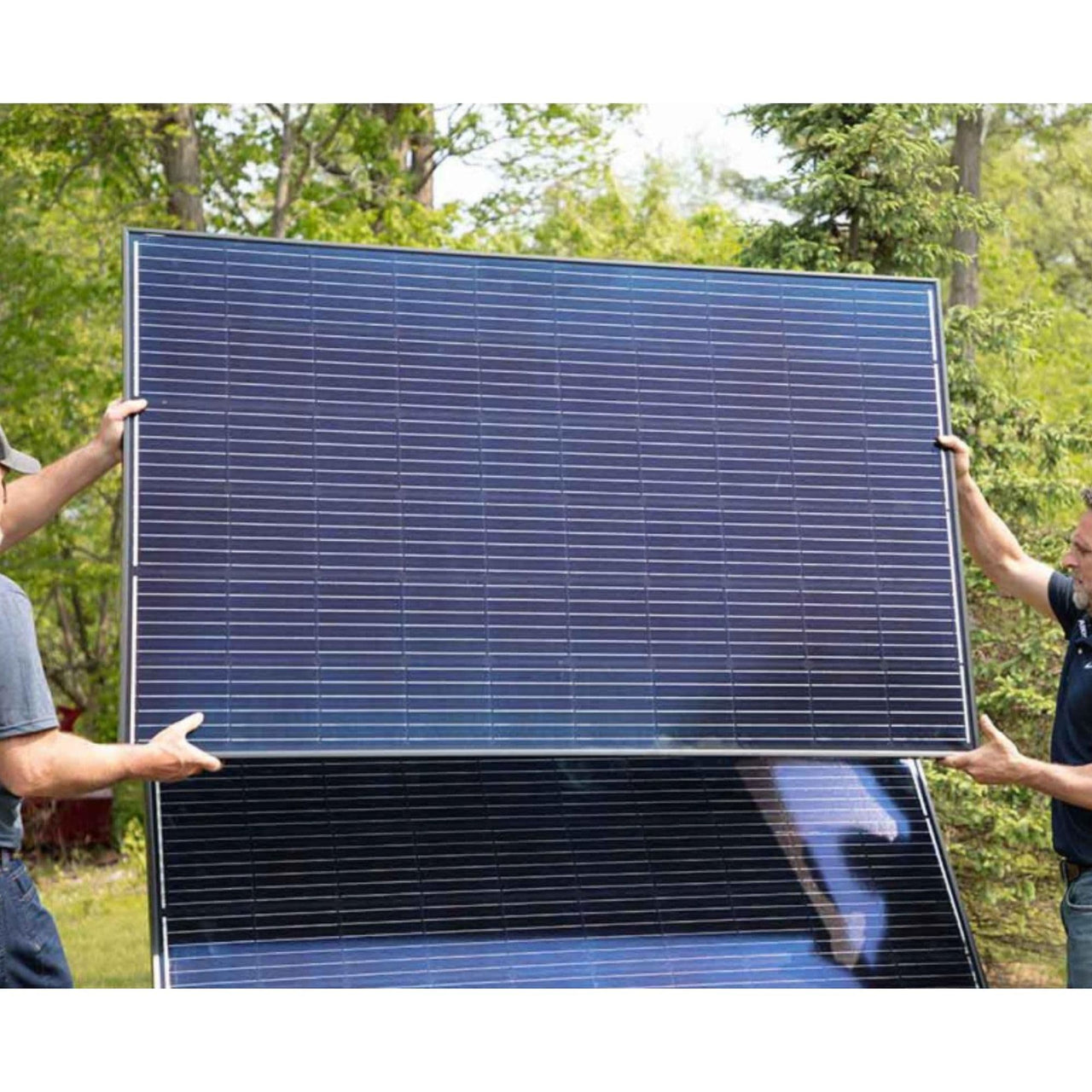

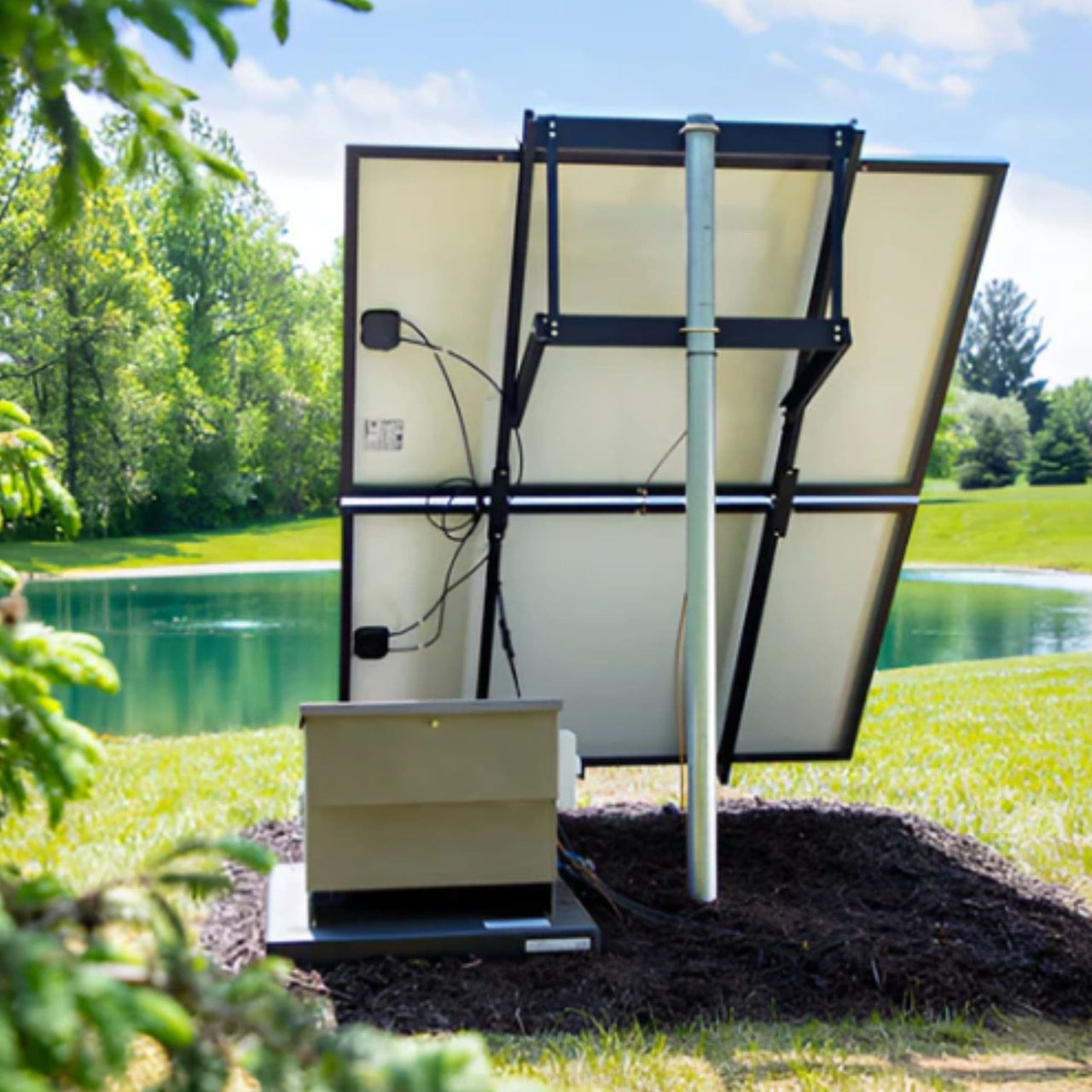

EasyMount Solar Panels
Experience effortless installation with the preassembled EasyMount system. Two high-output American-made solar panels provide direct, dependable power for your aeration motor while maximizing energy efficiency.
Dual Air Filters
Breathe easy knowing your system is fully protected. Dual air filters safeguard the compressor from debris and contaminants, optimizing performance and extending service life.
Weighted Diffusers
Maximize oxygen delivery with the innovative ProAir 2 Weighted Diffusers. Their self-sinking sled design keeps them perfectly positioned for even aeration across the pond, reducing maintenance and setup hassle.
Pressure Gauge & Relief Valve
Easily monitor and maintain top performance. The integrated pressure gauge tracks system output, while the relief valve prevents over-pressurization to ensure safe, consistent operation.
Airmax SolarSeries Aeration System Battery Backup Technical Specifications
| Feature | S320-BB Model | S340-BB Model |
| Maximum Pond Size | Aerates ponds up to 2 acres (0.8 ha) | Aerates ponds up to 4 acres (1.6 ha) |
| Maximum Depth | Operates effectively up to 20 ft (6 m) deep | Operates effectively up to 20 ft (6 m) deep |
| Runtime | Up to 24 hours of continuous operation | Up to 24 hours of continuous operation |
| Compressor Type | SilentAir™ 24V DC Direct Drive Compressor | SilentAir™ 24V DC Direct Drive Compressor |
| Battery Type | Two 12 V AGM deep-cycle batteries | Four 12V AGM deep-cycle batteries |
| Air Output (CFM) | Up to 2 CFM (0.057 m³/min) | Up to 4 CFM (0.113 m³/min) |
| Voltage | 24 V DC | 24 V DC |
| Solar Panel Type | (2) Monocrystalline (60-cell) panels | (4) Monocrystalline (60-cell) panels |
| Solar Panel Dimensions | 75″ L × 41.5″ W × 1.57″ H (190.5 × 105.4 × 4 cm) | 75″ L × 41.5″ W × 1.57″ H (190.5 × 105.4 × 4 cm) |
| Connector Type | MC4 solar connectors | MC4 solar connectors |
| Diffuser Type | (2) ProAir 2 Weighted Diffusers | (4) ProAir™ 2 Weighted Diffusers |
| Airline | 5/8 in I.D. self-weighted airline | ⅝″ I.D. self-weighted airline |
| Airline Quantity | No airline or 200 ft (100 ft × 2 rolls) | No airline or 400 ft (100 ft × 4 rolls) |
| Cabinet Type | Powder-coated aluminum with composite base | Powder-coated aluminum with composite base |
| Cabinet Dimensions | 30.25″ L × 28.75″ W × 21″ H (76.8 × 73 × 53.3 cm) | 30.25″ L × 28.75″ W × 21″ H (76.8 × 73 × 53.3 cm) |
| Cooling Fan | Yes – integrated for maximum airflow and efficiency | Yes – integrated for maximum airflow and efficiency |
| Mounting Pole Requirement (Not Included) | One 2.5″ DIA (2.875″ O.D. / 2.47″ I.D.) × 10 ft (min) Schedule 40 galvanized steel pole | One 2.5″ DIA (2.875″ O.D. / 2.47″ I.D.) × 10 ft (min) Schedule 40 galvanized steel pole |
| Noise Level | 45 – 50 dB at 5 ft (whisper-quiet operation) | 45–50 dB at 5 ft (whisper-quiet operation) |
| Compressor, Electrical Components & Hardware Warranty | 3 Years | 3 Years |
| Diffusers & Airline Warranty | 5 Years | 5 Years |
| Solar Panels Warranty | Limited 25 Years | Limited 25 Years |
| Aeration Cabinet Warranty | 10 Years | 10 Years |
| Battery Warranty | 1 Year | 1 Year |
