How to Aerate a Pond
A pond without aeration is a pond waiting for trouble. As water warms in summer, it separates into layers. The warm top layer holds oxygen. The cold bottom layer slowly loses it, becoming a dead zone full of toxic gases and muck-building bacteria.
Aeration fixes this by circulating the entire water column. It keeps oxygen levels high from top to bottom, supports the aerobic bacteria that digest organic waste, and prevents the sudden turnovers that kill fish in under 12 hours.
This guide covers the three main aeration methods, how to size a system for your pond, installation steps, seasonal operation, and off-grid power options. You will know exactly what to buy and how to set it up.
- Ponds deeper than 8-10 feet need bottom diffused aeration; shallower ponds do fine with surface aeration.
- Size diffused systems at a minimum of 1.5 CFM per acre-foot of pond volume.
- Run aeration 24/7 year-round for best results, including under ice in winter.
- Never start a bottom diffuser suddenly in a stratified pond. Ramp up over 7 days to avoid a fish-killing turnover.
- Electric systems are most reliable; solar works for remote ponds under 10 feet deep; wind suits consistently breezy sites.
Signs Your Pond Needs Aeration
Not every pond owner recognizes the warning signs. Here is what to watch for:
- Foul odors. A rotten egg smell means hydrogen sulfide gas is building up in an oxygen-starved bottom layer.
- Excessive algae. Blue-green algae blooms in late summer often signal nutrients released from anoxic bottom sediment.
- Fish gasping at the surface. This is most visible at dawn, when oxygen levels hit their daily low.
- Poor water clarity. Suspended sediment and murky water point to weak circulation.
- A thick muck layer. Organic waste accumulates when anaerobic bacteria (which work about 10 times slower than aerobic species) dominate the bottom.
- Fish kills. Deaths during hot summer stretches or under winter ice are the most severe symptom.
If you see two or more of these, your pond is struggling to oxygenate itself. Aeration is the fix.
Types of Pond Aeration Systems: Surface vs. Bottom Diffused
Depth is the number one factor in choosing an aeration system. The wrong choice wastes money and leaves your pond's deepest water untreated.

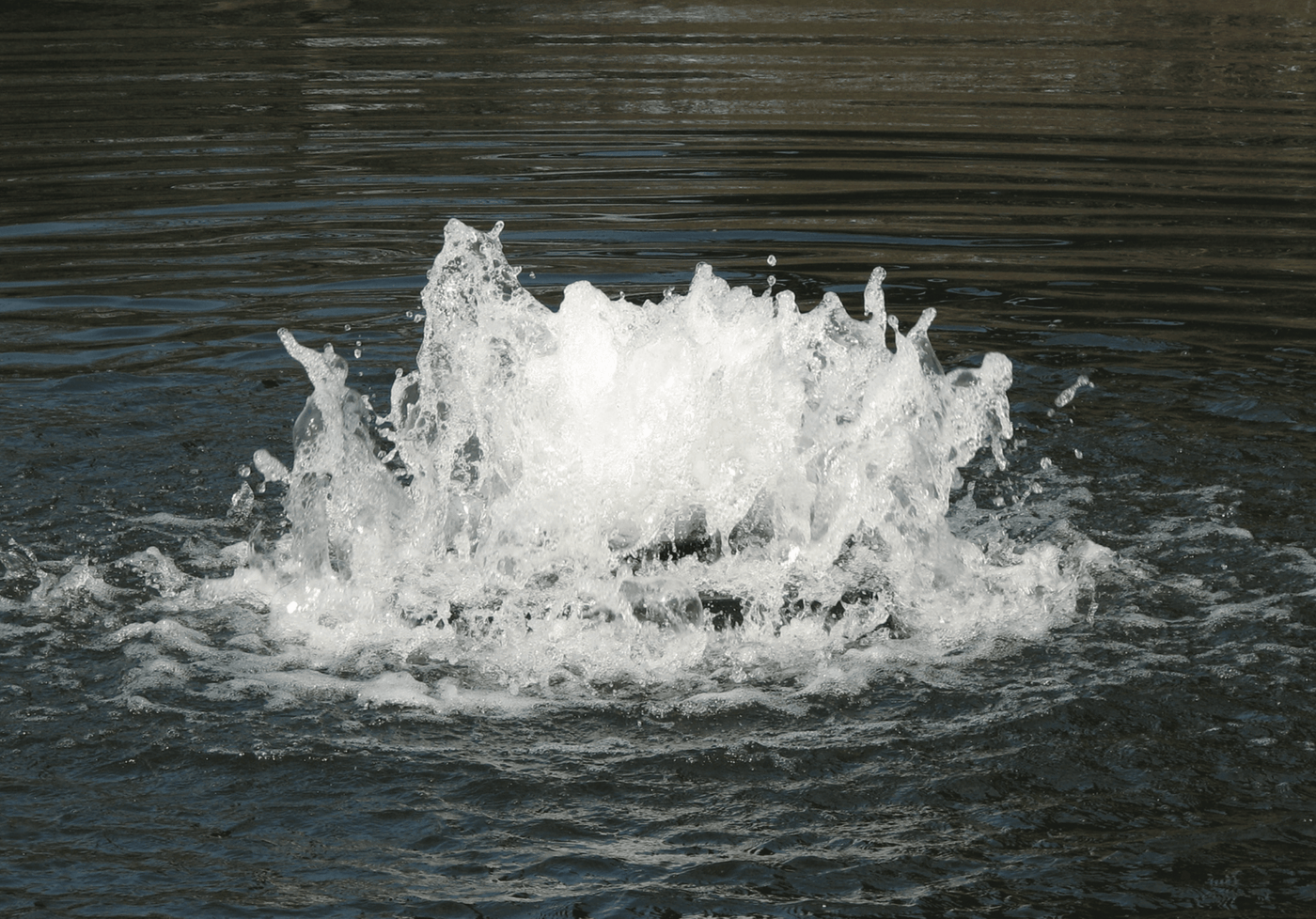

Surface Aeration: Fountains and Agitators
Surface aerators float on the pond and pull water up from the top 1 to 2 feet, spraying it into the air. Oxygen transfers as droplets fall back to the surface.
Best for: shallow ponds under 6 feet deep, decorative water gardens, and ponds where aesthetics matter.
Limitations: surface systems only oxygenate the top 4 to 5 feet of the water column. A 1 HP surface aerator rated for 1 acre cannot help the bottom of a 10-foot-deep pond. That deep water stays oxygen-depleted.
Surface systems also cost 2 to 3 times more to run than bottom diffusers because they move heavy water rather than light air.
Bottom Diffused Aeration: The Deep-Water Solution
A shore-mounted compressor pushes air through weighted tubing to diffuser membranes sitting on the pond bottom. Rising bubbles create an airlift effect that drags oxygen-depleted bottom water to the surface for gas exchange.
Best for: ponds deeper than 8 to 10 feet, fish ponds, and muck reduction.
Advantages: diffused systems oxygenate the entire water column, prevent thermal stratification, and cost less to run continuously. Diffusers typically need cleaning only once a year, and compressor maintenance is minimal.
Surface Aeration
- Adds visual appeal with fountain patterns
- Effective and efficient in ponds under 6 feet deep
- Simpler installation, no underwater airline
Bottom Diffused Aeration
- Oxygenates the full water column, not just the top few feet
- Costs 2-3 times less to operate than surface systems
- Prevents stratification and the toxic gas buildup that causes fish kills
The Depth Rule of Thumb
- Under 6 feet deep: Surface aeration is generally sufficient.
- 6 to 10 feet deep: The dividing line. Either system can work depending on your goals.
- Over 10 feet deep: Bottom diffused aeration is the clear choice. Surface units cannot reach the oxygen-starved hypolimnion.
One exception: trout ponds. Trout need cold water, and mixing the full column can warm it. Surface aeration is often preferred regardless of depth.
How to Choose: Key Factors for Selecting a System
Pond Size and Volume
Start with your pond's volume, not just its surface area. The formula is simple:
Surface area (acres) × average depth (feet) = acre-feet
One acre-foot equals 43,560 cubic feet. A 1-acre pond averaging 6 feet deep holds 6 acre-feet of water.
The industry standard is a minimum of one complete turnover per day. That means your aeration system must circulate the entire pond volume every 24 hours.
Understanding Key Metrics: CFM, PSI, and Turnover Rate
- CFM (cubic feet per minute): The volume of air your compressor delivers. Diffused systems need at least 1.5 CFM per acre-foot of water.
- PSI (pounds per square inch): The pressure required to push air to your diffuser depth. Water adds roughly 1 PSI per 2.31 feet of depth. An 8-foot-deep pond needs about 3.46 PSI just to overcome water pressure.
- Turnover rate: How long it takes to circulate the full pond volume once.
Matching System to Your Goals
- Fish health and winterkill prevention: Diffused aeration for ponds over 6 feet deep, run year-round.
- Algae and muck control: Aeration keeps phosphorus locked in bottom sediment and speeds aerobic decomposition.
- Water clarity and aesthetics: Aerating fountains add visual appeal while oxygenating shallow ponds.
- Heavily stocked ponds: Koi and goldfish ponds may need double the standard aeration capacity due to high biological oxygen demand.
Sizing Reference Table
| Pond Size | Average Depth | Recommended System | Rough Output |
|---|---|---|---|
| Up to 1/4 acre | Under 6 ft | Surface aerator or fountain | 1/4 to 1/2 HP |
| 1/4 to 1/2 acre | Under 6 ft | Surface aerator | 1/2 to 1 HP |
| 1/2 to 1 acre | 6-10 ft | Bottom diffused, 1-2 diffusers | 1/2 HP compressor, 1.5-3 CFM |
| 1 to 2 acres | 8-12 ft | Bottom diffused, 2-3 diffusers | 3/4 HP compressor, 3-5 CFM |
| 2 to 5 acres | 10+ ft | Bottom diffused, multiple stations | 1+ HP compressor, 5+ CFM |
Powering Your System: Electric, Solar, and Wind Options
Electric Aeration Systems
Electric compressors are the most reliable and efficient option when power is available near the pond. Two main types exist:
- Linear diaphragm compressors: Quiet, sealed units best for ponds up to about 8 feet deep. They produce good CFM but limited PSI. Many can sit outside without a cabinet.
- Rocking piston compressors: Higher PSI output for deep water and heavy-duty use. They can push air down 30 to 50 feet. They generate heat, so they need ventilation and protection from the elements.
A well-maintained electric system lasts 10 years or more. One linear diaphragm compressor ran 24/7 at about 7 feet of depth from 2009 to 2015 before failing.
Solar-Powered Aeration
Solar systems pair photovoltaic panels with a battery bank and DC or AC compressor. They work best for remote ponds where running electrical lines is cost-prohibitive.
Solar aeration operates most effectively in water 10 feet deep or less. Greater depth means more backpressure, which demands more motor energy and raises operating temperatures. That can shorten motor life.
Modern systems offer real capability. The Keeton Solaer SB-2.3, for example, aerates up to 3 acres, runs about 20 hours per day, and carries a battery backup that sustains operation up to 3 days without sun. Newer 2025 models add lithium (LiFePO4) batteries for longer life and faster recharging than traditional AGM batteries.
Limitations: cloudy days, low winter sun angles, and battery capacity all constrain output. Solar produces less air per dollar over 20 years than wind or electric.
Wind-Powered Aeration
Windmills drive a compressor directly from turbine power, with no electricity required. They perform best in locations with consistent wind.
Most windmill aerators handle depths up to about 20 feet (roughly 15 PSI). They start turning at wind speeds as low as 3 to 5 mph, though output at that speed is minimal. At 20 to 25 mph, a standard windmill produces about 1 CFM; high-efficiency units reach 4 to 4.5 CFM.
The Koenders Dual Diaphragm Windmill dominates this market with roughly 90% share and over 100,000 systems installed globally.
Trade-offs: operation is intermittent, and moving parts need regular maintenance. But over 20 years, wind systems cost $3,000 to $6,000 total, versus about $11,500 for solar direct-drive systems that need frequent motor replacements.
Cost Comparison: Electric vs. Solar vs. Wind
| Factor | Electric | Solar | Wind |
|---|---|---|---|
| Upfront cost | $500-$3,000 | $2,500-$8,000 | $3,000-$6,000 |
| 20-year total cost | Lowest (grid power) | ~$11,500 | $3,000-$6,000 |
| Reliability | Highest, runs 24/7 | Dependent on sun and battery | Dependent on wind |
| Best depth | Any | Under 10 ft | Under 20 ft |
| Maintenance | Low | Motor replacements every 1-2 years | Regular mechanical upkeep |
| Best for | Ponds with nearby power | Remote ponds, shallow | Consistently windy sites |
Step-by-Step Installation Guide for Diffused Aeration
Most standard kits install in 2 to 4 hours. Here is the process.
Step 1: Position the Compressor
Place the compressor cabinet on a stable, level surface above the high-water mark. It must stay dry even during floods. Shade the cabinet and ensure adequate airflow for cooling. Piston compressors generate heat, and heat will kill a compressor.
Step 2: Run the Airline
Bury the line from the compressor to the pond edge 4 to 6 inches deep to protect it from frost and lawn equipment. Use self-sinking weighted tubing for underwater sections.
Measure the distance to your deepest point and add 20% slack. For runs over 100 feet, step up your tubing diameter to reduce friction loss. At 2 CFM flow, 3/8-inch tubing loses 0.45 PSI per 100 feet; 1/2-inch loses only 0.14 PSI.
Step 3: Place Diffusers
Position diffusers at the pond's deepest points. This maximizes circulation and breaks the thermocline. In L-shaped or multi-basin ponds, each deep basin needs its own diffuser station to eliminate dead zones.
A 1/2-acre pond typically needs one medium-output compressor with 1 to 2 diffuser plates. A 1.5-acre pond may need 2 to 3 stations depending on shape.
Step 4: Install the Check Valve
A check valve is non-negotiable. This one-way valve prevents water from flowing back up the airline and destroying your compressor when it shuts off. Install one at the compressor or at each diffuser, with the arrow pointing toward the diffuser.
Step 5: Test and Adjust
Turn on the system and check for even bubble distribution across all diffusers. If you split lines to multiple diffusers at different depths, use ball valves to balance airflow so each station produces a similar boil.
Operating, Maintaining, and Seasonal Tips
Gradual Start-Up: Avoiding Turnover Shock
If your pond is already stratified, suddenly turning on a bottom diffuser can mix toxic bottom water through the entire pond and kill fish within hours. Ramp up gradually instead:
- Day 1: 30 minutes
- Day 2: 1 hour
- Day 3: 2 hours
- Day 4: 4 hours
- Day 5: 8 hours
- Day 6: 12 hours
- Day 7: 24 hours
The best time to start a new system is early spring, before stratification sets in, or late fall after the pond has mixed naturally.
Seasonal Operation
- Summer: Run 24/7. This is the most critical season for preventing stratification, especially in southern climates.
- Winter: Keep running to maintain an ice-free area for toxic gas exchange and prevent winterkill. In very cold climates, shut down all but one or two diffusers in shallow water to keep a couple of holes open in the ice.
- Spring and fall: These are natural turnover periods. Keep your system running to manage the mixing event.
When water temperatures exceed 83-85°F, use a timer to run aerators primarily at night. This prevents daytime destratification from warming the entire water column and stressing fish.
Maintenance Checklist
- Replace or clean compressor air filters every 6-12 months.
- Check airline connections for leaks monthly.
- Clean diffuser membranes once a year; check for calcium scaling in hard water.
- Install a 0-10 PSI pressure gauge on a T-fitting at the compressor outlet. A significant pressure change signals a leak or clogged diffuser.
- Protect the compressor from winter weather with a ventilated cover.
Electrical Safety Requirements
All electric aeration equipment must plug into a GFCI (Ground Fault Circuit Interrupter) outlet. For systems over 1 HP, verify the amperage draw against your circuit capacity. Use outdoor-rated extension cords and waterproof all connections.
Alternative and Natural Aeration Methods
Aquatic Plants as Oxygen Producers
Submerged oxygenating plants like anacharis (Egeria densa) and coontail (Ceratophyllum demersum) produce oxygen through photosynthesis during daylight. Studies of coontail show dissolved oxygen levels ranging from 8.39 to 10.32 mg/L, well within the range fish need.
The catch: plants consume oxygen at night. Heavy planting without mechanical aeration can actually deplete oxygen in the early morning hours. Treat plants as a complement to mechanical aeration, not a replacement.
DIY and Low-Cost Options
Recirculating pumps and DIY spray bars can add some surface agitation to small ponds. They work for water gardens under a few thousand gallons.
Limitations: homemade systems rarely move enough water to prevent stratification in a real pond. They also lack the reliability and oxygen transfer efficiency of purpose-built equipment.
When Natural Methods Aren't Enough
Plants and DIY solutions suit small ornamental ponds only. If you have fish, a muck problem, or a pond deeper than 6 feet, invest in a proper aeration system. Browse pond aerators to see your options, or compare surface aerators against subsurface diffused systems directly.
Frequently Asked Questions
How long should I run my pond aerator?
Run it 24/7 year-round. Most manufacturers now recommend continuous operation to prevent stratification, maintain gas exchange, and keep oxygen levels stable. The only exception is a gradual 7-day start-up for newly installed systems in stratified ponds.
Can I aerate a pond without electricity?
Yes. Solar-powered systems work well for ponds under 10 feet deep, and wind-powered aerators suit consistently breezy locations. Both cost more upfront than electric systems but eliminate the need to run power lines to a remote pond. See our [solar pond aerators](/collections/solar-pond-aerators) for off-grid options.
How much does it cost to aerate a pond?
A complete diffused aeration kit for a 1/2-acre pond typically costs $500 to $1,500. Surface aerators run $800 to $3,000 depending on horsepower. Solar systems start around $2,500. Operating costs for electric bottom diffusers are modest, often under $20 per month for a small pond.
Will aeration get rid of algae?
Aeration reduces algae over time by keeping phosphorus locked in bottom sediment and by mixing algae cells into deeper, darker water where they grow more slowly. It also shifts the species balance away from noxious blue-green algae toward less harmful green algae. Expect improvement over weeks to months, not overnight.
How deep should diffusers be placed?
Place diffusers at the deepest point of your pond to maximize circulation and break the thermocline. Do not use bottom diffused aeration in water shallower than 4 feet, where bubbles have too little residence time to transfer oxygen efficiently.
The Bottom Line: Your Aeration Action Plan
- Assess your pond. Measure surface area and average depth. Note any symptoms like odors, algae, or fish gasping.
- Choose the right type. Bottom diffused for ponds over 8-10 feet deep; surface aeration for shallower ponds.
- Size it correctly. Use at least 1.5 CFM per acre-foot for diffused systems. When in doubt, size up.
- Install with safety in mind. Place the compressor above the flood line, bury airlines, use check valves, and plug into a GFCI outlet.
- Start gradually and run consistently. Ramp up over 7 days in stratified ponds, then run 24/7 year-round.
Aeration is the single best investment you can make in your pond's long-term health. It prevents fish kills, reduces muck, controls algae, and keeps your water clear. Start with the right system for your depth and size, and your pond will thank you for decades.
