Pond Liners

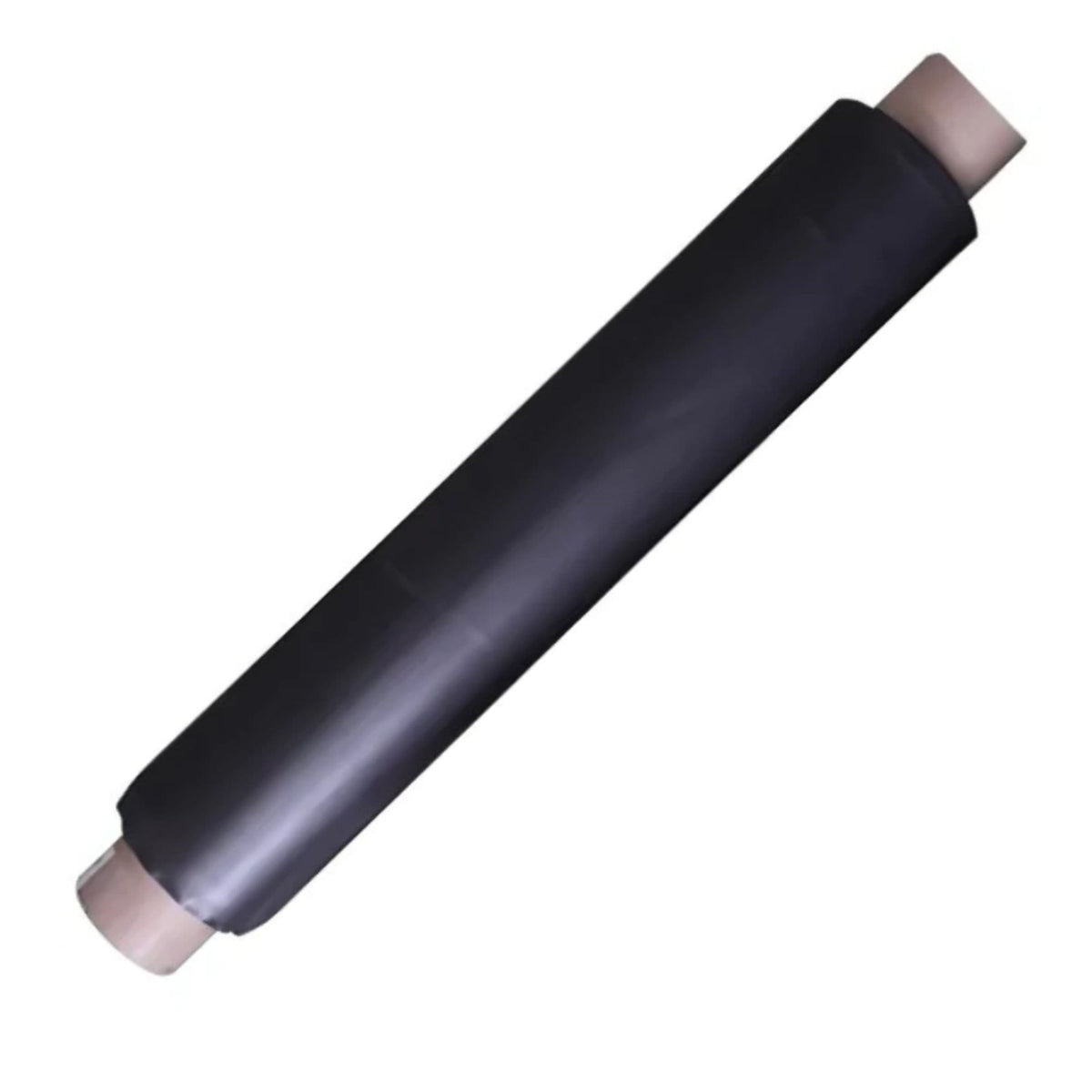

EasyPro DuraLiner Roll – 45mil EPDM Rubber Pond Liner 45 mil EPDM liner is the preferred choice of professional landscapers, nurseries and pond builders for koi ponds, water gardens, water features, garden ponds, retention ponds, commercial ponds, artificial ponds, decorative ponds, recreational ponds, swim ponds, golf course ponds, streams and water features. DuraLiner™ is fish and plant friendly, easy to shape and form, and the material stays flexible even in extreme temperatures from -40° to 175°F. This durable liner is puncture, weather and UV resistant – will not crack with age. Features: Only first quality virgin resins are used and all materials meet or exceed the requirements of ASTM D7465 (Type 1) Technical Specifications. Easy to shape and form! Stays flexible even in extreme temperatures from -40° to 175°F. Durable 45 mil rubber is weather and UV resistant – will not crack with age. Puncture resistant DuraLiner™ is also available in custom cut sizes, and in various pre-cut boxed sizes Fish and plant friendly 20 year limited warranty Specifications: Name Quantity Name Quantity Liner Size 10' x 50' Roll Liner Size 30' x 50' Roll Core Length 7' Core Length 7' Thickness (mil) 45 mil Thickness (mil) 45 mil Tensile Strength (MPa) 9.1 Tensile Strength (MPa) 9.1 350% 350% 350% 350% Angular Tear (kN/m) 27 Angular Tear (kN/m) 27 Tensile Set (%) 7% Tensile Set (%) 7% Brittleness Point Max PASS - No cracks at -49?F (-45?C) Brittleness Point Max PASS - No cracks at -49?F (-45?C) Ozone Resistance No Cracks/PASS Ozone Resistance No Cracks/PASS Tensile Strength (MPa) Heat Aged 670 hours at 240? 9 Tensile Strength (MPa) Heat Aged 670 hours at 240? 9 Elongation Ultimate (%) Heat Aged 670 hours at 240? 275% Elongation Ultimate (%) Heat Aged 670 hours at 240? 275% Angular Tear (kN/m) Heat Aged 670 hours at 240? 23.9 Angular Tear (kN/m) Heat Aged 670 hours at 240? 23.9 Linear Dimension Change (%) -0.45% Linear Dimension Change (%) -0.45% Water Absorption (166 hours @ 70?F (21?C)) (%) 1.70% Water Absorption (166 hours @ 70?F (21?C)) (%) 1.70% Visual Inspection PASS Visual Inspection PASS Weight 185 lbs. Weight 510 lbs. Name Quantity Name Quantity Liner Size 15' x 50' Roll Liner Size 35' x 50' Roll Core Length 7' Core Length 11' Thickness (mil) 45 mil Thickness (mil) 45 mil Tensile Strength (MPa) 9.1 Tensile Strength (MPa) 9.1 350% 350% 350% 350% Angular Tear (kN/m) 27 Angular Tear (kN/m) 27 Tensile Set (%) 7% Tensile Set (%) 7% Brittleness Point Max PASS - No cracks at -49?F (-45?C) Brittleness Point Max PASS - No cracks at -49?F (-45?C) Ozone Resistance No Cracks/PASS Ozone Resistance No Cracks/PASS Tensile Strength (MPa) Heat Aged 670 hours at 240? 9 Tensile Strength (MPa) Heat Aged 670 hours at 240? 9 Elongation Ultimate (%) Heat Aged 670 hours at 240? 275% Elongation Ultimate (%) Heat Aged 670 hours at 240? 275% Angular Tear (kN/m) Heat Aged 670 hours at 240? 23.9 Angular Tear (kN/m) Heat Aged 670 hours at 240? 23.9 Linear Dimension Change (%) -0.45% Linear Dimension Change (%) -0.45% Water Absorption (166 hours @ 70?F (21?C)) (%) 1.70% Water Absorption (166 hours @ 70?F (21?C)) (%) 1.70% Visual Inspection PASS Visual Inspection PASS Weight 225 lbs. Weight 600 lbs. Name Quantity Name Quantity Liner Size 20' x 50' Roll Liner Size 40' x 50' Roll Core Length 7' Core Length 11' Thickness (mil) 45 mil Thickness (mil) 45 mil Tensile Strength (MPa) 9.1 Tensile Strength (MPa) 9.1 350% 350% 350% 350% Angular Tear (kN/m) 27 Angular Tear (kN/m) 27 Tensile Set (%) 7% Tensile Set (%) 7% Brittleness Point Max PASS - No cracks at -49?F (-45?C) Brittleness Point Max PASS - No cracks at -49°F (-45°C) Ozone Resistance No Cracks/PASS Ozone Resistance No Cracks/PASS Tensile Strength (MPa) Heat Aged 670 hours at 240? 9 Tensile Strength (MPa) Heat Aged 670 hours at 240° 9 Elongation Ultimate (%) Heat Aged 670 hours at 240? 275% Elongation Ultimate (%) Heat Aged 670 hours at 240° 275% Angular Tear (kN/m) Heat Aged 670 hours at 240? 23.9 Angular Tear (kN/m) Heat Aged 670 hours at 240° 23.9 Linear Dimension Change (%) -0.45% Linear Dimension Change (%) -0.45% Water Absorption (166 hours @ 70?F (21?C)) (%) 1.70% Water Absorption (166 hours @ 70°F (21°C)) (%) 1.70% Visual Inspection PASS Visual Inspection PASS Weight 350 lbs. Weight 685 lbs. Name Quantity Name Quantity Liner Size 25' x 50' Roll Liner Size 50' x 50' Roll Core Length 7' Core Length 11' Thickness (mil) 45 mil Thickness (mil) 45 mil Tensile Strength (MPa) 9.1 Tensile Strength (MPa) 9.1 350% 350% 350% 350% Angular Tear (kN/m) 27 Angular Tear (kN/m) 27 Tensile Set (%) 7% Tensile Set (%) 7% Brittleness Point Max PASS - No cracks at -49?F (-45?C) Brittleness Point Max PASS - No cracks at -49°F (-45°C) Ozone Resistance No Cracks/PASS Ozone Resistance No Cracks/PASS Tensile Strength (MPa) Heat Aged 670 hours at 240? 9 Tensile Strength (MPa) Heat Aged 670 hours at 240° 9 Elongation Ultimate (%) Heat Aged 670 hours at 240? 275% Elongation Ultimate (%) Heat Aged 670 hours at 240° 275% Angular Tear (kN/m) Heat Aged 670 hours at 240? 23.9 Angular Tear (kN/m) Heat Aged 670 hours at 240° 23.9 Linear Dimension Change (%) -0.45% Linear Dimension Change (%) -0.45% Water Absorption (166 hours @ 70?F (21?C)) (%) 1.70% Water Absorption (166 hours @ 70°F (21°C)) (%) 1.70% Visual Inspection PASS Visual Inspection PASS Weight 430 lbs. Weight 850 lbs.

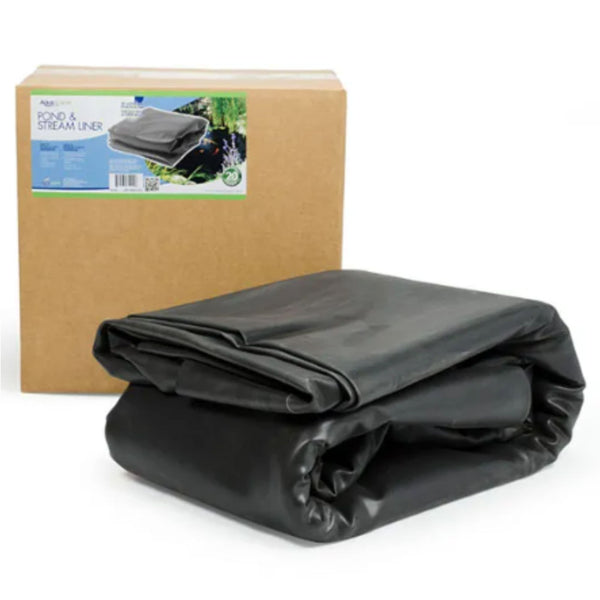

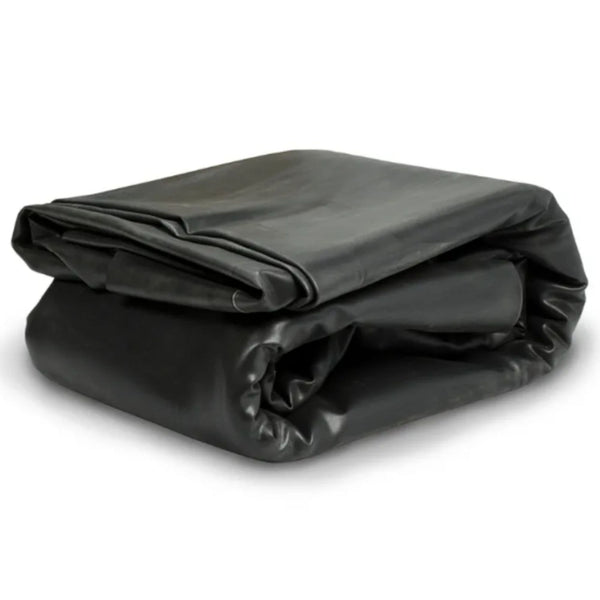

Aquascape 45 mil fish-safe EPDM pond liner leads the industry in quality and reliability. The 45 mil fish-safe EPDM Pond Liner acts as a membrane for retaining water in ponds, Pondless Waterfalls, and other water features.Backed by an industry leading 20-year guarantee, Aquascape is the choice of discriminating pond professionals. Safe for fish and plants Superior elongation and lay-flat characteristics Exceptional resistance to solar UV, ozone and oxidation Ease of installation with no special tools required Durability - 45 mil thickness 20-year guarantee Sizing Suggestions: Calculation: length - add overall length plus twice the maximum depth width - add the overall width plus twice the maximum depth It's recommended to factor in an additional 2' of overlap for around the pond edging. Calculation example:A pond 8ft. Wide x 12 ft. Long and 4 1/2 ft. deep will need a liner 20x 25. Width: 8 + 4.5 + 4.5 + 2 =19, rounded up to 20 Length: 12 + 4.5 + 4.5 + 2 =23, rounded up to 25 For boxed liner, we recommend you round UP to the nearest available size. It's never fun to be short and have to try to splice in extra liner. Plus any excess can easily be trimmed or tucked underneath on the edges or used for extra cushioning underneath rocks. We also can do custom cut liners- call for quote (833)-936-3231
