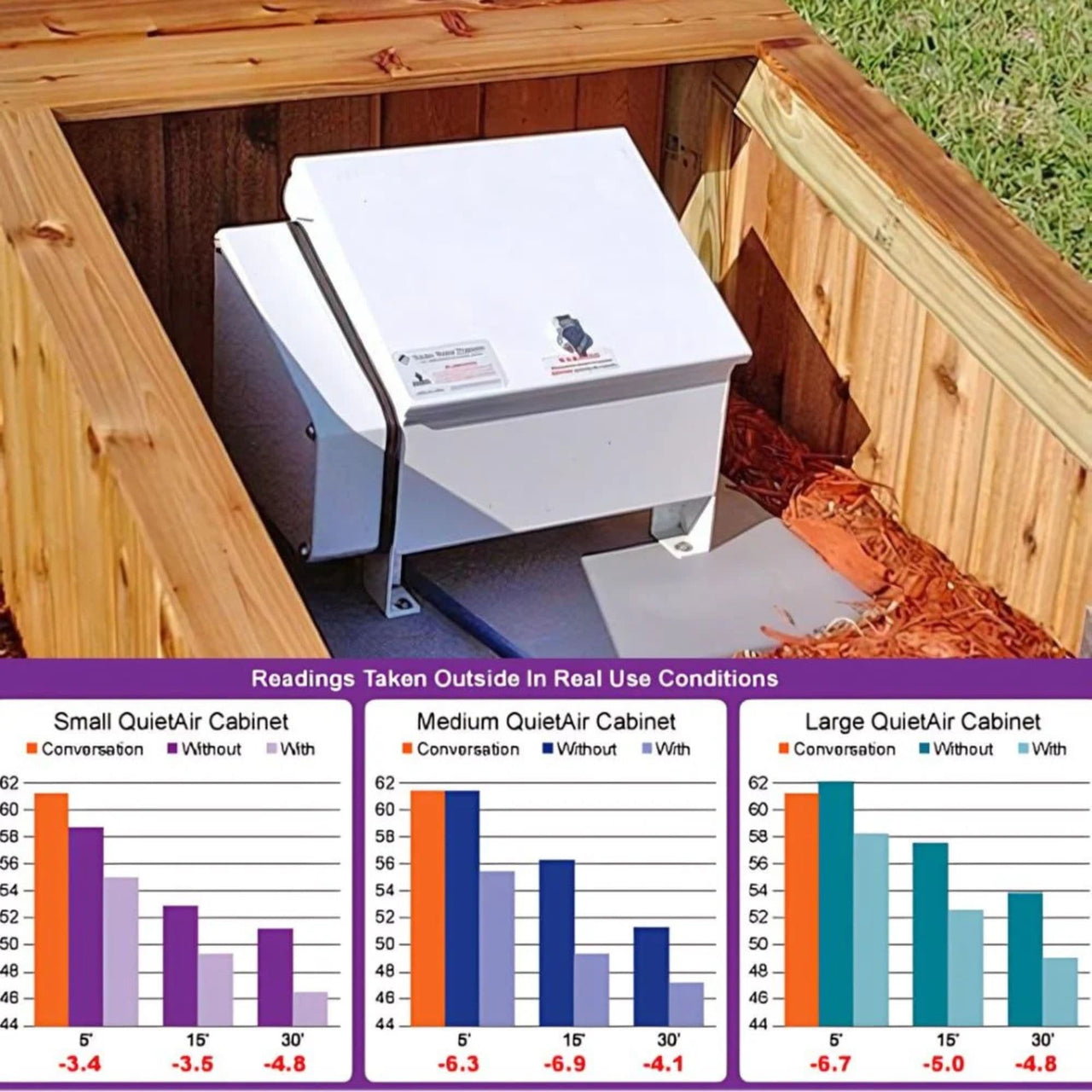

Sound Reduction Kit

Weighted Tubing

Free Shipping On All Orders

Authorized Dealer

Price Match Guarantee

Description Shipping

Vertex Air 5 XL2 Pond Aeration System

The Vertex Air 5 XL2 Aeration system is best fit for ponds 4-7 surface acres depending on the shape, slope, and oxygen demand. This system is available in 115 or 230 volts.

The Air 5 XL2 Aeration system is super-efficient and safe. The rising force of millions of bubbles transports bottom water to the surface, allowing oxygen to be absorbed and circulating the entire water column.

  • Circulates up to 21,000 GPM (gallons per minute)
  • High pumping rate easily penetrates stratification layers Š
  • Promotes beneficial bacteria growth Š
  • Prevents low oxygen fish kills Š
  • Reduces nutrient levels and associated algae growth Š
  • Oxidizes/reduces bottom muck Š
  • Expands oxygenated habitat for improved fisheries Š
  • Reduces aquatic midge and mosquito insect hatches Š
  • Eliminates foul odors from undesirable dissolved gases

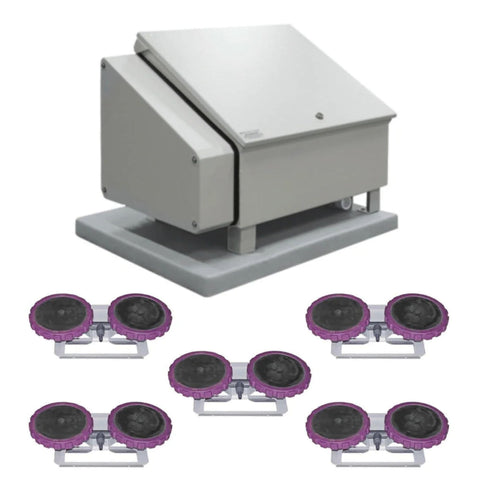

Air 5 XL2 System Includes:

5- XL2 Airstations
1- 1 HP Brookwood Compressor

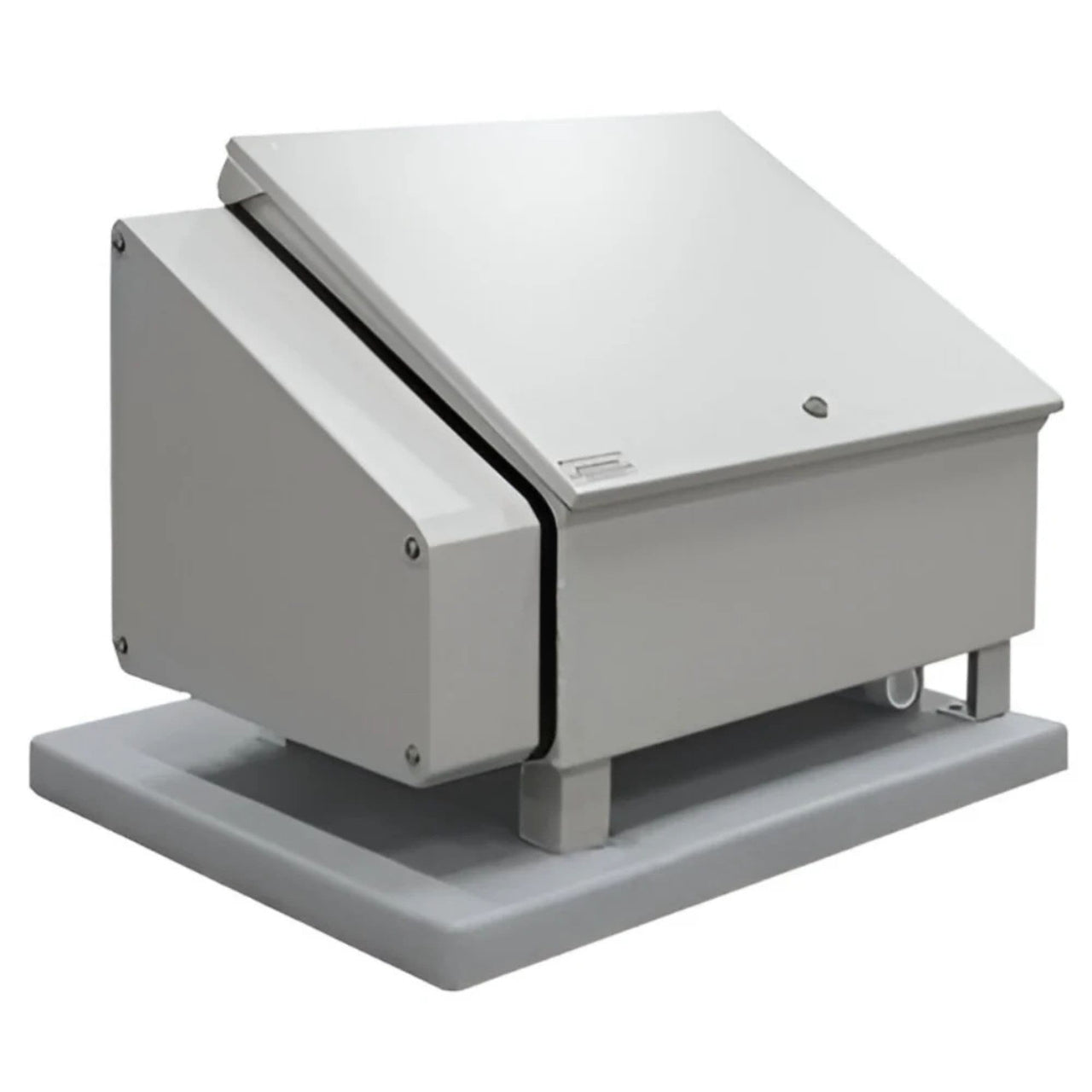

1- QuietAir Cabinet with cooling fan

Technical Specifications


3-year Vertex warranty (excluding wearable parts: air filters and compressor maintenance kits)

  • UL, 115v or 230v, 4 Cycle, 8.6 CFM Š
  • Built for continuous 24/7 operation Š
  • Upgraded rotors, stators, valve plates, bearings and capacitors Š
  • Vertex SafeStart™ Technology for auto restart under maximum rated pressure without motor damage Š
  • Thermal overload protection Š
  • Oil-free, and require no lubrication Š
  • 2-3 year extended duty cycle between scheduled maintenance


Limited lifetime warranty against rust

  • Powder coated aluminum for a durable attractive finish Š
  • Equipped with a stamped ventilation grill Š
  • High capacity 140 CFM fan Š
  • Class "A" GFCI Protection on compressor and fan circuits Š
  • Quick disconnect switch included Š
  • Easy access design with cam lock Š
  • Easy plug-in connection to waterside electrical service Š
  • Heavy duty, light weight mounting pad included Š
  • Optional muffler box and additional insulation


15-year Vertex warranty

  • Available in 50', 100', 250' and 500' spools
  • Self-weighted for easy installation
  • Flexible PVC composite direct burial and submersible tubing
  • Use with standard PVC solvent weld cement and insert fittings
  • High wall thickness for durability and protection from punctures
  • Remains flexible in cold temperatures.
  • Over-sized I.D. for high flow


5-year "No Questions" warranty

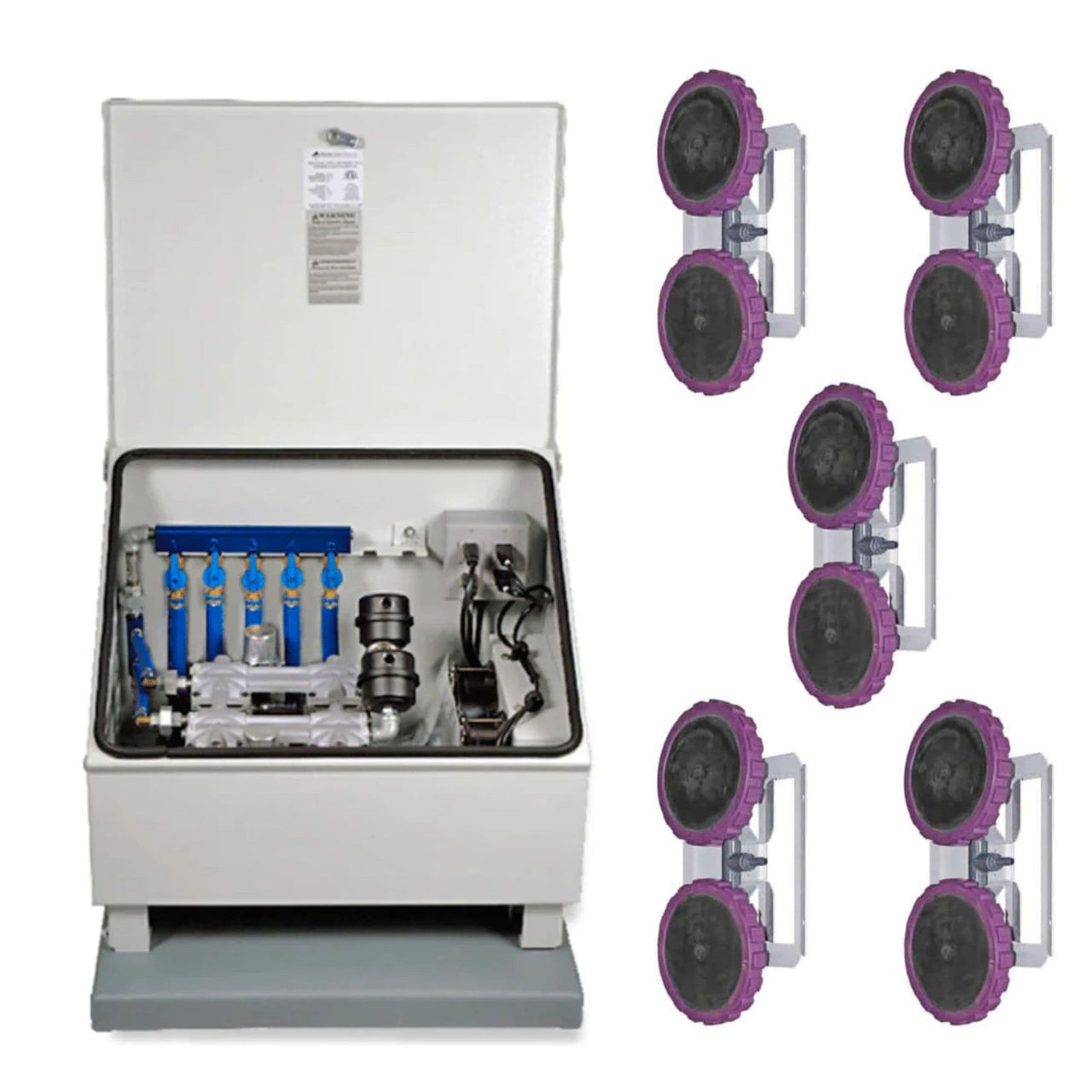

  • Includes five XL2 self-cleaning, sinking airstations (shown in picture)
  • Made of powder-coated stainless steel
  • Designed to prevent settling into soft bottom sediments.
  • Adjustable diffuser risers accommodate any site requirements

Vertex Air 5 XL2 Aeration System Product Sheet

  • FREE Shipping via FEDEX, LTL Ground, & UPS. Ships in 2-3 Business Days.


  • Ships Only to Lower 48 States of the United States
